AF156

antibody from R&D Systems

Targeting: CD274 B7-H, B7-H1, B7H1, PD-L1, PDCD1LG1, PDL1

Western blot (Supportive data in Antibodypedia)

ELISA (Data presented on provider website)

Immunohistochemistry (Supportive data in Antibodypedia)

Blocking/Neutralizing (Supportive data in Antibodypedia)

Antibody Data

Product number

AF156

Provider

R&D Systems

Product name

Human PD-L1/B7-H1 Antibody

Antibody type

Polyclonal

Description

Antigen Affinity-purified. Detects human PD-L1/B7-H1 in direct ELISAs and Western blots. In direct ELISAs, less than 15% cross-reactivity with recombinant mouse PD-L1/B7-H1 is observed and less than 1% cross-reactivity with recombinant human PD-L2 is observed.

Reactivity

Human

Host

Goat

Conjugate

Unconjugated

Antigen sequence

Q9NZQ7


Isotype

IgG

Vial size

100 ug

Concentration

LYOPH

Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles. 12 months from date of receipt, -20 to -70 °C as supplied. 1 month, 2 to 8 °C under sterile conditions after reconstitution. 6 months, -20 to -70 °C under sterile conditions after reconstitution.

References

Submitted references

Restoration of T Cell function in multi-drug resistant bacterial sepsis after interleukin-7, anti-PD-L1, and OX-40 administration.

Thampy LK, Remy KE, Walton AH, Hong Z, Liu K, Liu R, Yi V, Burnham CD, Hotchkiss RS
PloS one 2018;13(6):e0199497

---

Immunological Properties of Human Embryonic Stem Cell-Derived Retinal Pigment Epithelial Cells.

Idelson M, Alper R, Obolensky A, Yachimovich-Cohen N, Rachmilewitz J, Ejzenberg A, Beider E, Banin E, Reubinoff B
Stem cell reports 2018 Sep 11;11(3):681-695

---

Hepatitis C Virus Induces MDSCs-Like Monocytes through TLR2/PI3K/AKT/STAT3 Signaling.

Zhai N, Li H, Song H, Yang Y, Cui A, Li T, Niu J, Crispe IN, Su L, Tu Z
PloS one 2017;12(1):e0170516

---

Mesenchymal Stromal Cell Secretion of Programmed Death-1 Ligands Regulates T Cell Mediated Immunosuppression.

Davies LC, Heldring N, Kadri N, Le Blanc K
Stem cells (Dayton, Ohio) 2017 Mar;35(3):766-776

---

Blocking the PD-1/PD-L1 pathway in glioma: a potential new treatment strategy.

Xue S, Hu M, Iyer V, Yu J
Journal of hematology & oncology 2017 Apr 7;10(1):81

---

Soluble co-signaling molecules predict long-term graft outcome in kidney-transplanted patients.

Melendreras SG, Martínez-Camblor P, Menéndez A, Bravo-Mendoza C, González-Vidal A, Coto E, Díaz-Corte C, Ruiz-Ortega M, López-Larrea C, Suárez-Álvarez B
PloS one 2014;9(12):e113396

---

12-O-tetradecanoyl phorbol 13-acetate induces the expression of B7-DC, -H1, -H2, and -H3 in K562 cells.

Jang BC, Park YK, Choi IH, Kim SP, Hwang JB, Baek WK, Suh MH, Mun KC, Suh SI
International journal of oncology 2007 Dec;31(6):1439-47

---

Aberrant regulation of synovial T cell activation by soluble costimulatory molecules in rheumatoid arthritis.

Wan B, Nie H, Liu A, Feng G, He D, Xu R, Zhang Q, Dong C, Zhang JZ
Journal of immunology (Baltimore, Md. : 1950) 2006 Dec 15;177(12):8844-50

---

Aberrant regulation of synovial T cell activation by soluble costimulatory molecules in rheumatoid arthritis.

Wan B, Nie H, Liu A, Feng G, He D, Xu R, Zhang Q, Dong C, Zhang JZ
Journal of immunology (Baltimore, Md. : 1950) 2006 Dec 15;177(12):8844-50

Western blot

Supportive validation

Submitted by

R&D Systems (provider)

Main image

Experimental details

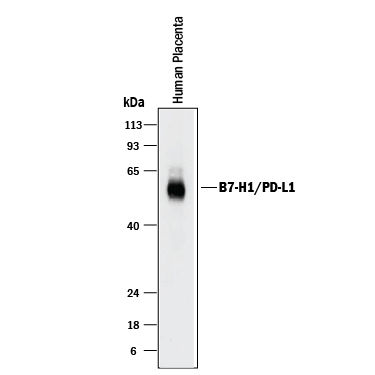

Detection of Human PD-L1/B7-H1 by Western Blot. Western blot shows lysates of human placenta tissue. PVDF membrane was probed with 2 µg/mL of Goat Anti-Human PD-L1/B7-H1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF156) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). A specific band was detected for PD-L1/B7-H1 at approximately 50-55 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

Immunohistochemistry

Supportive validation

Submitted by

R&D Systems (provider)

Main image

Experimental details

PD-L1/B7-H1 in Human Colon and Colon Cancer Tissue. PD-L1/B7-H1 was detected in immersion fixed paraffin-embedded sections of normal human colon (left panel) and human colon cancer tissue (right panel) using Goat Anti-Human PD-L1/B7-H1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF156) at 5 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Goat HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS008) and counterstained with hematoxylin (blue). Specific staining was localized to cell membranes and cytoplasm. View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.

Blocking/Neutralizing

Supportive validation

Submitted by

R&D Systems (provider)

Main image

Experimental details

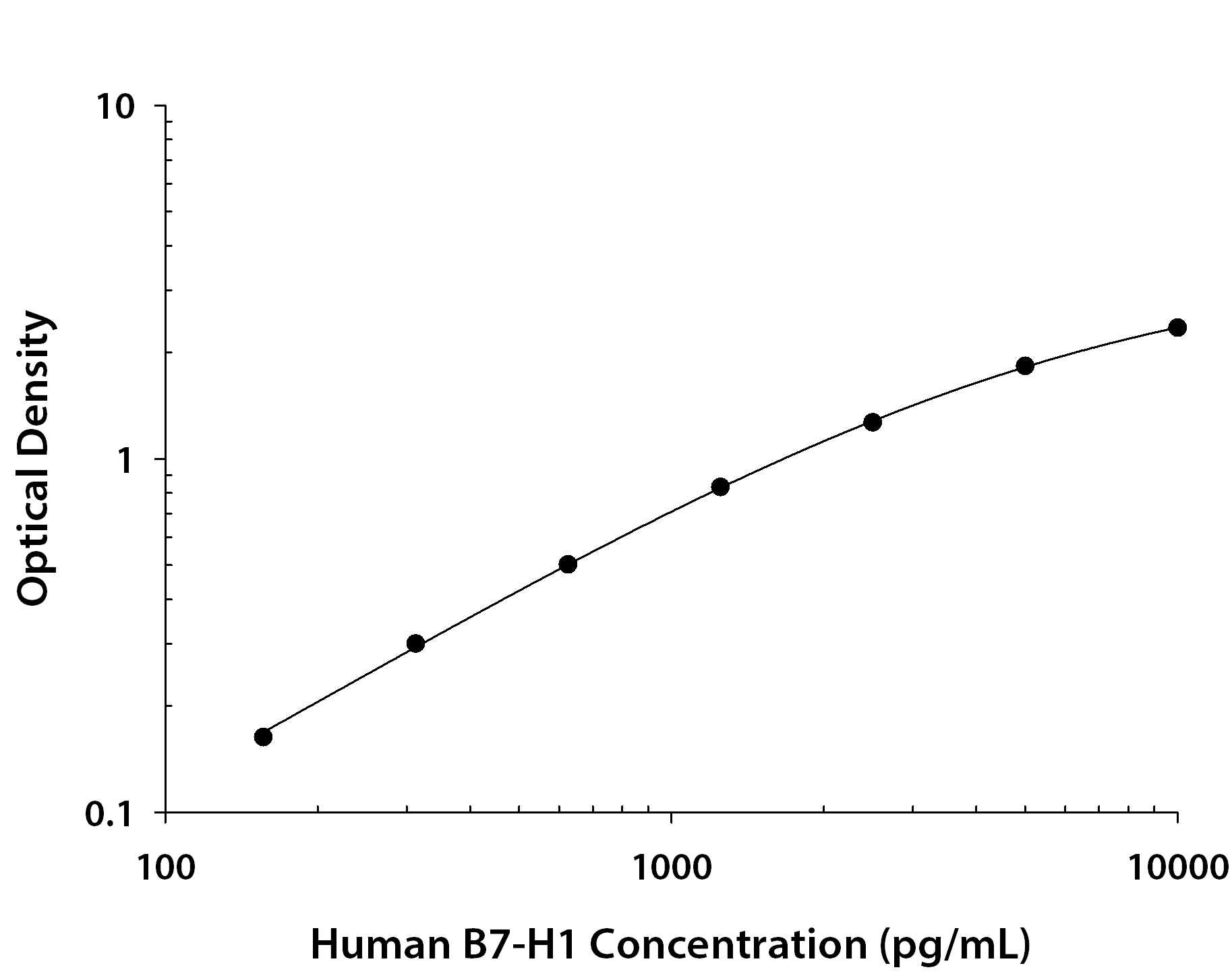

Human PD-L1/B7-H1 ELISA Standard Curve. Recombinant Human PD-L1/B7-H1 protein was serially diluted 2-fold and captured by Mouse Anti-Human PD-L1/B7-H1 Monoclonal Antibody (Catalog # MAB1561R) coated on a Clear Polystyrene Microplate (Catalog # DY990). Goat Anti-Human PD-L1/B7-H1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF156) was biotinylated and incubated with the protein captured on the plate. Detection of the standard curve was achieved by incubating Streptavidin-HRP (Catalog # DY998) followed by Substrate Solution (Catalog # DY999) and stopping the enzymatic reaction with Stop Solution (Catalog # DY994).
