66301-1-IG

antibody from Invitrogen Antibodies

Targeting: LAMP2 CD107b

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunohistochemistry (Supportive data in Antibodypedia)

Antibody Data

Product number

66301-1-IG

Provider

Invitrogen Antibodies

Product name

LAMP2 Monoclonal Antibody (2D3B9)

Antibody type

Monoclonal

Antigen

Other

Reactivity

Human, Mouse, Porcine

Host

Mouse

Isotype

IgA

Antibody clone number

2D3B9

Vial size

150 µL

Concentration

0.7 mg/mL

Storage

-20°C

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

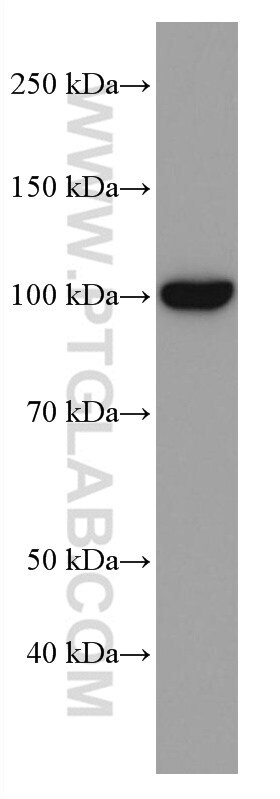

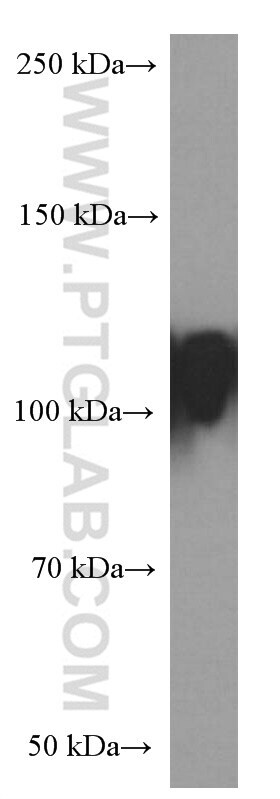

Mouse liver tissue were subjected to SDS PAGE followed by western blot with 66301-1-Ig (LAMP2 antibody) at dilution of 1:4000 incubated at room temperature for 1.5 hours.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

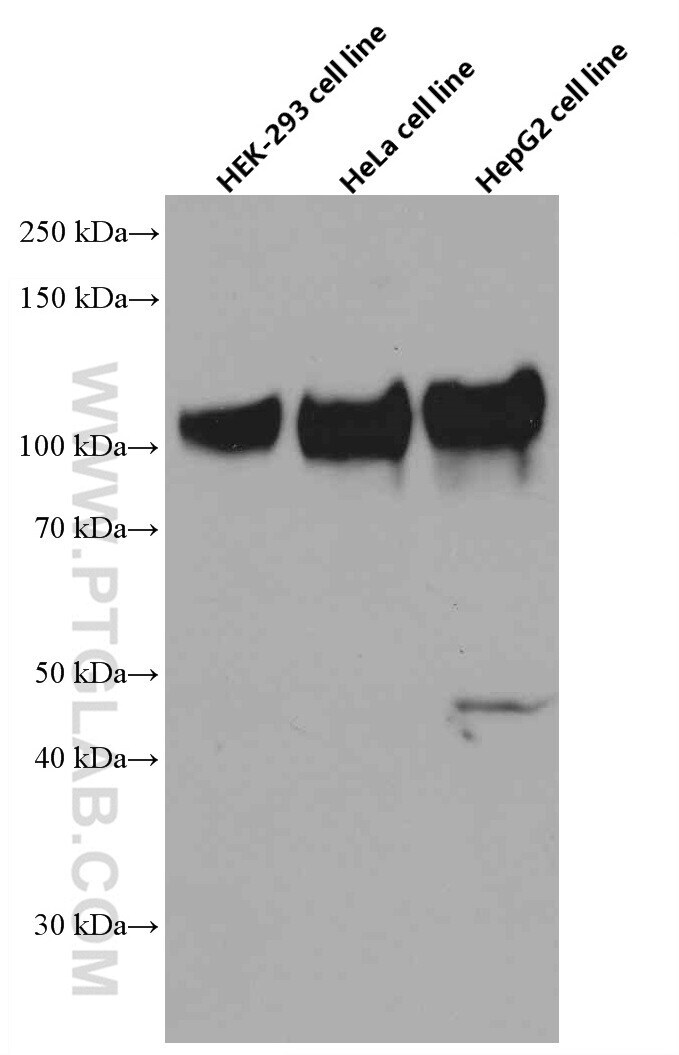

Various lysates were subjected to SDS PAGE followed by western blot with 66301-1-IG (LAMP2 antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

HUVEC cells were subjected to SDS PAGE followed by western blot with 66301-1-Ig (LAMP2 Antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescent analysis of (-20°C Ethanol) fixed HeLa cells using (Product # 66301-1-IG) (LAMP2 antibody), at dilution of 1:200 and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L), phalloidin stains F-actin (red).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescent analysis of ( -20°C Ethanol) fixed HepG2 cells using 66301-1-IG (LAMP2 antibody) at dilution of 1:100 and Alexa Fluor 488-Conjugated AffiniPure Goat Anti-Mouse IGG (H+L).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescent analysis of (-20°C Ethanol) fixed HepG2 cells using 66301-1-Ig (LAMP2 antibody) at dilution of 1:100 and Alexa Fluor 488-conjugated AffiniPure Goat Anti-Mouse IgG (H+L).

Immunohistochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human lung cancer tissue slide using 66301-1-Ig (LAMP2 Antibody) at dilution of 1:200 (under 10x lens). heat mediated antigen retrieved with Tris-EDTA buffer (pH 9).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human lung cancer tissue slide using 66301-1-Ig (LAMP2 Antibody) at dilution of 1:200 (under 40x lens). heat mediated antigen retrieved with Tris-EDTA buffer (pH 9).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human kidney tissue slide using 66301-1-Ig (LAMP2 Antibody) at dilution of 1:200 (under 10x lens).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human kidney tissue slide using 66301-1-Ig (LAMP2 Antibody) at dilution of 1:200 (under 40x lens).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human liver tissue slide using 66301-1-IG ( LAMP2 Antibody) at dilution of 1:200 (under 10x lens).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human liver tissue slide using 66301-1-IG ( LAMP2 Antibody) at dilution of 1:200 (under 40x lens).
