- 720146 - Invitrogen Antibodies RNF20 antibody

No submitted references: Submit reference

No comments: Submit comment

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Western blot analysis was performed on whole cell extracts (30 µg lysate) of COS-7 (Lane 1), HeLa (Lane 2), Jurkat (Lane3) and K-562 (Lane 4). The blots were probed with Anti- RNF20 Rabbit Polyclonal Antibody (Product # 720146, 0.5-1 µg/mL) and detected by chemiluminescence using Goat anti-Rabbit IgG (H+L) Superclonal Secondary Antibody, HRP conjugate (Product # A27036, 0.4 µg/mL, 1:2500 dilution). A 120 kDa band and an additional isoform at 72 kDa corresponding to RNF-20 was observed in cell lines tested. Known quantity of protein samples were electrophoresed using Novex® NuPAGE® 4-12% Bis-Tris gel (Product # NP0321BOX), XCell SureLock Electrophoresis System (Product # EI0002) and Novex® Sharp Pre-Stained Protein Standard (Product # LC5800). Resolved proteins were then transferred onto a nitrocellulose membrane with iBlot® Dry Blotting System (Product # IB21001). The membrane was probed with the relevant primary and secondary Antibody following blocking with 5% skimmed milk. Chemiluminescent detection was performed using Pierce™ ECL Western Blotting Substrate (Product # 32106).

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Western blot analysis was performed on whole cell extracts (30 µg lysate) of COS-7 (Lane 1), HeLa (Lane 2), Jurkat (Lane3) and K-562 (Lane 4). The blots were probed with Anti- RNF20 Rabbit Polyclonal Antibody (Product # 720146, 0.5-1 µg/mL) and detected by chemiluminescence using Goat anti-Rabbit IgG (H+L) Superclonal Secondary Antibody, HRP conjugate (Product # A27036, 0.4 µg/mL, 1:2500 dilution). A 120 kDa band and an additional isoform at 72 kDa corresponding to RNF-20 was observed in cell lines tested. Known quantity of protein samples were electrophoresed using Novex® NuPAGE® 4-12% Bis-Tris gel (Product # NP0321BOX), XCell SureLock Electrophoresis System (Product # EI0002) and Novex® Sharp Pre-Stained Protein Standard (Product # LC5800). Resolved proteins were then transferred onto a nitrocellulose membrane with iBlot® Dry Blotting System (Product # IB21001). The membrane was probed with the relevant primary and secondary Antibody following blocking with 5% skimmed milk. Chemiluminescent detection was performed using Pierce™ ECL Western Blotting Substrate (Product # 32106).

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Immunofluorescence was performed on fixed and permeabilized HeLa cells for detection of RNF20 using Anti-RNF20 Rabbit Polyclonal Antibody (Product # 720146, 1 µg/mL), alpha-Tubulin was detected using Anti-alpha Tubulin Monoclonal Antibody (Product # 32-2500, 1 µg/mL) and labeled with Goat anti-Rabbit IgG (H+L) Superclonal Secondary Antibody, Alexa Fluor® 488 conjugate (Product # A27034, 1:2000), Goat anti-Mouse IgG Secondary Antibody, Alexa Fluor®594conjugate (Product # A-11032, 1:400) respectively. Panel a) shows representative cells that were stained for detection and localization of RNF20 protein (green), Panel b) is stained for nuclei (blue) using SlowFade® Gold Antifade Mountant with DAPI (Product # S36938,). Panel c) represents cytoskeletal alpha-tubulin staining (red). Panel d) is a composite image of Panels a, b and c clearly demonstrating Nuclear localization of RNF-20. Panel e) represents control cells with no primary Antibody to assess background.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Immunohistochemistry analysis of RNF20 showing staining in nucleus of paraffin-embedded human colon tissue (right) compared to a negative control without primary antibody (left). To expose target proteins, antigen retrieval was performed using 10mM sodium citrate (pH 6.0), microwaved for 8-15 min. Following antigen retrieval, tissues were blocked in 3% H2O2-methanol for 15 min at room temperature, washed with ddH2O and PBS, and then probed with a RNF20 Rabbit Polyclonal Antibody (Product # 720146) diluted in 3% BSA-PBS at a dilution of 1:20 for 1 hour at 37ºC in a humidified chamber. Tissues were washed extensively in PBST and detection was performed using an HRP-conjugated secondary antibody followed by colorimetric detection using a DAB kit. Tissues were counterstained with hematoxylin and dehydrated with ethanol and xylene to prep for mounting.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image

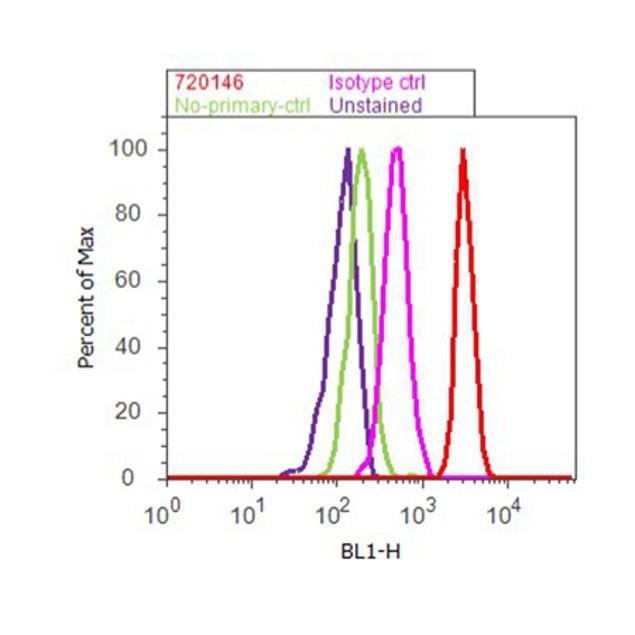

Experimental details: Flow Cytometry analysis of RNF20 was performed on HeLa cells labeled with Anti-RNF20 Rabbit Polyclonal Antibody (Product# 720146, 2-4 ug/ 1M cells) or with Rabbit isotype control and detected with Goat anti-Rabbit IgG (H+L) Superclonalª Secondary Antibody, (Alexa Fluor¨ 488 conjugate, Product # A27034, 0.4 ug/ml, 1:2500) as represented by the red and pink histograms respectively. The purple histogram represents unstained control cells and the green histogram represents no-primary-Antibody control. A representative of 10,000 cells were acquired and analyzed for each sample using an Attune¨ Acoustic Focusing Cytometer (4468770).

720146
