- Product number
- A07981-1 - Provider product page
- Provider
- Boster Biological Technology
- Product name
- Anti-Hsp20/HSPB6 Antibody Picoband™
- Antibody type
- Polyclonal
- Description
- Polyclonal antibody for HSP20/HSPB6 detection. Host: Rabbit.Size: 100ug/vial. Tested applications: WB, IHC-P, ICC/IF. Reactive species: Human;Mouse;Rat. HSP20/HSPB6 information: Molecular Weight: 17136 MW; Subcellular Localization: Cytoplasm . Nucleus . Translocates to nuclear foci during heat shock.
- Reactivity
- Human, Mouse, Rat
- Host
- Rabbit
- Vial size
- 100ug/vial
- Concentration
- Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
- Storage
- At -20°C for one year. After reconstitution, at 4°C for one month. It can also be aliquoted and stored frozen at -20°C for a longer time. Avoid repeated freezing and thawing.
- Handling
- Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
No comments: Submit comment
Supportive validation
- Submitted by
- Boster Biological Technology (provider)
- Main image
- Experimental details

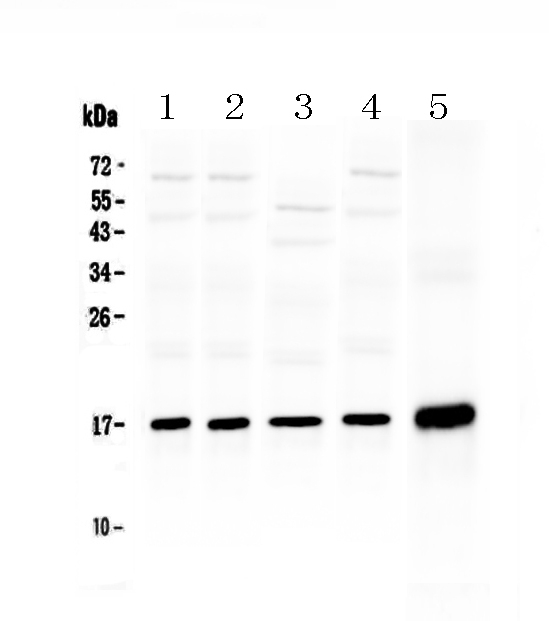

- Western blot analysis of Hsp20 using anti-Hsp20 antibody (A07981-1). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions. Lane 1: rat cardiac muscle tissue lysate,Lane 2: rat skeletal muscle tissue lysate,Lane 3: rat testis tissue lysate,Lane 4: mouse testis tissue lysate,Lane 5: human A431 whole Cell lysate.After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-Hsp20 antigen affinity purified polyclonal antibody (Catalog # A07981-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for Hsp20 at approximately 17KD. The expected band size for Hsp20 is at 17KD.
- Additional image
