PA5-118270

antibody from Invitrogen Antibodies

Targeting: SMIM20 C4orf52, MITRAC7, PNX

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunoprecipitation (Data presented on provider website)

Immunohistochemistry (Supportive data in Antibodypedia)

Other assay (Supportive data in Antibodypedia)

Antibody Data

Product number

PA5-118270

Provider

Invitrogen Antibodies

Product name

SMIM20 Polyclonal Antibody

Antibody type

Polyclonal

Antigen

Other

Description

Specificity: Human SMIM20

Reactivity

Human

Host

Rabbit

Isotype

IgG

Vial size

100 µL

Storage

-20° C, Avoid Freeze/Thaw Cycles

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Western Blot using SMIM20 Polyclonal Antibody (Product # PA5-118270) at 1:500 dilution. Lane A: K562 Whole Cell Lysate, Lane B: U87MG Whole Cell Lysate, Lane C: SHSY5Y Whole Cell Lysate. Lysates/proteins at 30 μg per lane. Secondary antibody: Goat Anti-Rabbit IgG (H+L)/HRP at 1:10,000 dilution. Developed using the ECL technique. Performed under reducing conditions. Predicted band size: 7 kDa. Observed band size: 10 kDa. (We are unsure of the identity of these extra bands).

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescence staining of C4orf52 in U251MG cells. Cells were fixed with 4% PFA, permeabilzed with 0.5% Triton X-100 in PBS, blocked with 10% serum, and incubated with SMIM20 Polyclonal Antibody (Product # PA5-118270, 1:200) at 4°C overnight. Then cells were stained with the Alexa Fluor®488-conjugated Goat Anti-rabbit IgG secondary antibody (green) and counterstained with DAPI (blue). Positive staining was localized to nucleus and cytoplasm.

Immunohistochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemical staining of human SMIM20 in human kidney with SMIM20 Polyclonal Antibody (Product # PA5-118270, 1:100 dilution, formalin-fixed paraffin embedded sections).

Other assay

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

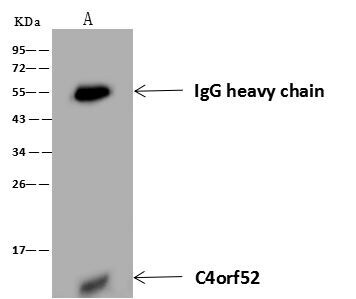

SMIM20 Immunoprecipitation using: Lane A: 0.5 mg SHSY5Y Whole Cell Lysate 4 µL with SMIM20 Polyclonal Antibody (Product # PA5-118270) and 60 μg of Immunomagnetic beads Protein A/G. Primary antibody: SMIM20 Polyclonal Antibody, at 1:100 dilution. Secondary antibody: Goat Anti-Rabbit IgG (H+L) /HRP at 1:10,000 dilution. Developed using the ECL technique. Performed under reducing conditions. Predicted band size: 7 kDa. Observed band size: 10 kDa.
