MA5-27648
antibody from Invitrogen Antibodies
Targeting: FIG4
ALS11, CMT4J, dJ249I4.1, hSac3, KIAA0274, SAC3
Antibody data
- Antibody Data
- Antigen structure
- References [0]
- Comments [0]
- Validations
- Western blot [1]
- Other assay [1]
Submit
Validation data
Reference
Comment
Report error
- Product number
- MA5-27648 - Provider product page
- Provider
- Invitrogen Antibodies
- Product name
- Anti-FIG4 Monoclonal Antibody (S202-7)
- Antibody type
- Monoclonal
- Antigen
- Other
- Reactivity
- Human, Mouse, Rat
- Host
- Mouse
- Isotype
- IgG
- Antibody clone number
- S202-7
- Vial size
- 100 µg
- Concentration
- 1 mg/ml
- Storage
- -20°C
No comments: Submit comment
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

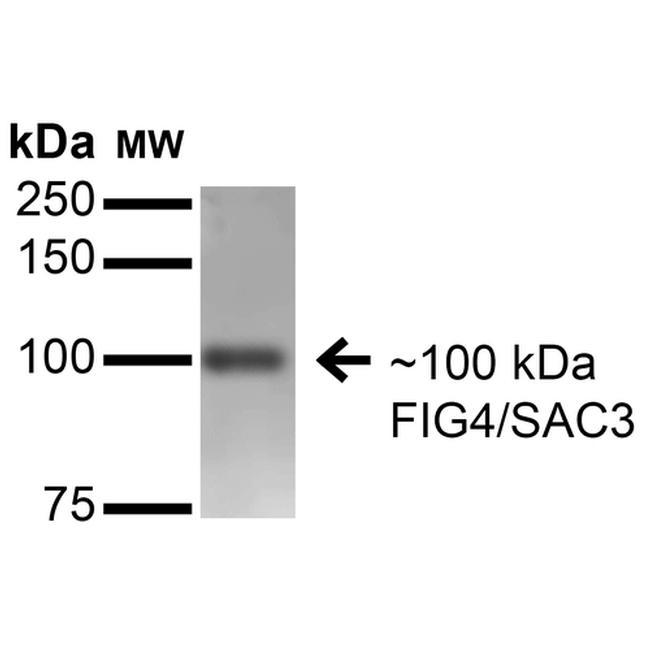

- Western blot analysis of FIG4 in mouse brain membrane with 15 µg of sample. The sample was blocked with 2% BSA and 2% skim milk in TBST, incubated with FIG4 monoclonal antibody (Product # MA5-27648) using a dilution of 1:200 (16 hours at RT), and followed by Goat Anti-Mouse (1 hour at RT) at a dilution of 1:1000 and ECL development (6 min at RT). Samples were arranged as follows: Lane 1: Molecular Weight Ladder, Lane 2: Mouse Brain membrane.
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

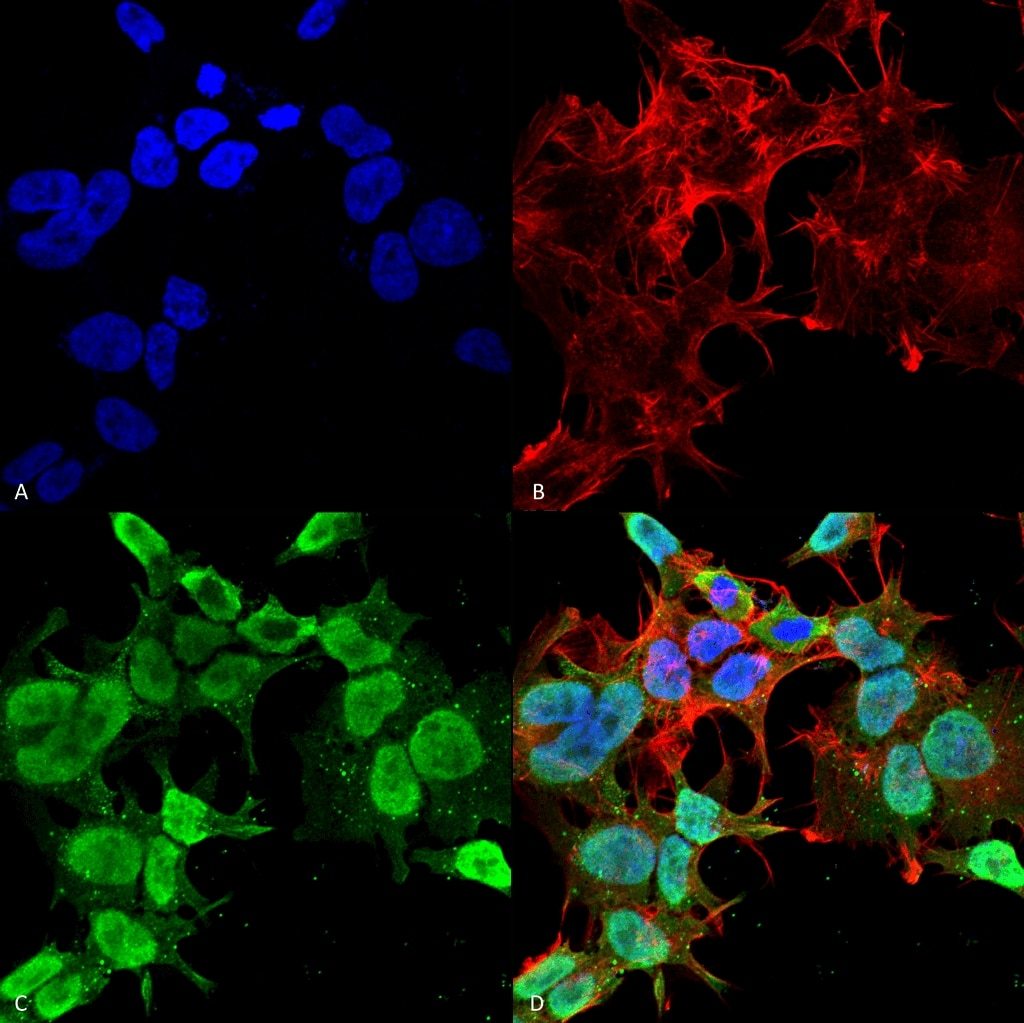

- Immunofluorescent analysis of FIG4 in human neuroblastoma cell line (SK-N-BE). Sample was fixed with 4% formaldehyde (15 min at RT), incubated with FIG4 monoclonal antibody (Product # MA5-27648) using a dilution of 1:100 (1 hour at RT), and followed by Goat Anti-Mouse 488, Phalloidin Texas Red and DAPI secondary antibody at a dilution of 1:100, 1:1000 (60 min at RT) and 1:5000 (5 min at RT). Images are shown as follows: (A) DAPI (blue) nuclear stain, B) Phalloidin Texas Red F-Actin stain, C) FIG4/SAC3 Antibody, D) Merged image. Magnification: 60x.
