Validation data
Reference
Comment
Report error
- Product number
- 22624-1-AP - Provider product page
- Provider
- Invitrogen Antibodies
- Product name
- PDE5A Polyclonal Antibody
- Antibody type
- Polyclonal
- Antigen
- Other
- Description
- Immunogen sequence: ETSLLENKR NQVLLDLASL IFEEQQSLEV ILKKIAATII SFMQVQKCTI FIVDEDCSDS FSSVFHMECE ELEKSSDTLT REHDANKINY MYAQYVKNTM EPLNIPDVSK DKRFPWTTEN TGNVNQQCIR SLLCTPIKNG KKNKVIGVCQ LVNKMEENTG KVK (321-482 aa encoded by BC126233)
- Reactivity
- Human, Mouse
- Host
- Rabbit
- Isotype
- IgG
- Vial size
- 150 µL
- Concentration
- 0.23 mg/mL
- Storage
- -20°C
No comments: Submit comment
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

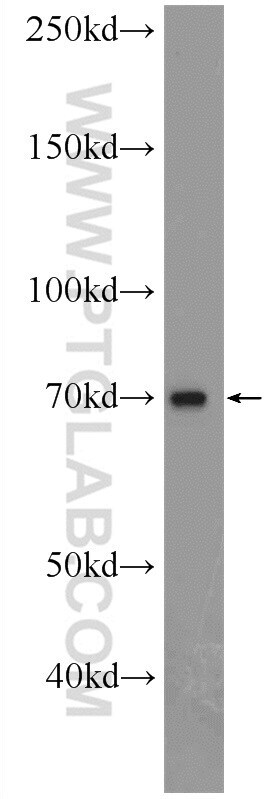

- SKOV-3 cells were subjected to SDS PAGE followed by western blot with 22624-1-AP ( PDE5A Antibody) at dilution of 1:300 incubated at room temperature for 1.5 hours.
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

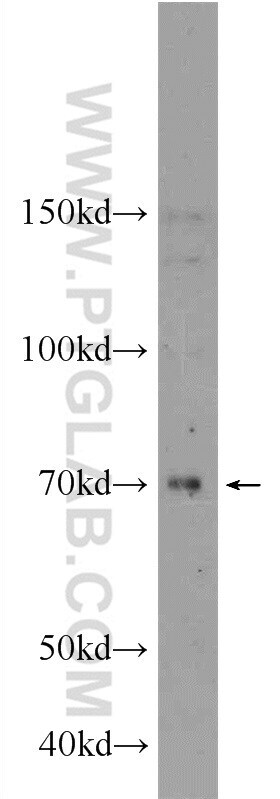

- SKOV-3 cells were subjected to SDS PAGE followed by western blot with 22624-1-AP (PDE5A antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

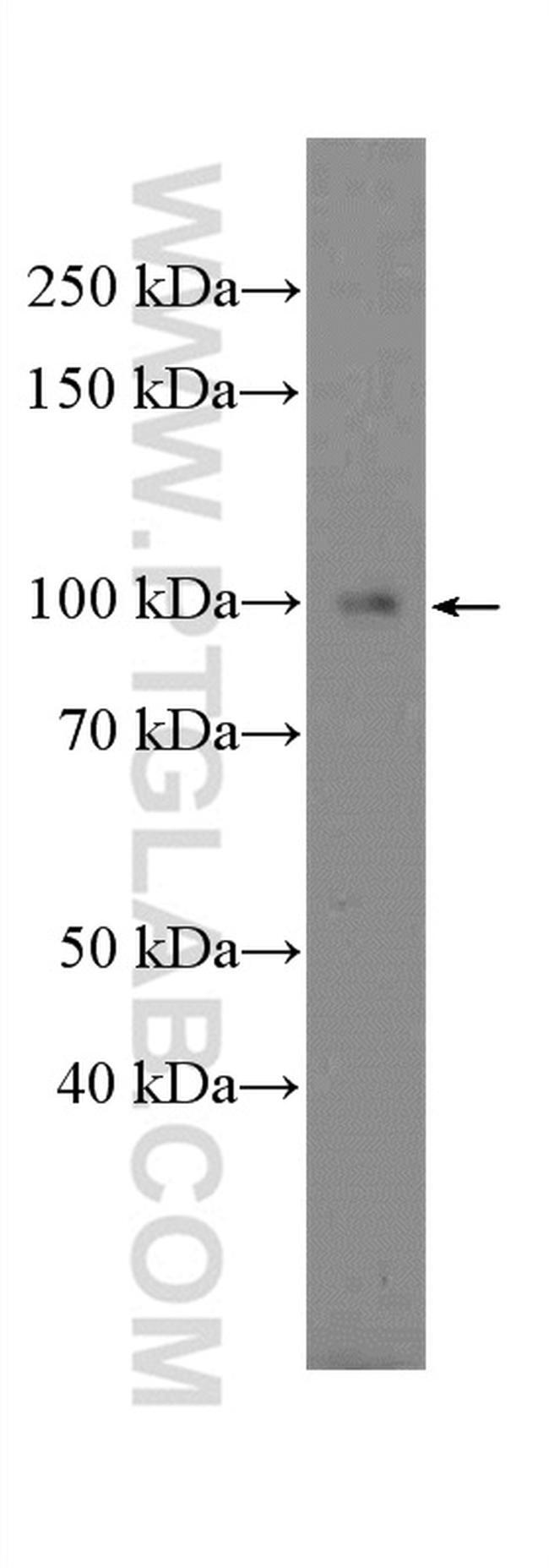

- NIH/3T3 cells were subjected to SDS PAGE followed by western blot with 22624-1-AP (PDE5A antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Immunofluorescent analysis of SKOV-3 cells using 22624-1-AP (PDE5A antibody) at dilution of 1:50 and Alexa Fluor 488-conjugated AffiniPure Goat Anti-Rabbit IGG (H+L).
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Immunofluorescent analysis of SKOV-3 cells using 22624-1-AP (PDE5A antibody) at dilution of 1:50 and Alexa Fluor 488-conjugated AffiniPure Goat Anti-Rabbit IGG (H+L).
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Immunohistochemistry of paraffin-embedded human ovary tumor tissue slide using 22624-1-AP ( PDE5A Antibody) at dilution of 1:200 (under 10x lens).
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Immunohistochemistry of paraffin-embedded human ovary tumor tissue slide using 22624-1-AP ( PDE5A Antibody) at dilution of 1:200 (under 40x lens).
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

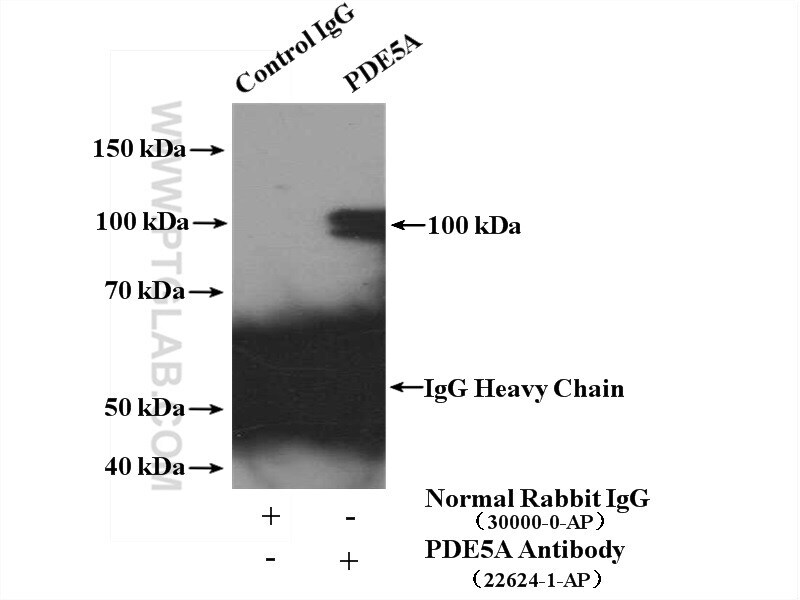

- IP result of anti-PDE5A (IP: 22624-1-AP, 4 µg; Detection: 22624-1-AP 1:300) with SKOV-3 cells lysate 2800 µg.
