- PA5-17170 - Invitrogen Antibodies KDM3B antibody

No submitted references: Submit reference

No comments: Submit comment

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Western blot was performed using Anti-JMJD1B Polyclonal Antibody (Product # PA5-17170) and a 200 kDa band corresponding to JMJD1B was observed across all cell lines tested. Nuclear enriched extracts (50 µg lysate) of IMR-32 (Lane 1), HeLa (Lane 2), Caco-2 (Lane 3), NCCIT (Lane 4), K-562 (Lane 5) were electrophoresed using NuPAGE™ 3-8% Tris-Acetate Protein Gel (Product # EA0378BOX). Resolved proteins were then transferred onto a nitrocellulose membrane (Product # IB23002) by iBlot® 2 Dry Blotting System (Product # IB21001). The blot was probed with the primary antibody (1:1000 dilution) and detected by chemiluminescence with Goat anti-Rabbit IgG (H+L) Superclonal™ Recombinant Secondary Antibody, HRP (Product # A27036,1:20000 dilution) using the iBright™ FL1500 Imaging System (Product # A44115). Chemiluminescent detection was performed using SuperSignal™ West Pico PLUS Chemiluminescent Substrate (Product # 34580).

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Western blot analysis of JMJD1B/JHDM2Bin whole cell lysates from HeLa and RAW cells using JMJD1B/JHDM2B polyclonal antibody (Product # PA5-17170).

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Immunofluorescence analysis of JMJD1B was performed using 70% confluent log phase IMR-32 cells. The cells were fixed with 4% paraformaldehyde for 10 minutes, permeabilized with 0.1% Triton™ X-100 for 15 minutes, and blocked with 2% BSA for 1 hour at room temperature. The cells were labeled with JMJD1B Polyclonal Antibody (Product # PA5-17170) at 1:100 dilution in 0.1% BSA, incubated at 4 degree celsius overnight and then labeled with Donkey anti-Rabbit IgG (H+L) Highly Cross-Adsorbed Secondary Antibody, Alexa Fluor Plus 488 (Product # A32790), (1:2000 dilution), for 45 minutes at room temperature (Panel a: Green). Nuclei (Panel b:Blue) were stained with ProLong™ Diamond Antifade Mountant with DAPI (Product # P36962). F-actin (Panel c: Red) was stained with Rhodamine Phalloidin (Product # R415, 1:300). Panel d represents the merged image showing nuclear localization. Panel e represents control cells with no primary antibody to assess background. The images were captured at 60x magnification.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Immunofluorescence analysis of JMJD1B was performed using 70% confluent log phase HCT 116 cells. The cells were fixed with 4% paraformaldehyde for 10 minutes, permeabilized with 0.1% Triton™ X-100 for 15 minutes, and blocked with 2% BSA for 1 hour at room temperature. The cells were labeled with JMJD1B Polyclonal Antibody (Product # PA5-17170) at 1:100 dilution in 0.1% BSA, incubated at 4 degree celsius overnight and then labeled with Goat anti-Rabbit IgG (Heavy Chain) Superclonal™ Recombinant Secondary Antibody, Alexa Fluor® 488 conjugate (Product # A27034), (1:2000 dilution), for 45 minutes at room temperature (Panel a: Green). Nuclei (Panel b:Blue) were stained with ProLong™ Diamond Antifade Mountant with DAPI (Product # P36962). F-actin (Panel c: Red) was stained with Rhodamine Phalloidin (Product # R415, 1:300). Panel d represents the merged image showing nuclear localization. Panel e represents control cells with no primary antibody to assess background. The images were captured at 60X magnification.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Knockdown of JMJD1B was achieved by transfecting IMR-32 cells with JMJD1B specific siRNA (Silencer® select Product # s28657, s224243). Immunofluorescence analysis was performed on untransfected IMR-32 cells (panel a,d), transfected with non-specific scrambled siRNA (panels e, h) and transfected with JMJD1B specific siRNA (panel i, l). Cells were fixed, permeabilized, and labelled with JMJD1B Polyclonal Antibody (Product # PA5-17170, 1:100 dilution) followed by Donkey anti-Rabbit IgG (H+L) Highly Cross-Adsorbed Secondary Antibody, Alexa Fluor Plus 488 (Product # A32790), (1:2000). Nuclei (blue) were stained using ProLong™ Diamond Antifade Mountant with DAPI (Product # P36962), and Rhodamine Phalloidin (Product # R415, 1:300) was used for cytoskeletal F-actin (Red) staining. Significant reduction of specific signal was observed upon siRNA mediated knockdown (panel i, l) confirming specificity of the antibody to JMJD1B (Green). The Images were captured at 40x magnification in EVOS™ M7000 Imaging System (Product # AMF7000) and externally deconvoluted (D.Sage et al. / Methods 115 (2017) 28-41).

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Immunofluorescent analysis of JMJD1B/JHDM2B in HeLa cells using a JMJD1B/JHDM2B polyclonal antibody (Product # PA5-17170) (green). Actin filaments are labeled with a fluorescent red phalloidin.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image

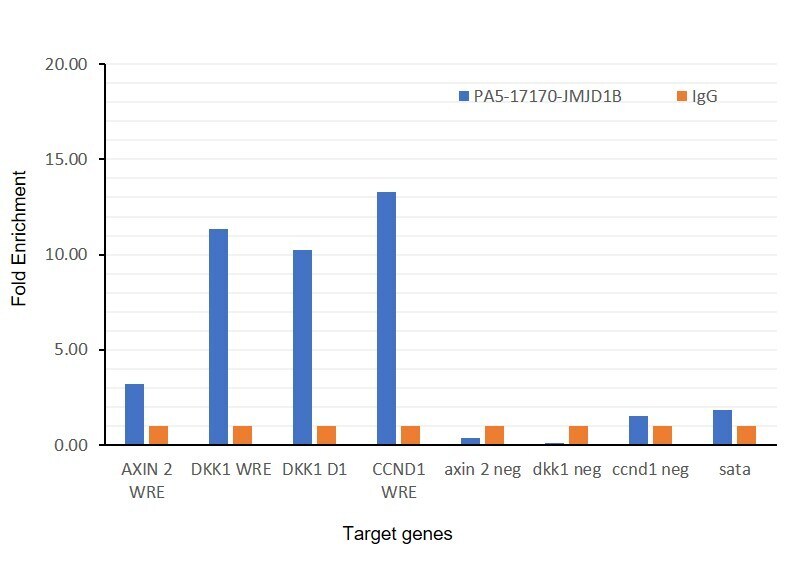

Experimental details: Chromatin Immunoprecipitation (ChIP) was performed using JMJD1B Polyclonal Antibody (Product # PA5-17170, 10 ul) on sheared chromatin from a million HCT 116 cells using the MAGnify ChIP System (Product # 49-2024). Normal Rabbit IgG was used as a negative IP control. The purified DNA was analyzed by qPCR with PCR primer pairs over Axin 2 WRE region, DKK1 WRE region, DKK1 D1 region, CCND1 WRE genes (active), and Axin 2 Neg, DKK1 neg,CCND1 neg and SAT2 satellite repeats (inactive). Antibody specificity was demonstrated by detection of enrichment of the target protein at specific gene loci and no enrichment seen in negative loci. Data is presented as fold enrichment of the antibody signal versus the Rabbit Isotype using the comparative CT method.

PA5-17170
