PA5-31896

antibody from Invitrogen Antibodies

Targeting: ZBTB20 DKFZp566F123, DPZF, ODA-8S, ZNF288

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

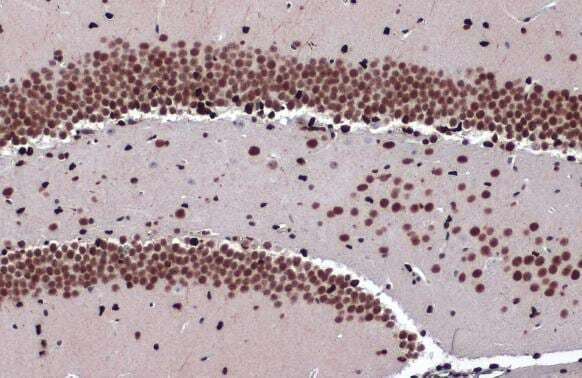

Immunohistochemistry (Data presented on provider website)

Antibody Data

Product number

PA5-31896

Provider

Invitrogen Antibodies

Product name

ZBTB20 Polyclonal Antibody

Antibody type

Polyclonal

Antigen

Recombinant protein fragment

Description

Recommended positive controls: 293T, NIH-3T3, JC, BCL-1. Predicted reactivity: Mouse (100%), Rat (100%). Store product as a concentrated solution. Centrifuge briefly prior to opening the vial.

Reactivity

Human, Mouse, Rat

Host

Rabbit

Isotype

IgG

Vial size

100 µL

Concentration

1.17 mg/mL

Storage

Store at 4°C short term. For long term storage, store at -20°C, avoiding freeze/thaw cycles.

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

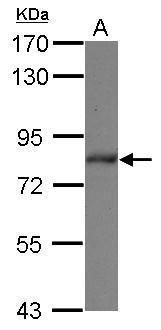

Western blot analysis of ZBTB20 using 30 µg of 293T lysate. Samples were loaded onto a 7.5% SDS-PAGE gel and probed with a ZBTB20 polyclonal antibody (Product # PA5-31896) at a dilution of 1:1000.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

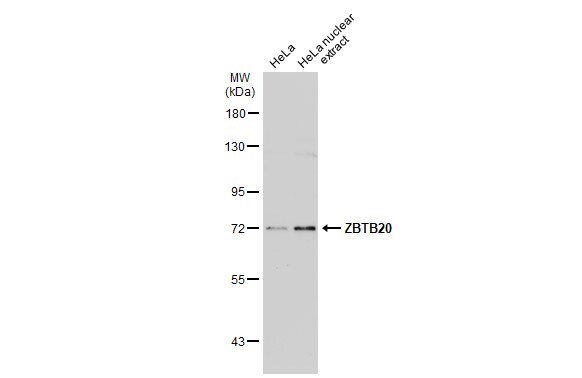

Western Blot analysis of ZBTB20 was performed by separating 30 µg of HeLa whole cell and nuclear extracts by 7.5% SDS-PAGE. Proteins were transferred to a membrane and probed with a ZBTB20 Polyclonal Antibody (Product # PA5-31896) at a dilution of 1:1000. The HRP-conjugated anti-rabbit IgG antibody was used to detect the primary antibody.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

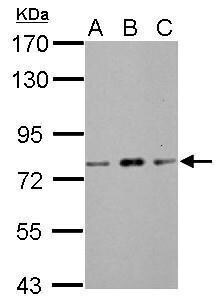

Western Blot using ZBTB20 Polyclonal Antibody (Product # PA5-31896). Sample (30 µg of whole cell lysate). Lane A: NIH-3T3. Lane B: JC. Lane C: BCL-1. 7.5% SDS PAGE. ZBTB20 Polyclonal Antibody (Product # PA5-31896) diluted at 1:1,000. The HRP-conjugated anti-rabbit IgG antibody was used to detect the primary antibody.

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

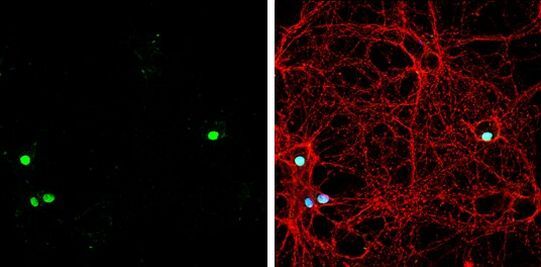

Immunocytochemistry-Immunofluorescence analysis of ZBTB20 was performed in DIV9 rat E18 primary hippocampal neuron cells fixed in 4% paraformaldehyde at RT for 15 min. Green: ZBTB20 Polyclonal Antibody (Product # PA5-31896) diluted at 1:500. Red: beta Tubulin 3/ Tuj1, stained by beta Tubulin 3/ Tuj1 antibody. Blue: Fluoroshield with DAPI.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

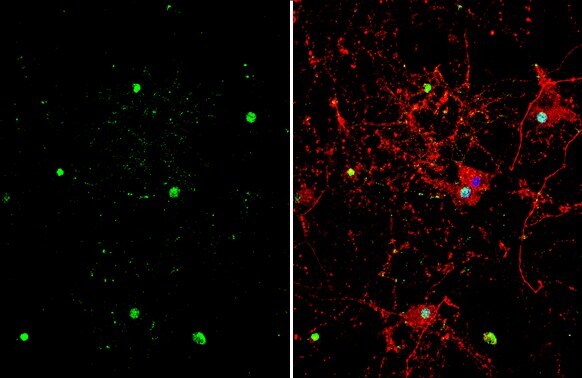

ZBTB20 Polyclonal Antibody detects ZBTB20 protein by immunofluorescent analysis. Sample: DIV10 rat E18 primary hippocampal neuron cells were fixed in 4% paraformaldehyde at RT for 15 min. Green: ZBTB20 stained by ZBTB20 Polyclonal Antibody (Product # PA5-31896) diluted at 1:500. Red: Tau, stained by Phospho-Tau (Ser262) Polyclonal Antibody [GT287]diluted at 1:500. Blue: Fluoroshield with DAPI .
