PA5-80100

antibody from Invitrogen Antibodies

Targeting: TCP1 CCT1, Ccta, D6S230E

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunohistochemistry (Supportive data in Antibodypedia)

Antibody Data

Product number

PA5-80100

Provider

Invitrogen Antibodies

Product name

TCP1 Polyclonal Antibody

Antibody type

Polyclonal

Antigen

Synthetic peptide

Description

Reconstitute with 0.2 mL of distilled water to yield a concentration of 500 µg/mL. Positive Control - WB: human A431 whole cell lysates, human Hela whole cell lysates, human 293T whole cell lysates, human MOLT4 whole cell lysates, human Jurkat whole cell lysates, human A549 whole cell lysates, human MCF-7 whole cell lysates, human U251 whole cell lysates, rat heart tissue lysates, rat ovary tissue lysates, rat brain tissue lysates, rat lung tissue lysates, mouse heart tissue lysates, mouse ovary tissue lysates, mouse brain tissue lysates, mouse lung tissue lysates. IHC: mouse testis tissue, rat testis tissue, human testis tissue, human ovary cancer tissue. ICC/IF: CACO-2 cell.

Reactivity

Human, Mouse, Rat

Host

Rabbit

Isotype

IgG

Vial size

100 μg

Concentration

500 μg/mL

Storage

-20°C

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

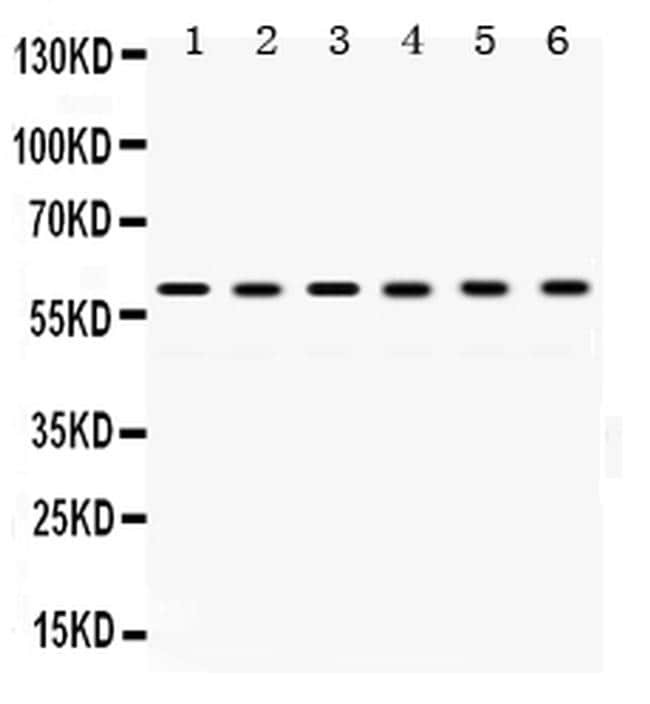

Western blot analysis of TCP1 in Lane 1: rat brain tissue lysate, Lane 2: rat testis tissue lysate, Lane 3: mouse spleen tissue lysate, Lane 4: mouse thymus tissue lysate, Lane 5: HeLa whole cell lysate, Lane 6: MCF-7 whole cell lysate using 40-50 µg per well. Sample was incubated with TCP1 (Product # PA5-80100) at a dilution of 0.5 µg/mL.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

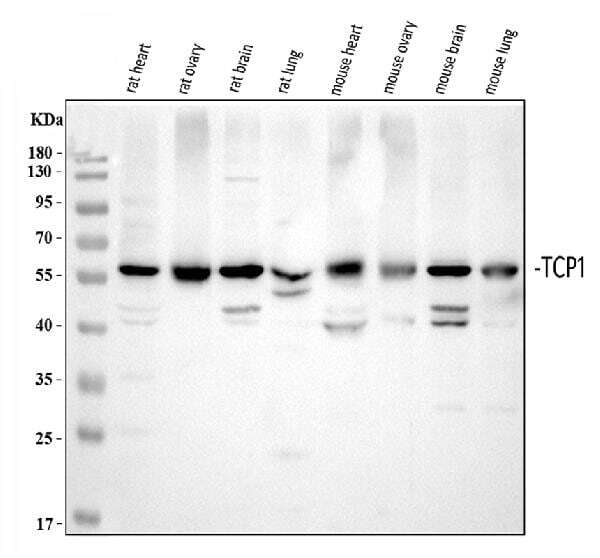

Western blot analysis of TCP1 using TCP1 Polyclonal Antibody (Product # PA5-80100). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel)/90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 µg of sample under reducing conditions. Lane 1: rat heart tissue lysates. Lane 2: rat ovary tissue lysates. Lane 3: rat brain tissue lysates. Lane 4: rat lung tissue lysates. Lane 5: mouse heart tissue lysates. Lane 6: mouse ovary tissue lysates. Lane 7: mouse brain tissue lysates. Lane 8: mouse lung tissue lysates. After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with TCP1 Polyclonal Antibody at 0.5 µg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5,000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for TCP1 at approximately 60 kDa. The expected band size for TCP1 is at 60 kDa.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

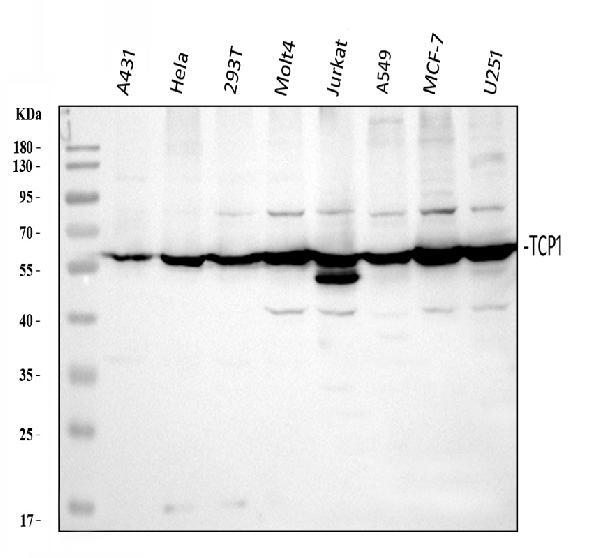

Western blot analysis of TCP1 using TCP1 Polyclonal Antibody (Product # PA5-80100). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel)/90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 µg of sample under reducing conditions. Lane 1: human A431 whole cell lysates. Lane 2: human Hela whole cell lysates. Lane 3: human 293T whole cell lysates. Lane 4: human MOLT4 whole cell lysates. Lane 5: human Jurkat whole cell lysates. Lane 6: human A549 whole cell lysates. Lane 7: human MCF-7 whole cell lysates. Lane 8: human U251 whole cell lysates. After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with TCP1 Polyclonal Antibody at 0.5 µg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5,000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for TCP1 at approximately 60 kDa. The expected band size for TCP1 is at 60 kDa.

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunocytochemistry analysis of TCP1 using anti-TCP1 antibody (Product # PA5-80100) . TCP1 was detected in a section of CACO-2 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent for 15 mins. The cells were blocked with 10% goat serum and then incubated with 5μg/mL rabbit anti-TCP1 antibody (Product # PA5-80100) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunocytochemistry/Immunofluorescence analysis of TCP1 in CACO-2 cells using TCP1 Polyclonal Antibody (Product # PA5-80100). Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent for 15 mins. The cells were blocked with 10% goat serum and incubated with the primary antibody at 5 µg/mL. DyLight 488 conjugated goat anti-rabbit IgG was used as secondary antibody at 1:500 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunocytochemistry analysis of TCP1 using anti-TCP1 antibody (Product # PA5-80100) . TCP1 was detected in a section of CACO-2 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent for 15 mins. The cells were blocked with 10% goat serum and then incubated with 5μg/mL rabbit anti-TCP1 antibody (Product # PA5-80100) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

Immunohistochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry analysis of TCP1 on paraffin-embedded rat ovary tissue. Sample was incubated with TCP1 polyclonal antibody (Product# PA5-80100).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry analysis of TCP1 on paraffin-embedded mouse testis tissue. Sample was incubated with TCP1 polyclonal antibody (Product# PA5-80100).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry analysis of TCP1 on paraffin-embedded human testis tissue. Sample was incubated with TCP1 polyclonal antibody (Product# PA5-80100).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry analysis of TCP1 on paraffin-embedded mouse testis tissue. Sample was incubated with TCP1 polyclonal antibody (Product# PA5-80100).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry analysis of TCP1 on paraffin-embedded human testis tissue. Sample was incubated with TCP1 polyclonal antibody (Product# PA5-80100).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry (Paraffin) analysis of TCP1 in paraffin-embedded section of rat testis tissue using TCP1 Polyclonal Antibody (Product # PA5-80100). Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with the primary antibody at a 2 µg/mL dilution overnight at 4°C. Peroxidase conjugated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit with DAB as the chromogen.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry (Paraffin) analysis of TCP1 in paraffin-embedded section of human testis tissue using TCP1 Polyclonal Antibody (Product # PA5-80100). Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with the primary antibody at a 2 µg/mL dilution overnight at 4°C. Peroxidase conjugated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit with DAB as the chromogen.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry (Paraffin) analysis of TCP1 in paraffin-embedded section of mouse testis tissue using TCP1 Polyclonal Antibody (Product # PA5-80100). Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with the primary antibody at a 2 µg/mL dilution overnight at 4°C. Peroxidase conjugated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit with DAB as the chromogen.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry (Paraffin) analysis of TCP1 in paraffin-embedded section of human ovary cancer tissue using TCP1 Polyclonal Antibody (Product # PA5-80100). Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with the primary antibody at a 2 µg/mL dilution overnight at 4°C. Peroxidase conjugated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit with DAB as the chromogen.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry analysis of TCP1 on paraffin-embedded rat ovary tissue. Sample was incubated with TCP1 polyclonal antibody (Product# PA5-80100).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry (Paraffin) analysis of TCP1 in paraffin-embedded section of rat testis tissue using TCP1 Polyclonal Antibody (Product # PA5-80100). Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with the primary antibody at a 2 µg/mL dilution overnight at 4°C. Peroxidase conjugated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit with DAB as the chromogen.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry (Paraffin) analysis of TCP1 in paraffin-embedded section of human ovary cancer tissue using TCP1 Polyclonal Antibody (Product # PA5-80100). Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with the primary antibody at a 2 µg/mL dilution overnight at 4°C. Peroxidase conjugated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit with DAB as the chromogen.
