MA5-17120

antibody from Invitrogen Antibodies

Targeting: MELK KIAA0175

Immunocytochemistry (Supportive data in Antibodypedia)

Immunohistochemistry (Supportive data in Antibodypedia)

Flow cytometry (Supportive data in Antibodypedia)

Antibody Data

Product number

MA5-17120

Provider

Invitrogen Antibodies

Product name

MELK Monoclonal Antibody (2G2)

Antibody type

Monoclonal

Antigen

Synthetic peptide

Description

MA5-17120 targets MELK in FACS, ICC, IHC, and IF applications and shows reactivity with Human samples.

Antibody clone number

2G2

Concentration

1 mg/mL

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

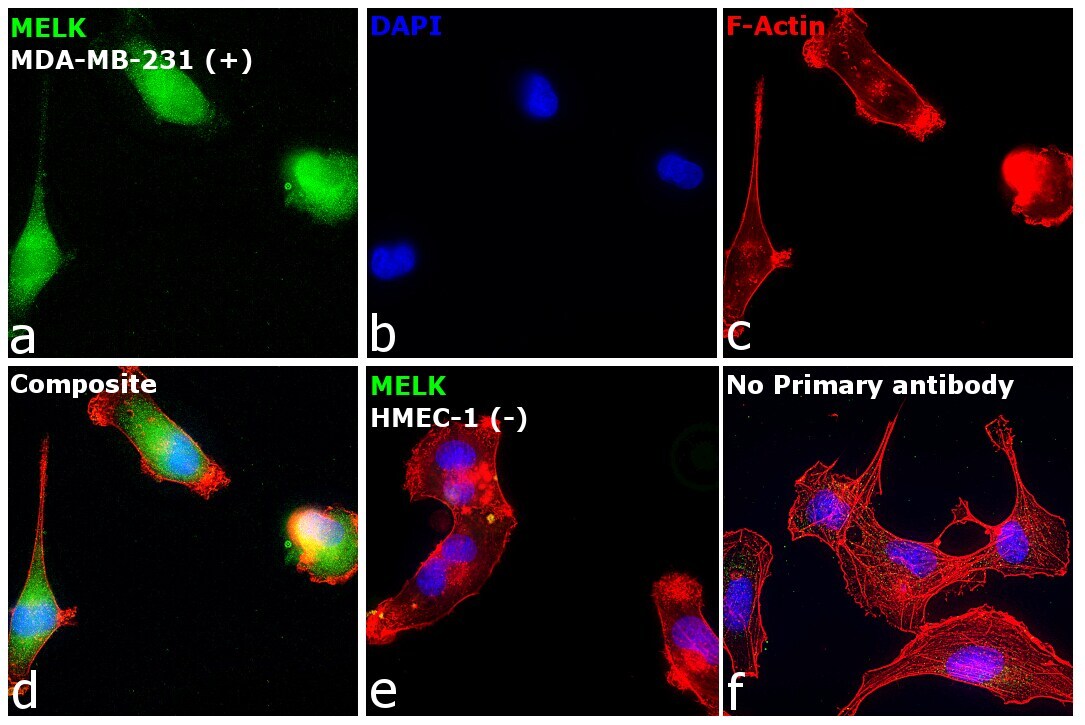

Immunofluorescence analysis of Maternal embryonic leucine zipper kinase was performed using 70% confluent log phase MDA-MB-231 cells. The cells were fixed with 4% paraformaldehyde for 10 minutes, permeabilized with 0.1% Triton™ X-100 for 15 minutes, and blocked with 2% BSA for 45 minutes at room temperature. The cells were labeled with MELK Monoclonal Antibody (2G2) (Product # MA5-17120) at 1:500 dilution in 0.1% BSA, incubated at 4 degree celsius overnight and then labeled with Donkey anti-Mouse IgG (H+L) Highly Cross-Adsorbed Secondary Antibody, Alexa Fluor Plus 488 (Product # A32766) (1:2000 dilution), for 45 minutes at room temperature (Panel a: Green). Nuclei (Panel b: Blue) were stained with ProLong™ Diamond Antifade Mountant with DAPI (Product # P36962). F-actin (Panel c: Red) was stained with Rhodamine Phalloidin (Product # R415, 1:300 dilution). Panel d represents the merged image showing cytoplasm (Plasma membrane-like) localization in MDA-MB-231. Panel e represents negative model HMEC-1, which does not show any signal. Panel f represents control cells with no primary antibody to assess background. The images were captured at 60X magnification.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

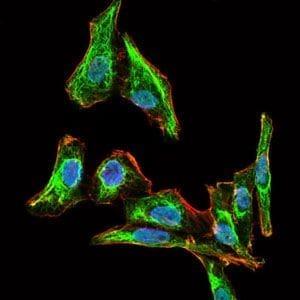

Immunofluorescence analysis of HepG2 cells using MELK monoclonal antibody (Product # MA5-17120) (Green). Blue: DRAQ5 fluorescent DNA dye. Red: actin filaments have been labeled with phalloidin.

Immunohistochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

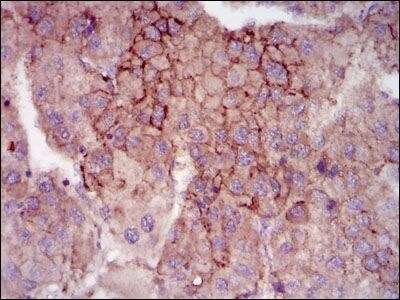

Immunohistochemical analysis of paraffin-embedded liver cancer tissues using MELK monoclonal antibody (Product # MA5-17120) followed with DAB staining.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

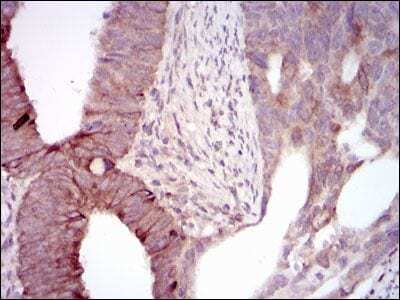

Immunohistochemical analysis of paraffin-embedded rectum cancer tissues using MELK monoclonal antibody (Product # MA5-17120) followed with DAB staining.

Flow cytometry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Flow cytometric analysis of MCF-7 cells using MELK monoclonal antibody (Product # MA5-17120) (green) and negative control (red).
