- Product number
- MA5-57285 - Provider product page
- Provider
- Invitrogen Antibodies
- Product name
- TIMM22 Recombinant Rabbit Monoclonal Antibody (24GB2355)
- Antibody type
- Monoclonal
- Antigen
- Synthetic peptide
- Reactivity
- Human, Mouse, Rat
- Host
- Rabbit
- Isotype
- IgG
- Antibody clone number
- 24GB2355
- Vial size
- 100 µL
- Storage
- -20°C
No comments: Submit comment
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Immunocytochemical staining of TIMM22 in HepG2 cells using TIMM22 Recombinant Monoclonal Antibody (Product # MA5-57285) at a 1:1,1000 dilution. Nuclei were stained blue with DAPI; TIMM22 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar: 20 μm.
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

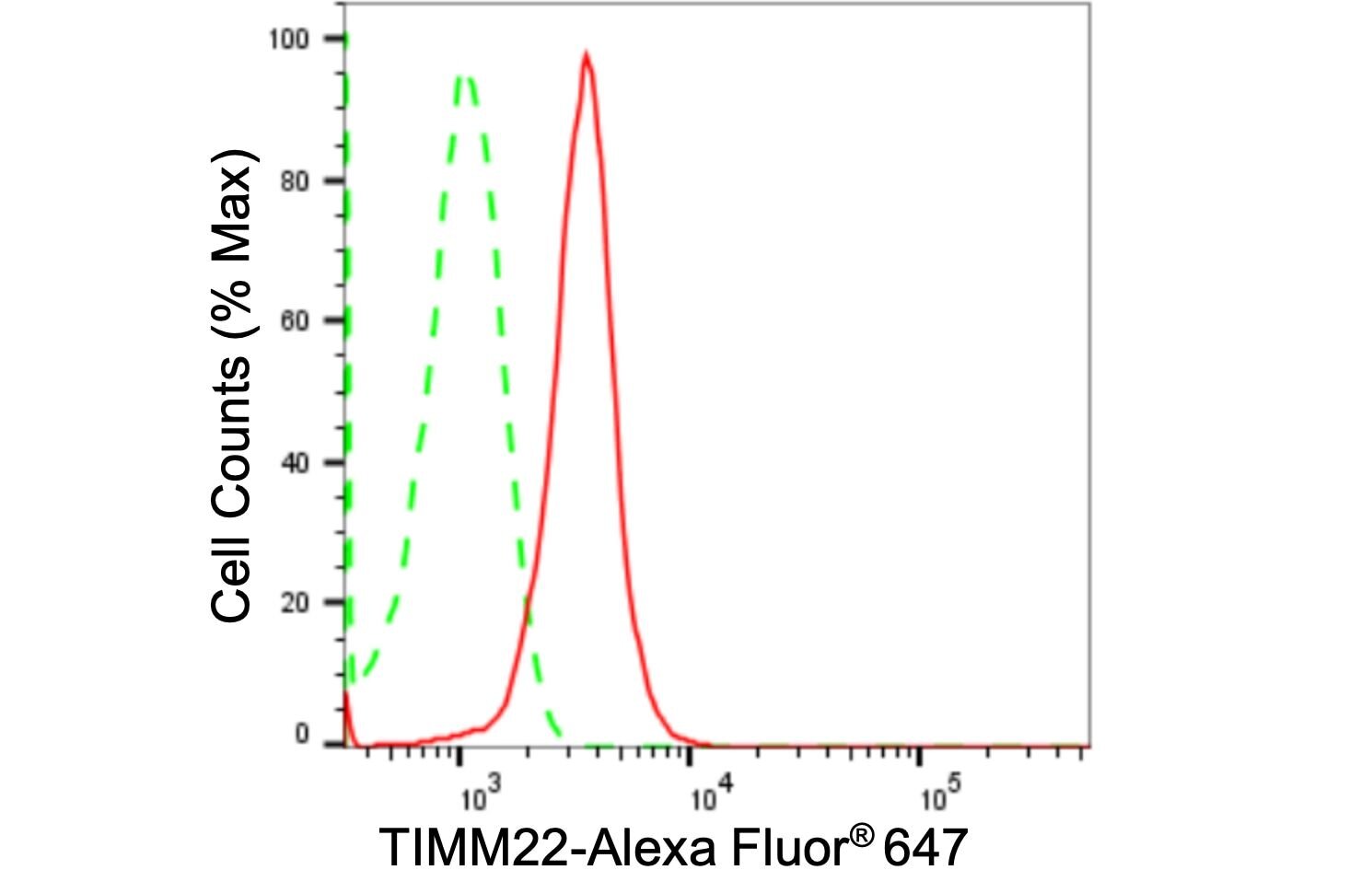

- Flow cytometric analysis of TIMM22 expression in HepG2 cells using TIMM22 Recombinant Monoclonal Antibody (Product # MA5-57285) at a 1:2,000 dilution. Green, isotype control; red, TIMM22.
