A700-028-T

antibody from Invitrogen Antibodies

Targeting: LAG3 CD223

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunoprecipitation (Data presented on provider website)

Immunohistochemistry (Supportive data in Antibodypedia)

Other assay (Supportive data in Antibodypedia)

Antibody Data

Product number

A700-028-T

Provider

Invitrogen Antibodies

Product name

LAG3 Recombinant Rabbit Monoclonal Antibody (BLR028F)

Antibody type

Monoclonal

Antigen

Recombinant full-length protein

Reactivity

Human

Host

Rabbit

Isotype

IgG

Antibody clone number

BLR028F

Vial size

10 µL

Concentration

1 mg/mL

Storage

4° C

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

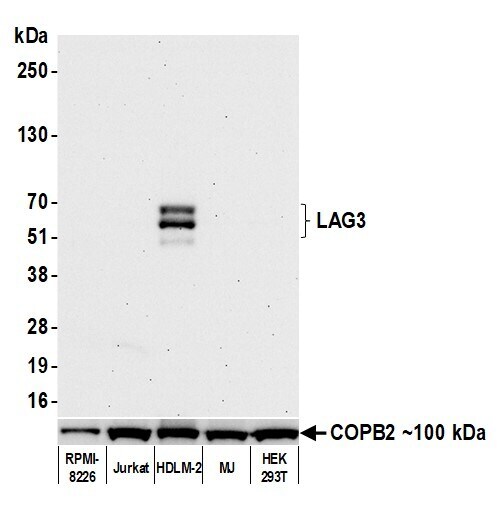

Detection of human LAG3 by western blot. Samples: Whole cell lysate (50 µg) from RPMI-8226, Jurkat, HDLM-2, MJ, and HEK293T cells prepared using NETN lysis buffer. Antibody: Rabbit anti-LAG3 recombinant monoclonal antibody [BLR028F] (Product # A700-028 lot 2) used at 1:1000. Secondary: HRP-conjugated goat anti-rabbit IgG (A120-101P). Chemiluminescence with an exposure time of 30 seconds.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

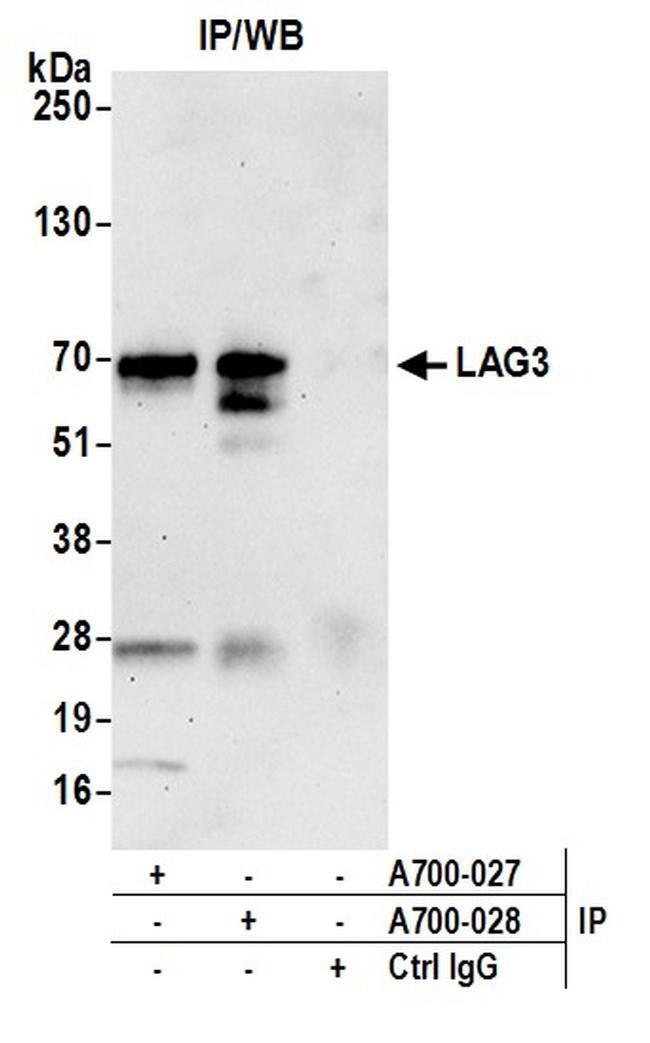

Detection of human LAG3 by WB of immunoprecipitates from HDLM-2 lysate. Antibodies: Rabbit anti-LAG3 recombinant monoclonal [BLR028F] (A700-028) and rabbit anti-LAG3 recombinant monoclonal [BLR027F] (A700-027). Secondary: ReliaBLOT® reagents (WB120).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

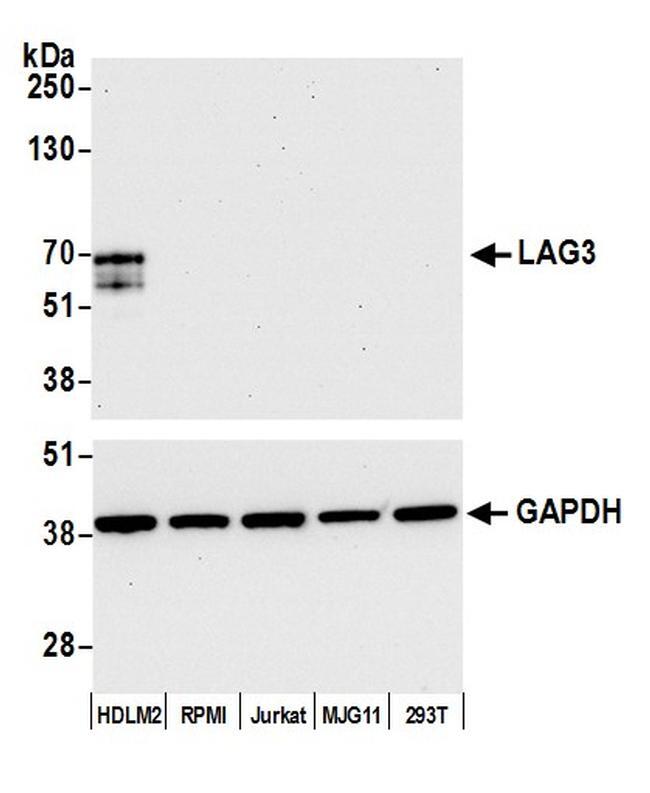

Detection of human LAG3 by WB in HDLM-2, RPMI-8226, Jurkat, MJ [G11], and 293T lysate. Antibody: Rabbit anti-LAG3 recombinant monoclonal [BLR028F] (A700-028). Secondary: HRP-conjugated goat anti-rabbit IgG (A120-101P). Lower Panel: Rabbit anti-GAPDH (A300-641A).

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Detection of human LAG3 by immunocytochemistry. Sample: FFPE section of HDLM-2 cells. Antibody: Rabbit anti-LAG3 recombinant monoclonal antibody [BLR028F] (Product # A700-028; lot 2).Secondary: HRP-conjugated goat anti-rabbit IgG (Product # A120-501P).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Detection of human LAG3 in FFPE HDLM-2 cells by ICC.Antibody: Rabbit anti-LAG3 recombinant monoclonal [BLR028F] (A700-028) used at 1:200.Secondary: HRP-conjugated goat anti-rabbit IgG (A120-501P). Substrate: DAB.

Immunohistochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Detection of human LAG3 by immunohistochemistry. Sample: FFPE section of tonsil. Antibody: Rabbit anti-LAG3 recombinant monoclonal antibody [BLR028F] (Product # A700-028 lot 2). Secondary: HRP-conjugated goat anti-rabbit IgG (A120-501P).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Detection of human LAG3 (red) by immunohistochemistry. Sample: FFPE section of human tonsil. Antibody: Rabbit anti-LAG3 recombinant monoclonal antibody [BLR028F] (Product # A700-028 lot 1) used at 1:250. Secondary: HRP-conjugated goat anti-rabbit IgG (A120-501P). Substrate: Opal™. Counterstain: DAPI (blue).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Detection of human LAG3 in FFPE tonsil by IHC.Antibody: Rabbit anti-LAG3 recombinant monoclonal [BLR028F] (A700-028) used at 1:200.Secondary: HRP-conjugated goat anti-rabbit IgG (A120-501P). Substrate: DAB.

Other assay

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

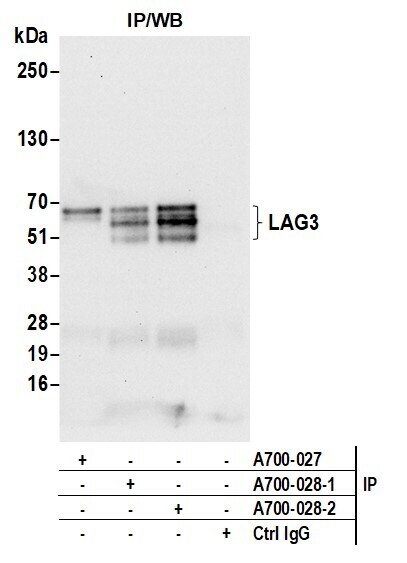

Detection of human LAG3 by western blot of immunoprecipitates. Samples: Whole cell lysate (1.0 mg per IP reaction; 20% of IP loaded) from HDLM-2 cells prepared using NETN lysis buffer. Antibodies: Rabbit anti-LAG3 recombinant monoclonal antibody [BLR028F] (Product # A700-028 lot 2) used for IP at 20 µL/mg lysate. LAG3 was also immunoprecipitated by a previous lot of this antibody (A700-028 lot 1) and a second antibody against a different epitope of LAG3 (Product # A700-027). For blotting immunoprecipitated LAG3 (Product # A700-028) was used at 1:1000. Chemiluminescence with an exposure time of 10 seconds.
