NBP1-41012-0.1mg

antibody from Novus Biologicals

Targeting: CYBB CGD, GP91-PHOX, NOX2

Western blot (Data presented on provider website)

ELISA (Data presented on provider website)

Immunocytochemistry (Data presented on provider website)

Immunohistochemistry (Data presented on provider website)

Flow cytometry (Supportive data in Antibodypedia)

Antibody Data

Product number

NBP1-41012-0.1mg

Provider

Novus Biologicals

Proper citation

Novus Cat#NBP1-41012-0.1mg, RRID:AB_10005006

Product name

Mouse Monoclonal CYBB/NOX2 Antibody

Antibody type

Monoclonal

Description

Protein G purified. This antibody recognises the heavy chain of cytochrome B245. It recognises the native as well as the denatured form of the protein

Reactivity

Human

Host

Mouse

Antigen sequence

Clone NL7 binds amino acids 498-506
(EKDVITGLK), a cytosolic epitope o
n gp91phox not accessible on intact
neutrophils.


Isotype

IgG

Vial size

0.1 mg

Concentration

1.0 mg/ml

Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Flow cytometry

Supportive validation

Submitted by

Novus Biologicals (provider)

Main image

Experimental details

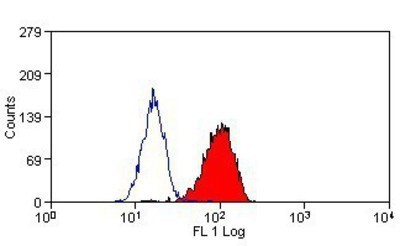

Flow Cytometry: CYBB/NOX2 Antibody (NL7) [NBP1-41012] - Staining of human peripheral blood granulocytes with Mouse anti Human Cytochrome b-245 Heavy Chain. Permeabilised with Leucoperm

Supportive validation

Submitted by

Novus Biologicals (provider)

Main image

Experimental details

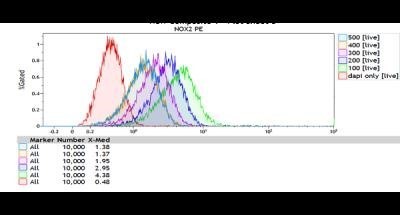

Flow Cytometry: CYBB/NOX2 Antibody (NL7) [NBP1-41012] - Analysis using the PE conjugate of NBP1-41012. Staining of CYBB in human peripheral blood using anti-CYBB antibody. Image from verified customer review.

Supportive validation

Submitted by

Novus Biologicals (provider)

Main image

Experimental details

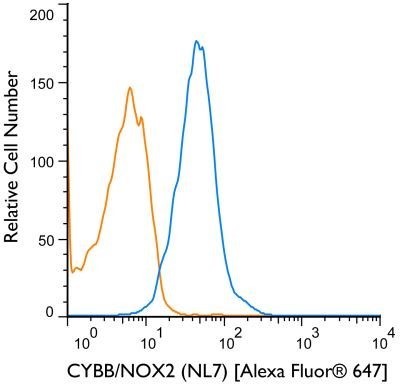

Flow (Intracellular): CYBB/NOX2 Antibody (NL7) [NBP1-41012] - An intracellular stain was performed on THP-1 cells with CYBB/NOX2 (NL7) antibody NBP1-41012AF647 (blue) and a matched isotype control(orange). Cells were fixed with 4% PFA and then permeablized with 0.1% saponin. Cells were incubated in an antibody dilution of 2.5 ug/mL for 30 minutes at room temperature. Both antibodies were conjugated to Alexa Fluor 647.

Supportive validation

Submitted by

Novus Biologicals (provider)

Main image

Experimental details

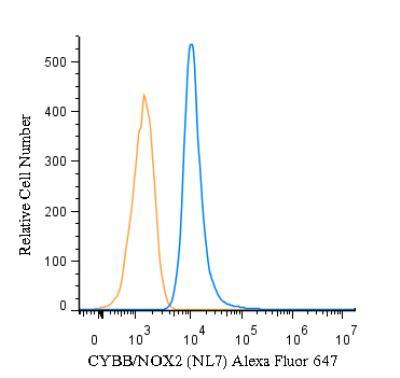

Flow Cytometry: CYBB/NOX2 Antibody (NL7) [NBP1-41012] - Using the Alexa Fluor 647 direct conjugate An intracellular stain was performed on Daudi cells with CYBB/NOX2 (NL7) antibody NBP1-41012AF647 (blue) and a matched isotype control NBP1-97005AF647 (orange). Cells were fixed with 4% PFA and then permeablized with 0.1% saponin. Cells were incubated in an antibody dilution of 2 ug/mL for 30 minutes at room temperature. Both antibodies were conjugated to Alexa Fluor 647.
