140685-MSM1-P1

antibody from Invitrogen Antibodies

Targeting: ZBTB46 BTBD4, BZEL, FLJ13502, RINZF, ZNF340

Immunohistochemistry (Supportive data in Antibodypedia)

Flow cytometry (Supportive data in Antibodypedia)

Other assay (Supportive data in Antibodypedia)

Antibody Data

Product number

140685-MSM1-P1

Provider

Invitrogen Antibodies

Product name

ZBTB46/BTBD4/ZNF340 Monoclonal Antibody (PCRP-ZBTB46-2B8)

Antibody type

Monoclonal

Antigen

Recombinant full-length protein

Description

Immunohistochemistry (PFA fixed): incubate antibody for 30 min RT. Staining of formalin-fixed tissues requires heating tissue sections in 10mM Tris with 1mM EDTA, pH 9.0, for 45 min at 95 degrees C followed by cooling at RT for 20 minutes.

Antibody clone number

PCRP-ZBTB46-2B8

Concentration

200 µg/mL

Immunohistochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry (Paraffin) analysis performed in formalin fixed, paraffin-embedded human tonsil using ZBTB46, BTBD4, ZNF340 Monoclonal Antibody (Product # 140685-MSM1-P1).

Flow cytometry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Flow Cytometry analysis of PFA-fixed HeLa cells using ZBTB46, BTBD4, ZNF340 Monoclonal Antibody (Product # 140685-MSM1-P1) followed by goat anti-mouse IgG-CF488 (blue); unstained cells (red).

Other assay

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

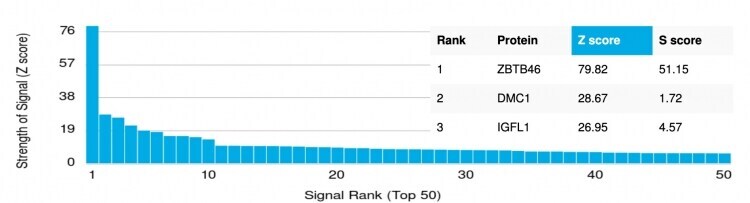

Analysis of Protein Array containing more than 19,000 full-length human proteins ZBTB46, BTBD4, ZNF340 Monoclonal Antibody (Product # 140685-MSM1-P1). Z- and S- Score: The Z-score represents the strength of a signal that a monoclonal antibody (MAb) (in combination with a fluorescently-tagged anti-IgG secondary antibody) produces when binding to a particular protein on the HuProtTM array. Z-scores are described in units of standard deviations (SD's) above the mean value of all signals generated on that array. If targets on HuProtTM are arranged in descending order of the Z-score, the S-score is the difference (also in units of SD's) between the Z-score. S-score therefore represents the relative target specificity of a MAb to its intended target. A MAb is considered to specific to its intended target, if the MAb has an S-score of at least 2.5. For example, if a MAb binds to protein X with a Z-score of 43 and to protein Y with a Z-score of 14, then the S-score for the binding of that MAb to protein X is equal to 29.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

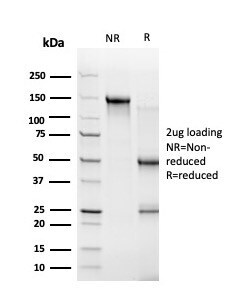

SDS-PAGE Analyis Purified ZBTB46, BTBD4, ZNF340 Monoclonal Antibody (Product # 140685-MSM1-P1). Confirmation of Purity and Integrity of Antibody.
