66562-1-IG

antibody from Invitrogen Antibodies

Targeting: TOMM22 TOM22

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunohistochemistry (Supportive data in Antibodypedia)

Flow cytometry (Supportive data in Antibodypedia)

Antibody Data

Product number

66562-1-IG

Provider

Invitrogen Antibodies

Product name

TOMM22 Monoclonal Antibody (1C2B11)

Antibody type

Monoclonal

Antigen

Other

Reactivity

Human

Host

Mouse

Isotype

IgG

Antibody clone number

1C2B11

Vial size

150 µL

Concentration

1 mg/mL

Storage

-20°C

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

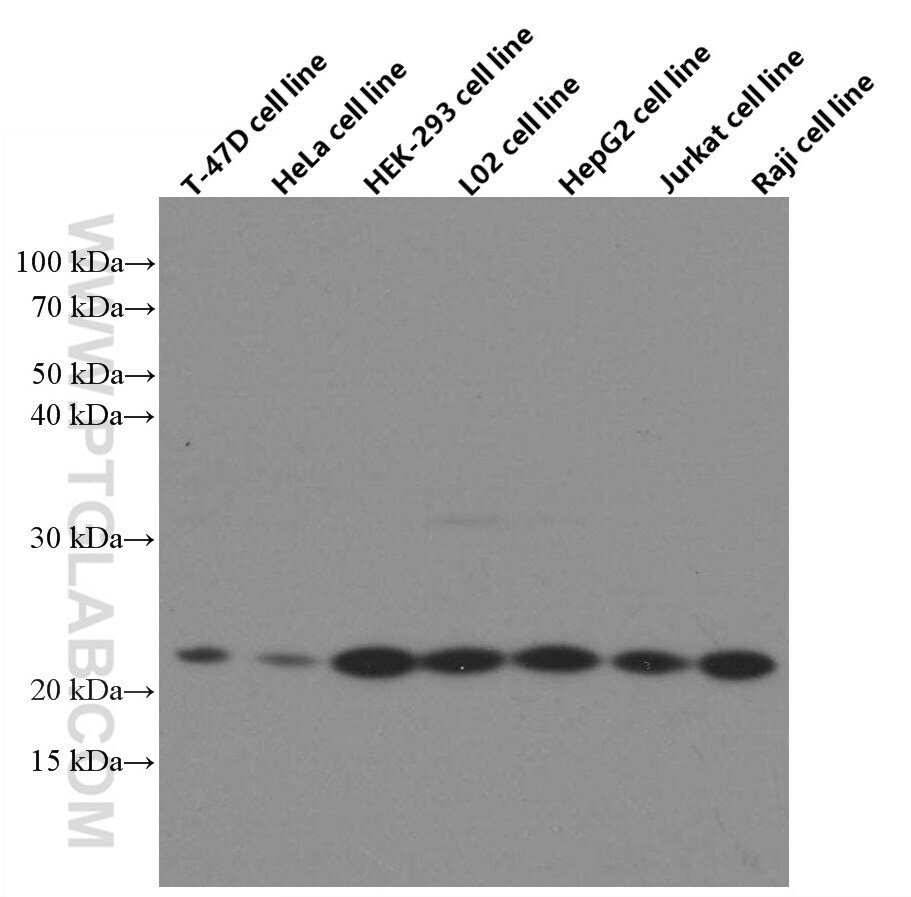

Various lysates were subjected to SDS PAGE followed by western blot with 66562-1-IG (TOMM22 antibody) at dilution of 1:5000 incubated at room temperature for 1.5 hours.

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescent analysis of ( 4% PFA) fixed HepG2 cells using 66562-1-IG (TOMM22 antibody) at dilution of 1:100 and Alexa Fluor 488-conjugated AffiniPure Goat Anti-Mouse IGG (H+L).

Immunohistochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human colon cancer tissue slide using 66562-1-Ig (TOMM22 antibody) at dilution of 1:400 (under 10x lens) heat mediated antigen retrieved with Tris-EDTA buffer (pH 9).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human colon cancer tissue slide using 66562-1-Ig (TOMM22 antibody) at dilution of 1:400 (under 40x lens) heat mediated antigen retrieved with Tris-EDTA buffer (pH 9).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human kidney tissue slide using 66562-1-Ig (TOMM22 antibody) at dilution of 1:200 (under 40x lens) heat mediated antigen retrieved with Tris-EDTA buffer (pH 9).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human kidney tissue slide using 66562-1-Ig (TOMM22 antibody) at dilution of 1:200 (under 0x lens) heat mediated antigen retrieved with Tris-EDTA buffer (pH 9).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human kidney tissue slide using 66562-1-Ig (TOMM22 antibody) at dilution of 1:200 (under 0x lens) heat mediated antigen retrieved with Tris-EDTA buffer (pH 9).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human kidney tissue slide using 66562-1-IG (TOMM22 antibody) at dilution of 1:200 (under 10x lens) heat mediated antigen retrieved with Tris-EDTA buffer (pH 9).

Flow cytometry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

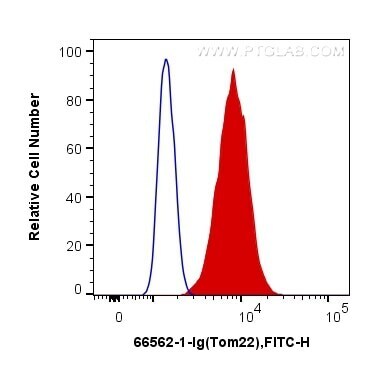

1X10^6 HEK-293 cells were intracellularly stained with 0.4 µg Anti-Human Tom22 (Product # 66562-1-IG, Clone:1C2B11) and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) at dilution 1:1,000 (red), or 0.4 µg Control Antibody. Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).
