PA5-144066

antibody from Invitrogen Antibodies

Targeting: TIGD3

Western blot (Supportive data in Antibodypedia)

ELISA (Recommended by provider)

Flow cytometry (Supportive data in Antibodypedia)

Antibody Data

Product number

PA5-144066

Provider

Invitrogen Antibodies

Product name

TIGD3 Polyclonal Antibody

Antibody type

Polyclonal

Antigen

Recombinant full-length protein

Description

Adding 0.2 mL of distilled water will yield a concentration of 500 µg/mL. Positive Control - WB: human HepG2 whole cell, human T-47D whole cell, human SH-SY5Y whole cell, human MCF-7 whole cell. Flow: Daudi cell.|Store at -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freeze-thaw cycles.

Reactivity

Human

Host

Rabbit

Isotype

IgG

Vial size

100 μg

Concentration

500 μg/mL

Storage

-20°C

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

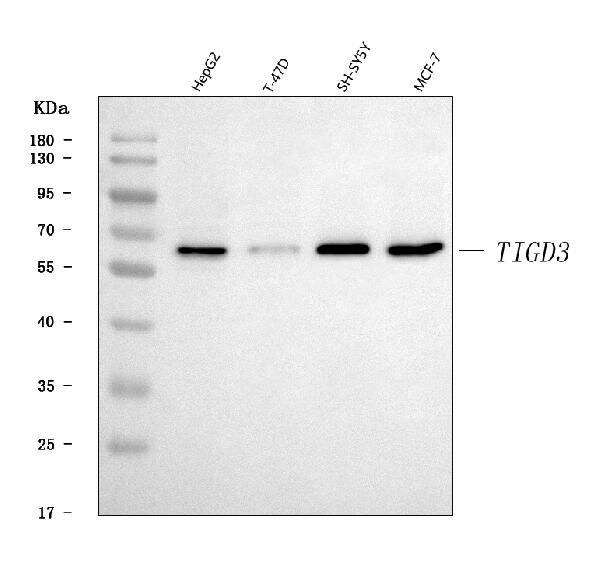

Western blot analysis of TIGD3 using TIGD3 antibody (Product # PA5-144066). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 µg of sample under reducing conditions. Lane 1: human HepG2 whole cell lysates; Lane 2: human T-47D whole cell lysates; Lane 3: human SH-SY5Y whole cell lysates; Lane 4: human MCF-7 whole cell lysates. After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-TIGD3 antigen affinity purified polyclonal antibody (Product # PA5-144066) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0. 1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5,000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for TIGD3 at approximately 60 kDa. The expected band size for TIGD3 is at 52 kDa.

Flow cytometry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

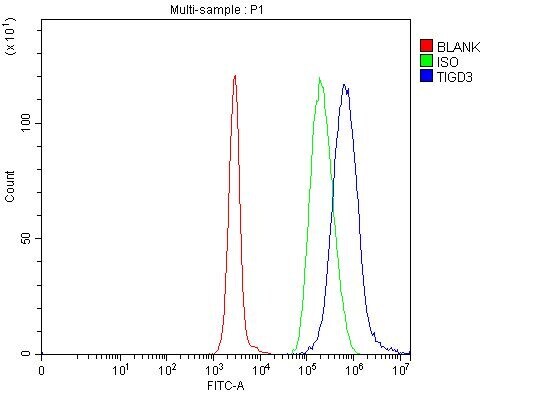

Flow cytometry of TIGD3 in Daudi cells (Blue line). The cells were blocked with 10% normal goat serum, and then incubated with TIGD3 polyclonal antibody (Product # PA5-144066) (1 μg/1x10^6 cells) for 30 min at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x10^6 cells) used under the same conditions. Unlabeled sample (Red line) was also used as a control. DyLight®488 conjugated goat anti-rabbit IgG (5-10 μg/1x10^6 cells) was used as secondary antibody for 30 minutes at 20°C.
