11-9883-80

antibody from Invitrogen Antibodies

Targeting: IKZF2 Helios, ZNFN1A2

Flow cytometry (Supportive data in Antibodypedia)

Other assay (Supportive data in Antibodypedia)

Antibody Data

Product number

11-9883-80

Provider

Invitrogen Antibodies

Product name

HELIOS Monoclonal Antibody (22F6), FITC, eBioscience™

Antibody type

Monoclonal

Antigen

Other

Description

Description: This 22F6 monoclonal antibody reacts with human, mouse and canine Helios. Helios is a zinc-finger transcription factor first identified for its similarity to Ikaros. It is expressed in hematopoietic stem cells in both the embryo and adult mice. While the highest expression is found in regulatory T cells, Helios is not expressed in mature B cells, dendritic cells or myeloid cells. Helios can form a homodimer as well as heterodimerize with other Ikaros family members to regulate transcription. Eight isoforms of Helios exist, some of which possess a dominant-negative function that has also been found to be upregulated in lymphoid malignancies, including T-acute lymphoblastic leukemia. 22F6 has been reported to cross react with rat Helios. Applications Reported: This 22F6 antibody has been reported for use in intracellular staining followed by flow cytometric analysis. Applications Tested: This 22F6 antibody has been tested by intracellular staining and flow cytometric analysis of normal human peripheral blood cells using Foxp3 Fixation and Permeabilization Buffers (Product # 00-5521-00). Please see BestProtocols® Section (Staining intracellular Antigens for Flow Cytometry) for staining protocol (refer to Protocol B: One-step protocol for intracellular (nuclear) proteins). This can be used at less than or equal to 0.125 µg per test. A test is defined as the amount (µg) of antibody that will stain a cell sample in a final volume of 100 µL. Cell number should be determined empirically but can range from 10^5 to 10^8 cells/test. It is recommended that the antibody be carefully titrated for optimal performance in the assay of interest. Excitation: 488 nm; Emission: 520 nm; Laser: Blue Laser. Filtration: 0.2 µm post-manufacturing filtered.

Reactivity

Human, Mouse, Canine

Conjugate

Green dye

Isotype

IgG

Antibody clone number

22F6

Vial size

25 μg

Concentration

0.5 mg/mL

Storage

4°C, store in dark, DO NOT FREEZE!

References

Submitted references

Activation-induced cytidine deaminase expression by thymic B cells promotes T-cell tolerance and limits autoimmunity.

Lombard-Vadnais F, Chabot-Roy G, Zahn A, Rodriguez Torres S, Di Noia JM, Melichar HJ, Lesage S
iScience 2023 Jan 20;26(1):105852

---

Mesenchymal stem cells transfer mitochondria to allogeneic Tregs in an HLA-dependent manner improving their immunosuppressive activity.

Piekarska K, Urban-Wójciuk Z, Kurkowiak M, Pelikant-Małecka I, Schumacher A, Sakowska J, Spodnik JH, Arcimowicz Ł, Zielińska H, Tymoniuk B, Renkielska A, Siebert J, Słomińska E, Trzonkowski P, Hupp T, Marek-Trzonkowska NM
Nature communications 2022 Feb 14;13(1):856

---

Adiponectin/AdipoR1 Axis Promotes IL-10 Release by Human Regulatory T Cells.

Ramos-Ramírez P, Malmhäll C, Tliba O, Rådinger M, Bossios A
Frontiers in immunology 2021;12:677550

---

Differences in Maturation Status and Immune Phenotypes of Circulating Helios(+) and Helios(-) Tregs and Their Disrupted Correlations With Monocyte Subsets in Autoantibody-Positive T1D Individuals.

Zhang Y, Zhang J, Shi Y, Shen M, Lv H, Chen S, Feng Y, Chen H, Xu X, Yang T, Xu K
Frontiers in immunology 2021;12:628504

---

Notch4 signaling limits regulatory T-cell-mediated tissue repair and promotes severe lung inflammation in viral infections.

Harb H, Benamar M, Lai PS, Contini P, Griffith JW, Crestani E, Schmitz-Abe K, Chen Q, Fong J, Marri L, Filaci G, Del Zotto G, Pishesha N, Kolifrath S, Broggi A, Ghosh S, Gelmez MY, Oktelik FB, Cetin EA, Kiykim A, Kose M, Wang Z, Cui Y, Yu XG, Li JZ, Berra L, Stephen-Victor E, Charbonnier LM, Zanoni I, Ploegh H, Deniz G, De Palma R, Chatila TA
Immunity 2021 Jun 8;54(6):1186-1199.e7

---

Potential therapeutic effects of interleukin-35 on the differentiation of naïve T cells into Helios(+)Foxp3(+) Tregs in clinical and experimental acute respiratory distress syndrome.

Wang C, Xie K, Li K, Lin S, Xu F
Molecular immunology 2021 Apr;132:236-249

---

Distinct actions of the fermented beverage kefir on host behaviour, immunity and microbiome gut-brain modules in the mouse.

van de Wouw M, Walsh AM, Crispie F, van Leuven L, Lyte JM, Boehme M, Clarke G, Dinan TG, Cotter PD, Cryan JF
Microbiome 2020 May 18;8(1):67

---

B7-CD28 co-stimulation modulates central tolerance via thymic clonal deletion and Treg generation through distinct mechanisms.

Watanabe M, Lu Y, Breen M, Hodes RJ
Nature communications 2020 Dec 8;11(1):6264

---

CD40-signalling abrogates induction of RORγt(+) Treg cells by intestinal CD103(+) DCs and causes fatal colitis.

Barthels C, Ogrinc A, Steyer V, Meier S, Simon F, Wimmer M, Blutke A, Straub T, Zimber-Strobl U, Lutgens E, Marconi P, Ohnmacht C, Garzetti D, Stecher B, Brocker T
Nature communications 2017 Mar 9;8:14715

---

Characterization of c-Maf(+)Foxp3(-) Regulatory T Cells Induced by Repeated Stimulation of Antigen-Presenting B Cells.

Chien CH, Yu HC, Chen SY, Chiang BL
Scientific reports 2017 Apr 12;7:46348

---

Perinatal tolerance to proinsulin is sufficient to prevent autoimmune diabetes.

Jhala G, Chee J, Trivedi PM, Selck C, Gurzov EN, Graham KL, Thomas HE, Kay TW, Krishnamurthy B
JCI insight 2016 Jul 7;1(10):e86065

---

Helios Controls a Limited Subset of Regulatory T Cell Functions.

Sebastian M, Lopez-Ocasio M, Metidji A, Rieder SA, Shevach EM, Thornton AM
Journal of immunology (Baltimore, Md. : 1950) 2016 Jan 1;196(1):144-55

---

Circulating T regulatory cells migration and phenotype in glioblastoma patients: an in vitro study.

Vasco C, Canazza A, Rizzo A, Mossa A, Corsini E, Silvani A, Fariselli L, Salmaggi A, Ciusani E
Journal of neuro-oncology 2013 Dec;115(3):353-63

Flow cytometry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

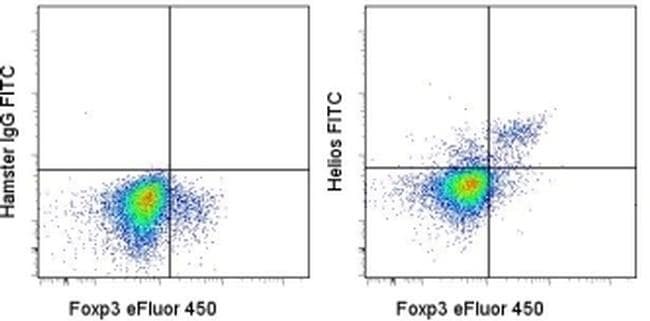

Intracellular staining of normal human peripheral blood cells with Anti-Human Foxp3 eFluor® 450 (Product # 48-4776-42) and Armenian Hamster IgG Isotype Control FITC (Product # 11-4888-81) (left) or Anti-Helios FITC (right) using Foxp3 Fixation and Permeabilization Buffers (Product # 00-5521-00). CD4+ cells in the lymphocyte gate were used for analysis.

Other assay

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Figure 5 Notch4 deficiency reprograms the lung Treg cell transcriptome of poly(I:C)-treated mice (A-C) Volcano plot (A), heatmap (B), and pathway analysis (C) of gene transcripts of lung Treg cells isolated from Foxp3 YFPCre and Foxp3 YFPCre Notch4 Delta/Delta mice treated with poly(I:C) (n = 4 and n = 5, respectively). (D) Flow cytometry histograms and graphical representation of lung tissue Treg cell expression of CD25, Helios, CTLA4, ICOS, and OX40 in Foxp3 YFPCre and Foxp3 YFPCre Notch4 Delta/Delta mice sampled on day 7 after poly(I:C) treatment (n = 5 for each time point). (E-H) Flow cytometry analysis (E and G) and graphical representation (F and H) of Helios expression in Foxp3 + Notch4 + and Foxp3 + Notch4 - lung tissue Treg cells in Foxp3 YFPCre mice sampled at the indicated dates after poly(I:C) treatment (n = 5 for each time point). Each symbol represents one mouse. Numbers in flow plots indicate percentages. Error bars indicate SEM. Statistical tests: pairwise comparisons of differential gene expression were computed using DESeq2 (A-C); Student''s unpaired two-tailed t test (D) and two-way ANOVA with Sidak''s post hoc analysis (F and H). * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001.

Conjugate

Green dye

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Fig. 3 UK4 increases Treg cells levels, while Fr1 decreases neutrophil levels. T regulatory cells (CD4+, CD25+, FoxP3+) were assessed in mesenteric lymph nodes (MLNs) ( a ) and were subsequently analysed for Helios expression ( b ), to investigate their origin as Helios+ cells exclusively originate in the thymus. Blood was also assessed for Treg cell levels ( c ), and plasma interleukin 10 (IL-10) levels ( d ). Similarly, neutrophil (CD11b+, LY6C mid , SSC high and CXCL1 levels were also investigated in peripheral blood ( e , f ). All data were normally distributed and analysed using a one-way ANOVA, followed by a Dunnett's post hoc test. Significant differences are depicted as * p < 0.05, ** p < 0.01; milk control compared to Kefir supplementation, $ p < 0.05 and $$ p < 0.01; undisturbed control compared to milk control. All data are expressed as mean +- SEM ( n = 11-12). Dots on each graph represent individual animals

Conjugate

Green dye

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

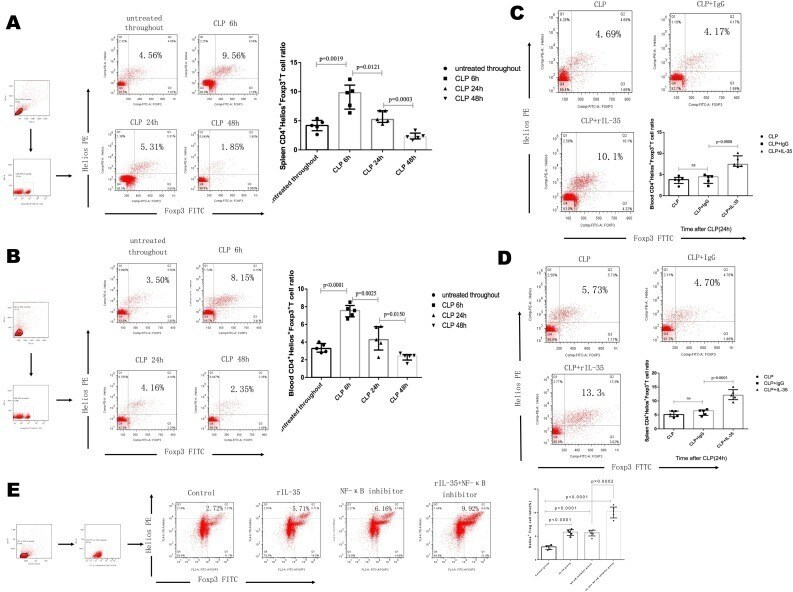

Fig. 6 C57BL/5 mice were assigned to the untreated group, CLP (6 h) group, CLP (24 h) group, CLP (48 h) group, CLP + IgG group and CLP + IL-35 group. Each group had n = 5, the indicators of each mouse were repeatedly tested 3 times, and the best data were selected as the representative data. (A, B) T cells were isolated from mouse spleens or peripheral blood. The frequency of Foxp3+Helios + Treg cells was subsequently determined by flow cytometry, and the results reflect five mice per time point. Foxp3+Helios + Treg cells gradually decreased in the blood and spleen with time in CLP-induced ARDS. (C, D) Treatment with recombinant IL-35 after CLP challenge restored Foxp3+Helios + Treg cells in the blood and spleens. (E) Naive CD4 + T lymphocytes induce the differentiation of CD4 + Foxp3+ Helios + T cells (Tregs) via the IL-35/NF-kappaB signalling pathway. The comparison between the two groups was performed by one-way ANOVA followed by LSD multiple comparisons test. Fig. 6

Conjugate

Green dye

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

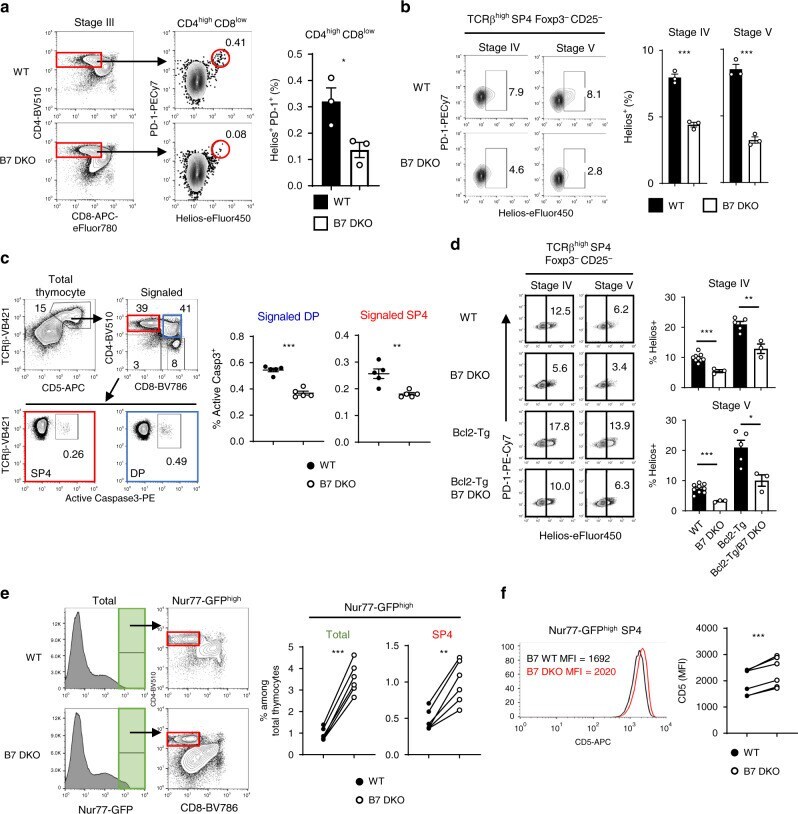

Fig. 2 In the absence of B7-CD28 co-stimulation, the frequency of cells undergoing clonal deletion at DP and CD4SP stages is decreased. a - d WT and B7 DKO thymocytes were gated on developmental stages as defined by TCR and CD69 expression in Fig. 1 . a Frequency of clonally deleting cells (Helios + PD-1 high ) was decreased in Stage III (CD4 + CD8 low ) thymocytes in B7 DKO mice. Each group n = 3. Data are representative of three independent experiments. p = 0.0365. b Frequency of clonally deleting cells (Helios + ) was decreased in Stage IV and V SP4 Tconv (CD25/Foxp3 nega ) in B7 DKO mice. Each group n = 3. Data are representative of three independent experiments. Stage IV p = 0.0004, Stage V p = 0.0003. c Frequency of clonally deleting cells (Active Caspase3 + ) was decreased in TCR-signaled DP and SP cells in B7 DKO mice. Each group n = 5. Data are pooled results of two independent experiments. Signaled DP p < 0.0001, Signaled SP4 p = 0.0038. d Frequency of clonally deleting cells (Helios + ) was decreased in Stage IV and V SP4 Tconv (CD25/Foxp3 nega ) in Bcl2-Tg/B7 DKO mice. WT n = 9, B7 DKO n = 3, Bcl2-Tg n = 5, Bcl2-Tg/B7 DKO n = 3. Data are pooled results of three independent experiments. Stage IV (WT and B7DKO) p = 0.0003, Stage IV (Bcl2-Tg and Bcl2-Tg/B7DKO) p = 0.0037, Stage V (WT and B7DKO) p = 0.0008, Stage V (Bcl2-Tg and Bcl2-Tg/B7DKO) p = 0.020. e Nur77-GFP high SP4 cells were increased in B7 DKO mice. Left panel, representative FACS plot. Right panel, quantif

Conjugate

Green dye

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

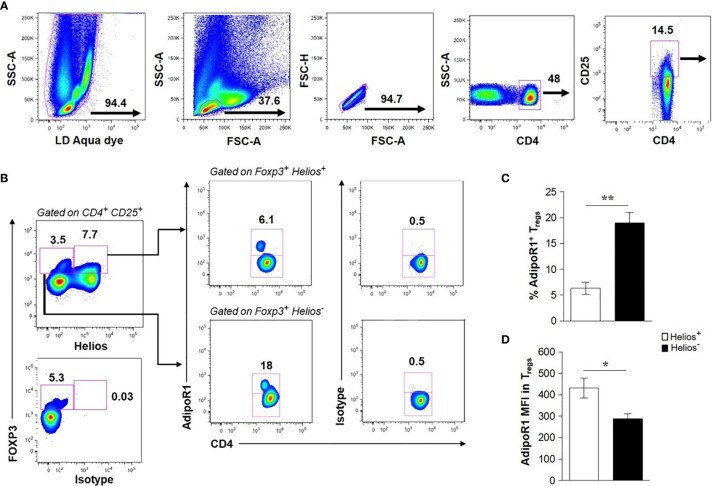

Figure 1 Human Circulating FOXP3 + Tregs Express AdipoR1. Flow cytometry analysis of AdipoR1 expression in Treg subsets was performed in peripheral whole blood from healthy donors. (A) Gating strategy of human circulating CD4 + CD25 + T cells. Dead cells, positive for LD Aqua dye, were excluded and lymphocytes were gated. CD4 + T cells were gated from single cells (excluding of doublets, FSC-A vs FSC-H) and analyzed for CD25 expression. (B) Helios + and Helios - FOXP3 + Tregs were gated on CD4 + CD25 + cells and then analyzed for AdipoR1 expression. FACS plots are from a representative experiment. (C) Frequency of AdipoR1 + cells and (D) MFI (mean fluorescence intensity) AdipoR1 in Helios + and Helios - FOXP3 + Tregs. Data were obtained from four independent experiments and are shown as the mean +- SEM of n=5. Student's t-test, *P< 0.05 and **P< 0.01 .

Conjugate

Green dye
