PA5-95635

antibody from Invitrogen Antibodies

Targeting: TIMM17A TIM17, TIM17A

Western blot (Data presented on provider website)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunohistochemistry (Supportive data in Antibodypedia)

Flow cytometry (Supportive data in Antibodypedia)

Antibody Data

Product number

PA5-95635

Provider

Invitrogen Antibodies

Product name

TIM17 Polyclonal Antibody

Antibody type

Polyclonal

Antigen

Synthetic peptide

Description

Reconstitute with 0.2 mL of distilled water to yield a concentration of 500 µg/mL. Positive Control - WB: rat heart tissue, rat lung tissue, rat liver tissue, rat brain tissue, mouse heart tissue, mouse lung tissue, mouse liver tissue, mouse brain tissue, mouse Neuro-2a whole cell, human placenta tissue, human K562 whole cell, human T-47D whole cell, human Caco-2 whole cell, human Hela whole cell, human THP-1 whole cell, human A431 whole cell, human A549 whole cell. IHC: human liver cancer tissue, human lung cancer tissue, human mammary cancer tissue, rat lung tissue, mouse lung tissue. ICC/IF: HELA cell, A549 cell, A549 cell. Flow: A431 cell.|Store at -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freeze-thaw cycles.

Reactivity

Human, Mouse, Rat

Host

Rabbit

Isotype

IgG

Vial size

100 µg

Concentration

500 µg/mL

Storage

-20°C

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescence analysis of TIM17 in HeLa cell. Antigen retrieval was performed on the tissue using IHC enzyme antigen retrieval reagent and blocked with 10% goat serum. Samples were incubated with TIM17 polyclonal antibody (Product # PA5-95635) at a 2 µg/mL dilution, followed by 488 conjugated goat anti-rabbit IgG using a 1:100 dilution and DAPI.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescence analysis of TIM17 in A549 cell. Antigen retrieval was performed on the tissue using IHC enzyme antigen retrieval reagent and blocked with 10% goat serum. Samples were incubated with TIM17 polyclonal antibody (Product # PA5-95635) at a 2 µg/mL dilution, followed by 488 conjugated goat anti-rabbit IgG using a 1:100 dilution and DAPI.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescence analysis of TIM17 in A549 cell. Antigen retrieval was performed on the tissue using IHC enzyme antigen retrieval reagent and blocked with 10% goat serum. Samples were incubated with TIM17 polyclonal antibody (Product # PA5-95635) at a 2 µg/mL dilution, followed by 488 conjugated goat anti-rabbit IgG using a 1:100 dilution and DAPI.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescence analysis of TIM17 in HeLa cell. Antigen retrieval was performed on the tissue using IHC enzyme antigen retrieval reagent and blocked with 10% goat serum. Samples were incubated with TIM17 polyclonal antibody (Product # PA5-95635) at a 2 µg/mL dilution, followed by 488 conjugated goat anti-rabbit IgG using a 1:100 dilution and DAPI.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescence analysis of TIM17 in A549 cell. Antigen retrieval was performed on the tissue using IHC enzyme antigen retrieval reagent and blocked with 10% goat serum. Samples were incubated with TIM17 polyclonal antibody (Product # PA5-95635) at a 2 µg/mL dilution, followed by 488 conjugated goat anti-rabbit IgG using a 1:100 dilution and DAPI.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescence analysis of TIM17 in A549 cell. Antigen retrieval was performed on the tissue using IHC enzyme antigen retrieval reagent and blocked with 10% goat serum. Samples were incubated with TIM17 polyclonal antibody (Product # PA5-95635) at a 2 µg/mL dilution, followed by 488 conjugated goat anti-rabbit IgG using a 1:100 dilution and DAPI.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescence analysis of TIM17 in HeLa cell. Antigen retrieval was performed on the tissue using IHC enzyme antigen retrieval reagent and blocked with 10% goat serum. Samples were incubated with TIM17 polyclonal antibody (Product # PA5-95635) at a 2 µg/mL dilution, followed by 488 conjugated goat anti-rabbit IgG using a 1:100 dilution and DAPI.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescence analysis of TIM17 in A549 cell. Antigen retrieval was performed on the tissue using IHC enzyme antigen retrieval reagent and blocked with 10% goat serum. Samples were incubated with TIM17 polyclonal antibody (Product # PA5-95635) at a 2 µg/mL dilution, followed by 488 conjugated goat anti-rabbit IgG using a 1:100 dilution and DAPI.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescence analysis of TIM17 in A549 cell. Antigen retrieval was performed on the tissue using IHC enzyme antigen retrieval reagent and blocked with 10% goat serum. Samples were incubated with TIM17 polyclonal antibody (Product # PA5-95635) at a 2 µg/mL dilution, followed by 488 conjugated goat anti-rabbit IgG using a 1:100 dilution and DAPI.

Immunohistochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry analysis of TIM17 in paraffin-embedded human liver cancer tissue. Antigen retrieval was performed on the tissue using citrate buffer (pH 6, 20 min) and blocked with 10% goat serum. Samples were incubated with TIM17 polyclonal antibody (Product # PA5-95635) at a 1 µg/mL dilution, followed by biotinylated goat anti-rabbit IgG (30 min, 37°C), and developed with Strepavidin-Biotin-Complex and DAB.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry analysis of TIM17 in paraffin-embedded human lung cancer tissue. Antigen retrieval was performed on the tissue using citrate buffer (pH 6, 20 min) and blocked with 10% goat serum. Samples were incubated with TIM17 polyclonal antibody (Product # PA5-95635) at a 1 µg/mL dilution, followed by biotinylated goat anti-rabbit IgG (30 min, 37°C), and developed with Strepavidin-Biotin-Complex and DAB.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry analysis of TIM17 in paraffin-embedded human mammary cancer tissue. Antigen retrieval was performed on the tissue using citrate buffer (pH 6, 20 min) and blocked with 10% goat serum. Samples were incubated with TIM17 polyclonal antibody (Product # PA5-95635) at a 1 µg/mL dilution, followed by biotinylated goat anti-rabbit IgG (30 min, 37°C), and developed with Strepavidin-Biotin-Complex and DAB.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry analysis of TIM17 in paraffin-embedded rat lung tissue. Antigen retrieval was performed on the tissue using citrate buffer (pH 6, 20 min) and blocked with 10% goat serum. Samples were incubated with TIM17 polyclonal antibody (Product # PA5-95635) at a 1 µg/mL dilution, followed by biotinylated goat anti-rabbit IgG (30 min, 37°C), and developed with Strepavidin-Biotin-Complex and DAB.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemical analysis of TIMM17A in paraffin-embedded section of mouse lung tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/mL rabbit anti-TIMM17A antibody (Product # PA5-95635) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

Flow cytometry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

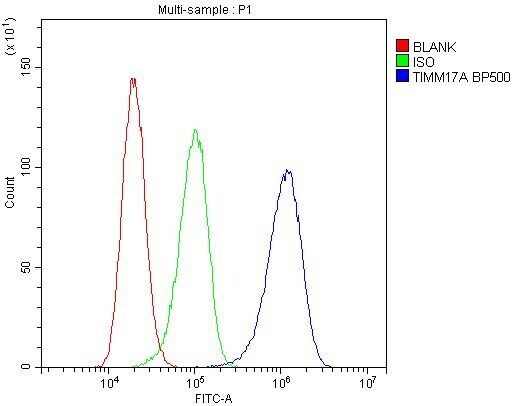

Flow Cytometry of TIM17 in A431 cells (blue line), isotype control rabbit IgG (green line) and unlabeled (red line). Samples were blocked with 10% goat serum, incubated with TIM17 Polyclonal Antibody (Product # PA5-95635) at a dilution of 1 μg (per 1x10^6 cells), followed by DyLight®488 conjugated goat anti-rabbit IgG (for 30 minutes at 20°C) using 5-10 μg (per 1x10^6 cells) dilution.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Flow Cytometry of TIM17 in A431 cells (blue line), isotype control rabbit IgG (green line) and unlabeled (red line). Samples were blocked with 10% goat serum, incubated with TIM17 Polyclonal Antibody (Product # PA5-95635) at a dilution of 1 μg (per 1x10^6 cells), followed by DyLight®488 conjugated goat anti-rabbit IgG (for 30 minutes at 20°C) using 5-10 μg (per 1x10^6 cells) dilution.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Flow cytometry analysis of TIM17 in A431 cells using TIM17 Polyclonal Antibody (Product # PA5-95635), shown in overlay histogram (blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum, and incubated with the primary antibody (1 μg/1x10^6 cells) for 30 min at 20°C. DyLight 488 conjugated goat anti-rabbit IgG (5-10 µg/1x10^6 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 µg/1x10^6) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
