711477

antibody from Invitrogen Antibodies

Targeting: PFKFB2

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Antibody Data

Product number

711477

Provider

Invitrogen Antibodies

Product name

PFKFB2 Recombinant Polyclonal Antibody

Antibody type

Polyclonal

Antigen

Synthetic peptide

Description

This antibody is predicted to react with Monkey, Cat, and Horse.

Concentration

0.5 mg/mL

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

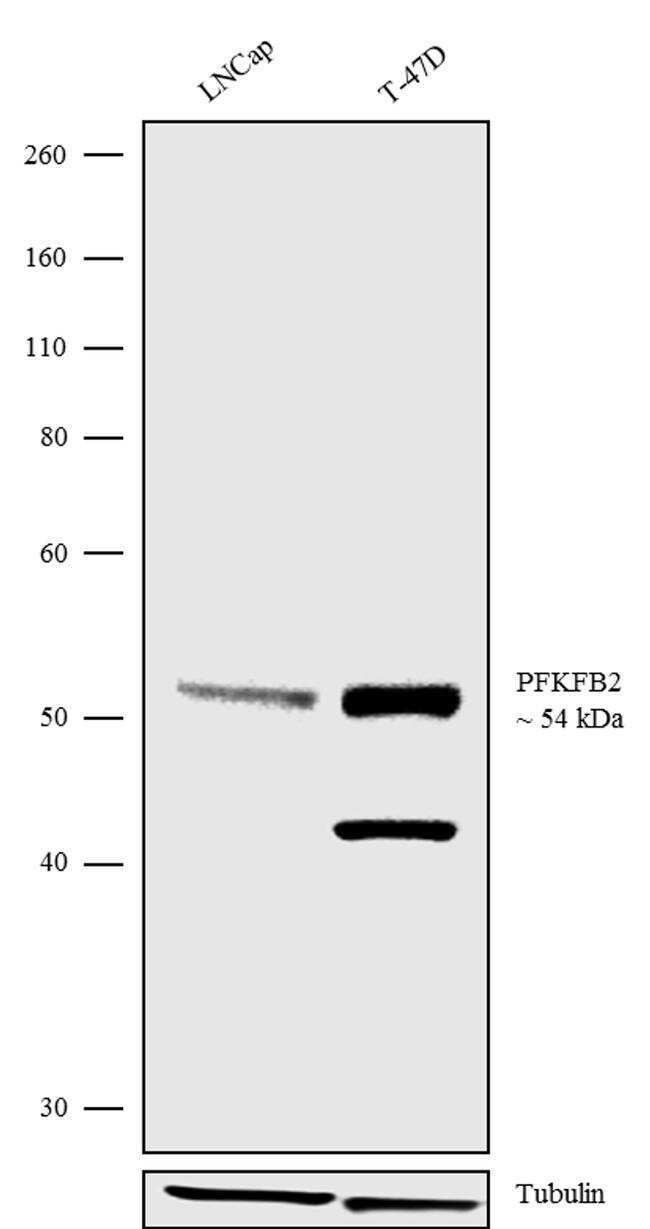

Western blot analysis was performed on Membrane extracts (30 µg lysate) of LNCap (Lane 1) and T-47D (Lane 2). The blots were probed with Anti-PFKFB2 Recombinant Rabbit Polyclonal Antibody (Product # 711477, 1 µg/mL). A 54 kDa band corresponding to PFKFB2 was observed across the cell lines tested. The blots were detected by chemiluminescence using Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, HRP conjugate (Product # A27036, 0.4 µg/mL, 1:2500 dilution). Known quantity of protein samples were electrophoresed using Novex® NuPAGE® 10% Bis-Tris gel (Product # NP0301BOX), XCell SureLock™ Electrophoresis System (Product # EI0002) and Novex® Sharp Pre-Stained Protein Standard (Product # LC5800). Resolved proteins were then transferred onto a nitrocellulose membrane with iBlot® Dry Blotting System (Product # IB21001). The membrane was probed with the relevant primary and secondary Antibody following blocking with 5% skimmed milk. Chemiluminescent detection was performed using Pierce™ ECL Western blotting Substrate (Product # 32106).

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

For immunofluorescence analysis, LNCap cells were fixed and permeabilized for detection of endogenous PFKFB2 using Anti- PFKFB2 Recombinant Rabbit Polyclonal Antibody (Product # 711477, 2µg/mL) and labeled with Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, Alexa Fluor® 488 conjugate (Product # A27034, 1:2000). Panel a) shows representative cells that were stained for detection and localization of PFKFB2 protein (green), Panel b) is stained for nuclei (blue) using SlowFade® Gold Antifade Mountant with DAPI (Product # S36938). Panel c) represents cytoskeletal F-actin staining using Rhodamine Phalloidin (Product # R415, 1:300). Panel d) is a composite image of Panels a, b and c clearly demonstrating cytoplasmic localization of PFKFB2. Panel e) represents control cells with no primary antibody to assess background. The images were captured at 60X magnification.
