58-0209-42

antibody from Invitrogen Antibodies

Targeting: MS4A1 B1, Bp35, CD20, MS4A2

Provider product page for 58-0209-42

Flow cytometry

Other assay

Antibody data

Antibody Data
Antigen structure
References [12]
Comments [0]
Validations
Flow cytometry [2]
Other assay [13]

Submit

Product number: 58-0209-42 - Provider product page
Provider: Invitrogen Antibodies
Product name: CD20 Monoclonal Antibody (2H7), Alexa Fluor™ 532, eBioscience™
Antibody type: Monoclonal
Antigen: Other
Description: Description: The 2H7 monoclonal antibody reacts with human CD20, a 33-36 kDa transmembrane protein. CD20 is expressed by developing B cells as well as mature B cells but not plasma cells. CD20 has been detected at low levels on a small subset of mature T cells. It is suggested that CD20 plays a role in B-cell activation. Applications Reported: This 2H7 antibody has been reported for use in flow cytometric analysis. Applications Tested: This 2H7 antibody has been pre-diluted and tested by flow cytometric analysis of normal human peripheral blood cells. This may be used at 5 µL (0.06 µg) per test. A test is defined as the amount (µg) of antibody that will stain a cell sample in a final volume of 100 µL. Cell number should be determined empirically but can range from 10^5 to 10^8 cells/test. Alexa Fluor 532 is excited with the Green laser (532 nm) and emits at 561 nm. This cannot be used with the Yellow-Green laser (561 nm). We recommend using a 560/14 band pass filter. Please make sure that your instrument is capable of detecting this fluorochrome. Excitation: 532 nm; Emission: 561 nm; Laser: Green Laser
Reactivity: Human
Host: Mouse
Conjugate: Yellow dye
Isotype: IgG
Antibody clone number: 2H7
Vial size: 100 Tests
Concentration: 5 µL/Test
Storage: 4°C, store in dark, DO NOT FREEZE!

MS4A1 protein structure - 58-0209-42 shown in red.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: NULL
Conjugate: Yellow dye

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Example staining and gating. Cryopreserved PBMCs from healthy human donors were thawed, rested over night, and stained as outlined in the online protocol. The gating strategy for the identification of T cell subsets is shown.
Conjugate: Yellow dye

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Figure 1 Cell sorting of precursor B cells subsets from CD10 positively selected cells. Immunomagnetic selection and subsequent FACS were used to isolate the five populations from pediatric and adult human BM. Shown are the FACS dot plots with sorting gates to obtain CD34 + CD19 - ProB cells, CD34 + CD19 + PreBI cells, CD34 - CD19 + CD20 dim PreBII large cells, CD34 - CD19 + CD20 - PreBII small cells, and CD34 - CD19 + CD20 high IgM + Immature B cells.
Conjugate: Yellow dye

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Fig 5 Immunohistochemistry for Bcl-xL in the RA, LMAN, HVC and Area X of the Bengalese finch (visualized by nickel intensified DAB). A1-D4: Labeled cells in the RA at post-hatching day (P) 35 (A1, A2) and P45 (A3-A4), in the LMAN at P15 (B1, B2) and P45 (B3, B4), in the HVC at P45 (C1, C2) and in the adult (C3, C4), and in Area X at P15 (D1, D2) and P45 (D3, D4). E-H: Comparison of the densities of Bcl-xL-positive cells in the RA (E), LMAN (F), HVC (G) and Area X (H) between males and females. The borders of the song nuclei (dashed lines) were determined with the help of another set of Nissl-stained sections. The Nissl-defined border of the female Area X was difficult to clearly identify, and the dashed lines in D2 and D4 indicate the approximate region corresponding to the male Area X. Dorsal is up and caudal is right. Scale bar = 200 mum in A1-C4 and 300 mum in D1-D4. The data are expressed as the mean +- SEM. * P < 0.05, ** P < 0.01.
Conjugate: Yellow dye

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Fig. 4 IGF-1-dependent induction of cancer stem cell markers CD20, CD133, and CD271 (NGFR) on melanoma cells. a Melanoma cells (WM3749) co-cultured with TAB cells (days 3 and 9) show high expression of CD20 ( middle and right panels ) compared with the control culture ( left panel ) as determined by FACS analysis. Melanoma cells were co-stained with anti-CD146 (MCAM, PE-conjugated) and anti-CD20 (FITC-conjugated) antibodies to distinguish them from B cells, which are CD146-negative;percentages indicate co-expression of both markers on the malignant cells. b Melanoma cells (WM3749) co-cultured with TAB cells (day 6) show high expression of CD20, CD133 and CD271 ( left panel ) compared with minimal or low expression of those markers when tumor cells are co-cultured with NB cells ( right panel ). Co-culture of melanoma cells with TAB cells did not modulate the expression of CD144 (vascular-endothelial cadherin marker) that are normally expressed by aggressive melanomas (data not shown). Induction of CD20, CD133, and CD271 was blocked when anti-IGF-1 neutralizing antibody (10 mug/ml) was used in the co-culture ( middle panel ). Anti-IL-1, anti-PDGF or anti-VEGF antibodies had no effect on CD marker expression (data not shown). Percentages indicate co-expression of CD20, CD133, or CD271on CD146 + melanoma cells. Results are representative of two independent experiments. c Melanoma cells(WM3749, WM989 and 451Lu) cultured in the presence of recombinant IGF-1 (25 ng/ml) for 5 days sh
Conjugate: Yellow dye

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Fig. 2 Long-term expansion of human germinal center B cells ex vivo. a Primary human GC B cells were transduced with the indicated oncogenes and oncogene combinations and cultured separately for up to 120 days. Graph shows calculated theoretical absolute cell numbers (+-s.e.m., n = 3). Viable cells were assessed by trypan blue exclusion. Source data are provided as a Source Data file. b Primary human GC B cells were transduced with different oncogenes and oncogene combinations and monitored by flow cytometry. Graph shows the change in cell viability assessed by scatter characteristic by flow cytometry ( +- s.e.m., n = 3). Source data are provided as a Source Data file. c Primary human GC B cells were transduced with BCL2 in combination with other transcription factors in a pooled, competitive culture. Graph shows relative abundance of transcription factors or their mutant versions over four different timepoints ( n = 3). d Primary human GC B cells were transduced with the oncogenic cocktail BCL2 and BCL6 and cultured to day 73. Representative flow cytometry analysis ( n = 3) for the expression of the GC B cell markers CD38, CD20, CD19, CD80, CD22, CD95, CXCR4, and CD86. Red histograms show GC B cells compared to primary human naive B cells (blue). e Heat map of gene expression of freshly isolated GC B cells ( n = 3), transduced GC B cells ( BCL2-BCL6, BCL2-MYC ) cultured ex vivo for 5 or 73 days ( n = 3), plasma cell line ( n = 1), naive B cells ( n = 1), and lymphoma cell li
Conjugate: Yellow dye

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Figure 4 IL-33 + cells in Duodenal Mucosae of active celiac patients. Representative images of immunofluorescence analysis of duodenal sections of active CD patients. IL-33 (green), nuclei (blue). Other markers in red. In some images the epithelial compartment was delimited with white dashed lines. (A). CD31 + endothelial cells expressing IL-33 (white arrows). (B) Smooth muscle actin in red and white lines delineated intestinal crypts. The white arrows point to SMA + IL-33 + cells which are located around vascular structures and crypts. (C) Some of the IL-33 + CD90 + cells are pointed by a white arrow. (D, E) CD45+IL-33+ cells in lamina propria , but not in epithelial compartment. (F) A few IL-33 + CD11c + where close to the epithelium of ACD patients. (G) Some of the CD20 + IL-33 + cells are pointed with white arrows. (H) Some of the lamina propria double positive IL-33 + CD64 + are pointed with white arrows. (I) EPCAM + IL-33 + cells are pointed with white arrows. The images were taken with 20X and 63X objectives from the SP5 Leica Microscope and objectives 20X, 40X and 60X from the Apotome Zeiss microscope.
Conjugate: Yellow dye

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Figure 1 Identification of dental pulp stem cells (DPSCs). Human DPSCs were positive for the cell surface antigens CD73, CD90, and CD105, as well as negative for CD14, CD20, CD34, and CD45 demonstrated by flow cytometry ( A ). DPSCs were cultured under osteogenic ( B , 14 days) or adipogenic ( C , 21 days) conditions, and showed mineralized nodules and lipid clusters as revealed by alizarin red and oil red staining, respectively. Scale bar = 400 ( B ) or 100 ( C ) mum.
Conjugate: Yellow dye

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image

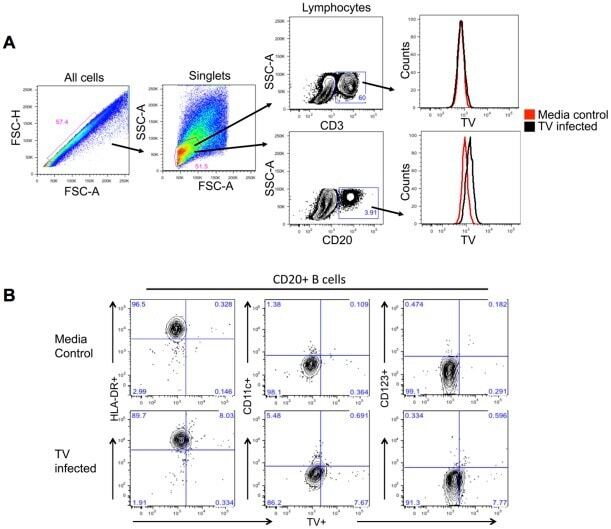

Experimental details: Figure 6 Flow cytometry detection of TV antigens-containing cells in vitro . A- PBMCs isolated from healthy rhesus macaques were used for in vitro inoculation with TV. After being cultured in vitro for 6 days, cells were sorted out into CD3+ T cell and CD20+ B cell populations. Presence of TV antigens was detected in CD20+ B cells as shown by histograms (black peak). B- The CD20+ B cells were further subdivided into populations expressing the HLA-DR, CD11c or CD123 antigens. Presence of TV was revealed predominantly in CD20+HLA-DR+ cells while some of the other lymphocyte populations including the CD20+CD11c+ and CD20+CD123+ B cells also contained TV antigens.
Conjugate: Yellow dye

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image

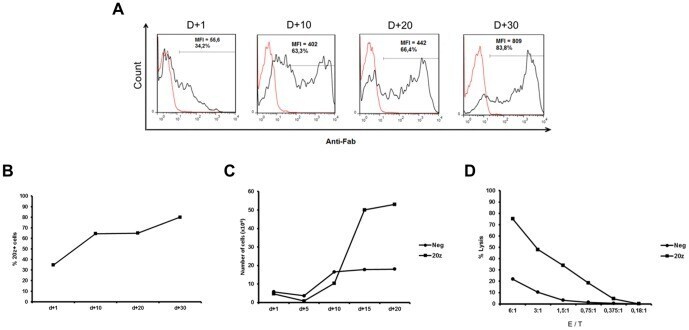

Experimental details: Figure 8 T cell electroporation with Chimeric Antigen Receptor (CAR) results in stable gene expression conferring target-specific cytotoxicity. PBMCs from one donor were electroporated using 1SM buffer, 20 ug of pT3-20z plasmid and 0,5 ug of SB100x transposase plasmid. One day later, lymphocytes were stimulated with irradiated L388 cells and CAR expression was evaluated until d+30 by flow cytometry analysis using an anti-fab antibody. (A) Representative histograms of 20z CAR expression at d+1, d+10, d+20 and d+30 after electroporation (gray line = non electroporated cells stained anti-Fab; black line = lymphocytes electroporated with pT3-20z). (B) Analysis of 20z CAR expression until d+30 summarizing data of Figure 8A . (C) Kinetics of expansion of control mock electroporated (Neg) or 20z+ lymphocytes after stimulation with L388 cells. (D) Expanded cells were used in different effector/target (E/T) ratios in a cytotoxic assay against the CD19+/CD20+ Nalm-6 GFP+target cell line; Neg = CTLs not electroporated.
Conjugate: Yellow dye

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Fig. 3 Allogeneic HCT in SHIV-C Infected, cART-treated RM. a Schematic of SHIV-C infection and allogeneic bone marrow transplantation strategy in SHIV-C infected, cART-treated RM. b Plasma Viral Loads (PVL) were measured longitudinally following transplant as specified in Fig. 1a . c White blood count (WBC) (x10 3 /uL). d Absolute Neutrophil Count (ANC) (x10 3 /uL). e Absolute Lymphocyte Count (ALC) (x10 3 /uL). f Platelet Count (PLT) (x10 3 /uL). g Hemoglobin (Hgb) concentration (g/dL). h Percent whole blood donor chimerism, measured by microsatellite analysis. i Percent donor myeloid (CD11b + CD3-) chimerism, measured flow cytometrically. j Percent donor CD4 + T cell (CD3+ CD4+ CD8- CD20- CD11b- lymphocytes) chimerism, measured flow cytometrically. k Percent donor CD8 + T cell (CD3+ CD8+ CD4- CD20- CD11b- lymphocytes) chimerism, measured by flow cytometry
Conjugate: Yellow dye

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Fig. 1 Marker verification and validation of independent markers in BALL cells by immunofluorescence and flow cytometry. The expression of CD20 ( a - c ) and CD38 ( d - f ), were positive on BALL cell membranes. CD90f ( g - i ) and CD49f ( j , k ) were not expressed in BALL cells. DAPI indicates the cell nucleus. This finding was confirmed via the conducted flow cytometry analysis. Scale bar = 100 mum
Conjugate: Yellow dye

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Fig. 5 Detection of testicular leukemia model mice. HE staining: a In normal C57BL/6 mice, a large number of spermatogenic cells and sperm cells could be seen in testis tissue. b In the model group, after 10 4 cells were injected to establish the model for 3 weeks, spermatogenic cells and sperm cells in the testis tissue decreased with the infiltration of BALL cells. Immunohistochemistry: c In normal C57BL/6 mice, the expression of CD20 protein in testicular tissue was negative. d In the model group, a large number of CD20-positive BALL cells infiltrated into the seminiferous tubule, spermatogenic cells and sperm cells in the testis tissue decreased. e Negative control. Scale bar = 100 mum
Conjugate: Yellow dye
