PA5-79743

antibody from Invitrogen Antibodies

Targeting: NME1 NDPKA, NM23, NM23-H1

Provider product page for PA5-79743

Western blot

Flow cytometry

Antibody data

Antibody Data
Antigen structure
References [0]
Comments [0]
Validations
Western blot [3]
Flow cytometry [7]

Submit

Product number: PA5-79743 - Provider product page
Provider: Invitrogen Antibodies
Product name: NME1 Polyclonal Antibody
Antibody type: Polyclonal
Antigen: Synthetic peptide
Description: Reconstitute with 0.2 mL of distilled water to yield a concentration of 500 µg/mL. Positive Control - WB: human Hela whole cell, human A431 whole cell, human HepG2 whole cell, human K562 whole cell, human MCF-7 whole cell, human A375 whole cell, human MOLT-4 whole cell, rat brain tissue, rat liver tissue, rat lung tissue, rat C6 whole cell, mouse brain tissue, mouse liver tissue, mouse lung tissue, mouse NIH/3T3 whole cell. Flow: HEL cell.
Reactivity: Human, Mouse, Rat
Host: Rabbit
Isotype: IgG
Vial size: 100 µg
Concentration: 500 µg/mL
Storage: -20°C

NME1 protein structure - PA5-79743 shown in red.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image

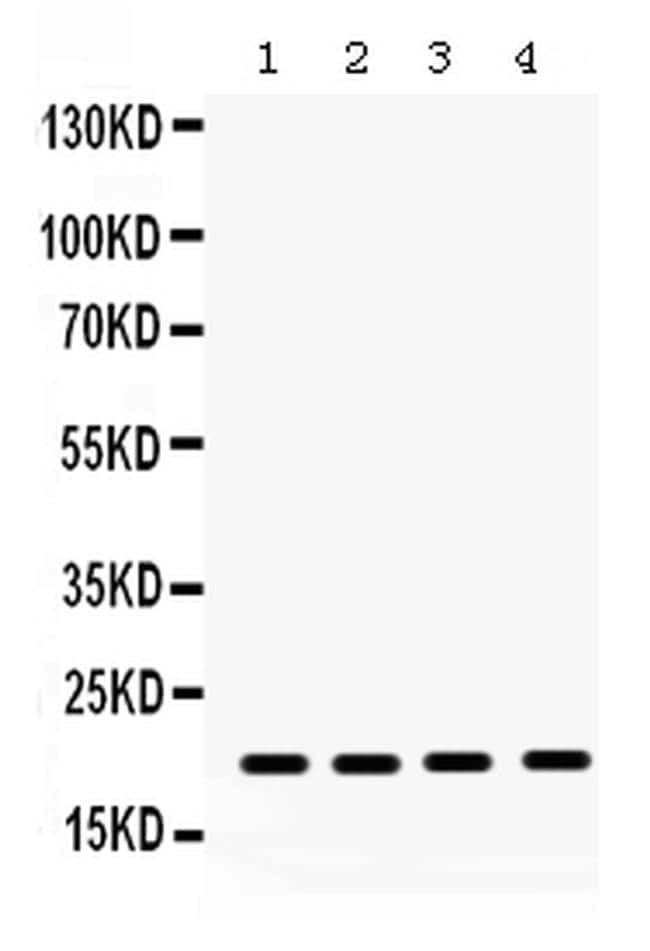

Experimental details: Western blot analysis of NME1 in Lane 1: rat brain tissue lysate, Lane 2: rat liver tissue lysate, Lane 3: HeLa whole cell lysate, Lane 4: NIH3T3 whole cell lysate using 40-50 µg per well. Sample was incubated with NME1 (Product # PA5-79743) at a dilution of 0.5 µg/mL.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image

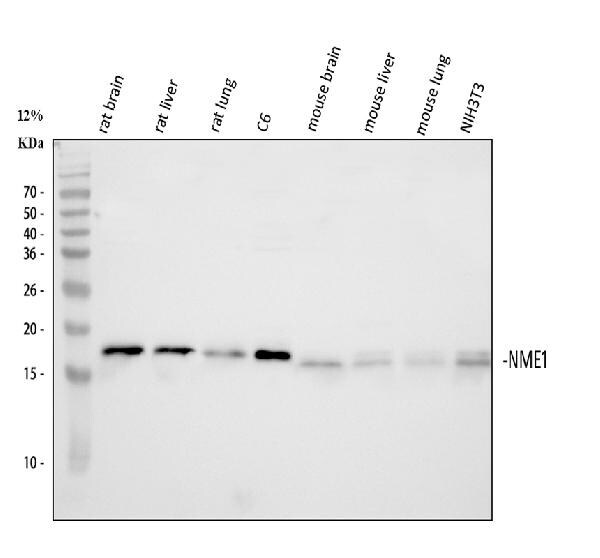

Experimental details: Western blot analysis of NME1 using NME1 Polyclonal Antibody (Product # PA5-79743). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel)/90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 µg of sample under reducing conditions. Lane 1: rat brain tissue lysates. Lane 2: rat liver tissue lysates. Lane 3: rat lung tissue lysates. Lane 4: rat C6 whole cell lysates. Lane 5: mouse brain tissue lysates. Lane 6: mouse liver tissue lysates. Lane 7: mouse lung tissue lysates. Lane 8: mouse NIH/3T3 whole cell lysates. After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with NME1 Polyclonal Antibody at 0.5 µg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5,000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for NME1 at approximately 17 kDa. The expected band size for NME1 is at 17 kDa.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image

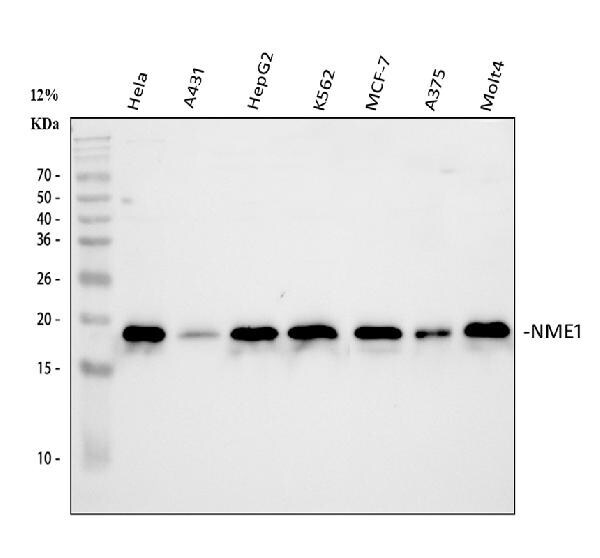

Experimental details: Western blot analysis of NME1 using NME1 Polyclonal Antibody (Product # PA5-79743). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel)/90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 µg of sample under reducing conditions. Lane 1: human Hela whole cell lysates. Lane 2: human A431 whole cell lysates. Lane 3: human HepG2 whole cell lysates. Lane 4: human K562 whole cell lysates. Lane 5: human MCF-7 whole cell lysates. Lane 6: human A375 whole cell lysates. Lane 7: human MOLT-4 whole cell lysates. After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with NME1 Polyclonal Antibody at 0.5 µg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5,000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for NME1 at approximately 17 kDa. The expected band size for NME1 is at 17 kDa.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image

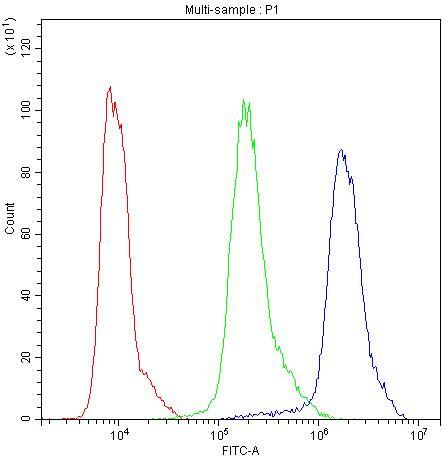

Experimental details: Flow Cytometry of NME1 in U251 cells (blue line), isotype control rabbit IgG (green line) and unlabeled (red line). Samples were blocked with 10% goat serum, incubated with NME1 Polyclonal Antibody (Product # PA5-79743) at a dilution of 1 μg (per 1x10^6 cells), followed by DyLight®488 conjugated goat anti-rabbit IgG (for 30 minutes at 20°C) using 5-10 μg (per 1x10^6 cells) dilution.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image

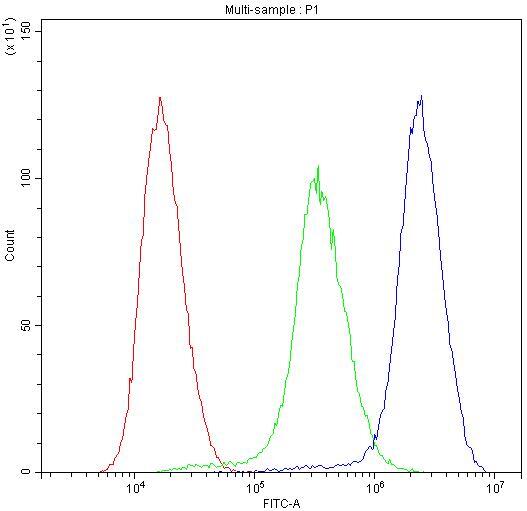

Experimental details: Flow Cytometry of NME1 in HeLa cells (blue line), isotype control rabbit IgG (green line) and unlabeled (red line). Samples were blocked with 10% goat serum, incubated with NME1 Polyclonal Antibody (Product # PA5-79743) at a dilution of 1 μg (per 1x10^6 cells), followed by DyLight®488 conjugated goat anti-rabbit IgG (for 30 minutes at 20°C) using 5-10 μg (per 1x10^6 cells) dilution.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image

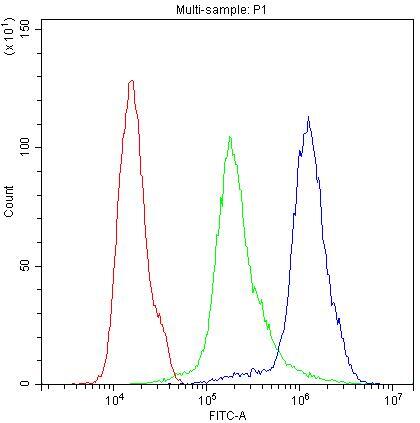

Experimental details: Flow Cytometry of NME1 in A549 cells (blue line), isotype control rabbit IgG (green line) and unlabeled (red line). Samples were blocked with 10% goat serum, incubated with NME1 Polyclonal Antibody (Product # PA5-79743) at a dilution of 1 μg (per 1x10^6 cells), followed by DyLight®488 conjugated goat anti-rabbit IgG (for 30 minutes at 20°C) using 5-10 μg (per 1x10^6 cells) dilution.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Flow Cytometry of NME1 in U251 cells (blue line), isotype control rabbit IgG (green line) and unlabeled (red line). Samples were blocked with 10% goat serum, incubated with NME1 Polyclonal Antibody (Product # PA5-79743) at a dilution of 1 μg (per 1x10^6 cells), followed by DyLight®488 conjugated goat anti-rabbit IgG (for 30 minutes at 20°C) using 5-10 μg (per 1x10^6 cells) dilution.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Flow Cytometry of NME1 in HeLa cells (blue line), isotype control rabbit IgG (green line) and unlabeled (red line). Samples were blocked with 10% goat serum, incubated with NME1 Polyclonal Antibody (Product # PA5-79743) at a dilution of 1 μg (per 1x10^6 cells), followed by DyLight®488 conjugated goat anti-rabbit IgG (for 30 minutes at 20°C) using 5-10 μg (per 1x10^6 cells) dilution.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image
Experimental details: Flow Cytometry of NME1 in A549 cells (blue line), isotype control rabbit IgG (green line) and unlabeled (red line). Samples were blocked with 10% goat serum, incubated with NME1 Polyclonal Antibody (Product # PA5-79743) at a dilution of 1 μg (per 1x10^6 cells), followed by DyLight®488 conjugated goat anti-rabbit IgG (for 30 minutes at 20°C) using 5-10 μg (per 1x10^6 cells) dilution.

Supportive validation

Submitted by: Invitrogen Antibodies (provider)
Main image

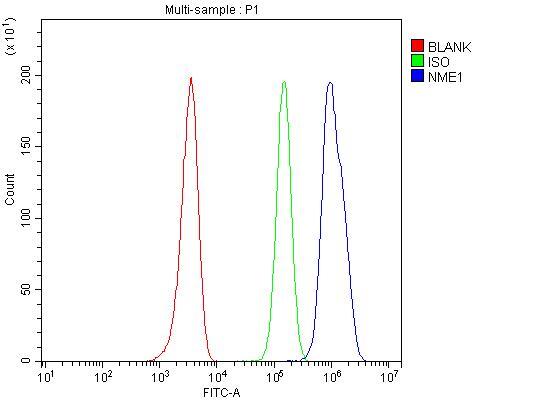

Experimental details: Flow cytometry analysis of NME1 in HEL cells using NME1 Polyclonal Antibody (Product # PA5-79743), shown in overlay histogram (blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum, and incubated with the primary antibody (1 μg/1x10^6 cells) for 30 min at 20°C. DyLight 488 conjugated goat anti-rabbit IgG (5-10 µg/1x10^6 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 µg/1x10^6) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
