3604-MSM1-P1

antibody from Invitrogen Antibodies

Targeting: TNFRSF9 4-1BB, CD137, ILA

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunohistochemistry (Supportive data in Antibodypedia)

Flow cytometry (Supportive data in Antibodypedia)

Other assay (Supportive data in Antibodypedia)

Antibody Data

Product number

3604-MSM1-P1

Provider

Invitrogen Antibodies

Product name

CD137/4-1BB/TNFRSF9 Monoclonal Antibody (4-1BB, 3201)

Antibody type

Monoclonal

Antigen

Recombinant protein fragment

Reactivity

Human

Host

Mouse

Isotype

IgG

Antibody clone number

4-1BB, 3201

Vial size

100 µg

Concentration

200 µg/mL

Storage

4° C

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

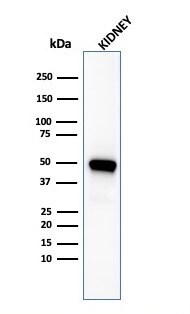

Western Blot analysis of kidney tissue lysate using CD137, 4-1BB, TNFRSF9 Monoclonal Antibody (Product # 3604-MSM1-P1).

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunocytochemistry/Immunofluorescence analysis of MeOH-fixed HEK293 cells using CD137, 4-1BB, TNFRSF9 Monoclonal Antibody (Product # 3604-MSM1-P1) followed by goat anti-mouse IgG-CF488 (Green). Nuclei are stained with Reddot (red)..

Immunohistochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry (Paraffin) analysis performed in formalin fixed, paraffin-embedded human cerebellum using CD137, 4-1BB, TNFRSF9 Monoclonal Antibody (Product # 3604-MSM1-P1).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry (Paraffin) analysis performed in formalin fixed, paraffin-embedded human renal cell carcinoma using CD137, 4-1BB, TNFRSF9 Monoclonal Antibody (Product # 3604-MSM1-P1).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry (Paraffin) analysis performed in formalin fixed, paraffin-embedded human renal cell carcinoma using CD137, 4-1BB, TNFRSF9 Monoclonal Antibody (Product # 3604-MSM1-P1).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry (Paraffin) analysis performed in formalin fixed, paraffin-embedded human spleen using CD137, 4-1BB, TNFRSF9 Monoclonal Antibody (Product # 3604-MSM1-P1).

Flow cytometry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

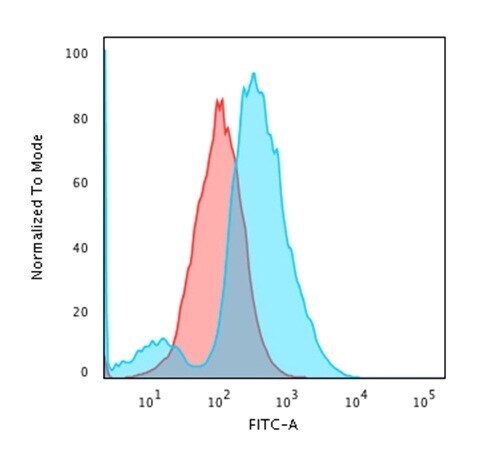

Flow Cytometry analysis of MeOH-fixed HEK293 cells using CD137, 4-1BB, TNFRSF9 Monoclonal Antibody (Product # 3604-MSM1-P1) followed by goat anti-mouse IgG-CF488 (Blue); Isotype Control (Red).

Other assay

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

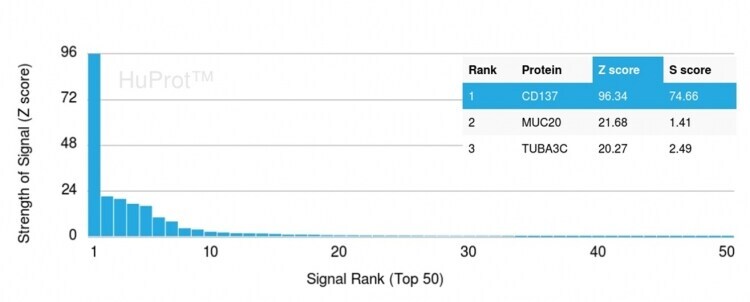

Analysis of Protein Array containing more than 19,000 full-length human proteins CD137, 4-1BB, TNFRSF9 Monoclonal Antibody (Product # 3604-MSM1-P1). Z- and S- Score: The Z-score represents the strength of a signal that a monoclonal antibody (MAb) (in combination with a fluorescently-tagged anti-IgG secondary antibody) produces when binding to a particular protein on the HuProtTM array. Z-scores are described in units of standard deviations (SD's) above the mean value of all signals generated on that array. If targets on HuProtTM are arranged in descending order of the Z-score, the S-score is the difference (also in units of SD's) between the Z-score. S-score therefore represents the relative target specificity of a MAb to its intended target. A MAb is considered to specific to its intended target, if the MAb has an S-score of at least 2.5. For example, if a MAb binds to protein X with a Z-score of 43 and to protein Y with a Z-score of 14, then the S-score for the binding of that MAb to protein X is equal to 29.
