M03420-1

antibody from Boster Biological Technology

Targeting: SMN2 BCD541, GEMIN1, SMNC, TDRD16B

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Data presented on provider website)

Immunohistochemistry (Data presented on provider website)

Antibody Data

Product number

M03420-1

Provider

Boster Biological Technology

Product name

Anti-SMN1/2 Antibody Picoband™ (monoclonal, 2B10)

Antibody type

Monoclonal

Description

Mouse IgG monoclonal antibody for SMN1/2 detection. Tested with WB, IHC-P, ICC in Human;Mouse;Rat.

Reactivity

Human, Mouse, Rat

Host

Mouse

Isotype

IgG

Antibody clone number

2B10

Vial size

100μg/vial

Concentration

0.5-1mg/ml, actual concentration vary by lot. Use suggested dilution ratio to decide dilution procedure.

Storage

At -20°C for one year. After reconstitution, at 4°C for one month. It can also be aliquoted and stored frozen at -20°C for a longer time. Avoid repeated freezing and thawing.

Handling

Add 0.2ml of distilled water will yield a concentration of 500ug/ml.

Western blot

Supportive validation

Submitted by

Boster Biological Technology (provider)

Main image

Experimental details

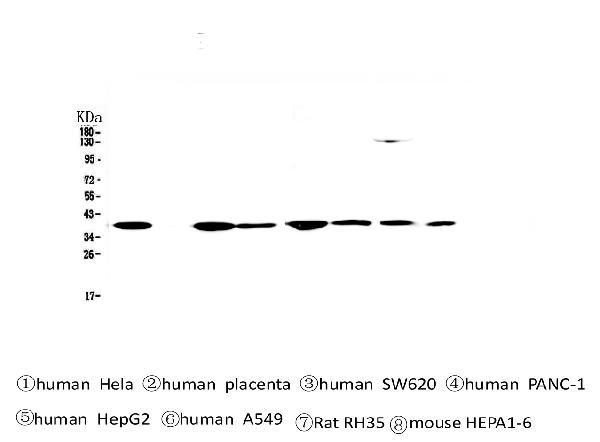

Western blot analysis of SMN1/2 using anti-SMN1/2 antibody (M03420-1). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions. Lane 1: human Hela whole cell lysates, Lane 2: human placenta tissue lysates, Lane 3: human SW620 whole cell lysates, Lane 4: human PANC-1 whole cell lysates, Lane 5: human HepG2 whole cell lysates, Lane 6: human A549 whole cell lysates, Lane 7: rat RH35 whole cell lysates, Lane 8: mouse HEPA1-6 whole cell lysates. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-SMN1/2 antigen affinity purified monoclonal antibody (Catalog # M03420-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a Biotin Conjugated goat anti-mouse IgG secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001) with Tanon 5200 system.

Additional image
