Antibody data
- Antibody Data
- Antigen structure
- References [1]
- Comments [0]
- Validations
- Western blot [1]
Submit
Validation data
Reference
Comment
Report error
- Product number
- A02812-3 - Provider product page
- Provider
- Boster Biological Technology
- Product name
- Anti-ERK5/MAPK7 Antibody Picoband™
- Antibody type
- Polyclonal
- Description
- Rabbit IgG polyclonal antibody for ERK5/MAPK7 detection. Tested with WB, IHC-P, Direct ELISA in Human;Mouse;Rat;Monkey.
- Reactivity
- Human, Mouse, Rat, Simian
- Host
- Rabbit
- Vial size
- 100μg/vial
- Concentration
- Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
- Storage
- At -20°C for one year. After reconstitution, at 4°C for one month. It can also be aliquoted and stored frozen at -20°C for a longer time. Avoid repeated freezing and thawing.
- Handling
- Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Submitted references Effects of the Wenyang Zhenshuai Granule on the Expression of LncRNA-MiR143HG/miR-143 Regulating ERK5 in H9C2 Cardiomyocytes.
Xu Z, Chen X, Chen Q, Cai H
Evidence-based complementary and alternative medicine : eCAM 2021;2021:6431007
Evidence-based complementary and alternative medicine : eCAM 2021;2021:6431007
No comments: Submit comment
Supportive validation
- Submitted by
- Boster Biological Technology (provider)
- Main image
- Experimental details

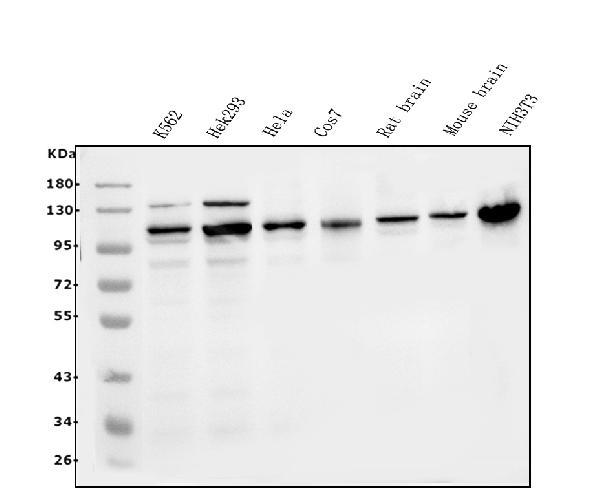

- Western blot analysis of ERK5/MAPK7 using anti-ERK5/MAPK7 antibody (A02812-3). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions. Lane 1: human K562 whole cell lysates, Lane 2: human Hek293 whole cell lysates, Lane 3: human Hela whole cell lysates, Lane 4: monkey Cos-7 whole cell lysates, Lane 5: rat brain tissue lysates, Lane 6: mouse brain tissue lysates, Lane 7: mouse NIH/3T3 whole cell lysates. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-ERK5/MAPK7 antigen affinity purified polyclonal antibody (Catalog # A02812-3) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for ERK5/MAPK7 at approximately 115-120KD. The expected band size for ERK5/MAPK7 is at 88KD.
- Additional image
