MA5-45721

antibody from Invitrogen Antibodies

Targeting: SPTBN4 KIAA1642, SPTBN3

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunohistochemistry (Recommended by provider)

Antibody Data

Product number

MA5-45721

Provider

Invitrogen Antibodies

Product name

Spectrin beta-4 Monoclonal Antibody (N393/2), APC

Antibody type

Monoclonal

Antigen

Other

Description

A 1:100 dilution of MA5-45721 was sufficient for detection of Beta 4 Spectrin in 20 µg of mouse brain lysate by ECL immunoblot analysis using Goat anti-mouse IgG:HRP as the secondary antibody. |Detects approximately >200kDa. Does not cross react with other Beta-spectrins This antibody was formerly sold as clone S393-2.

Reactivity

Human, Mouse, Rat

Host

Mouse

Isotype

IgG

Antibody clone number

N393/2

Vial size

100 µg

Concentration

1 mg/mL

Storage

4°C

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

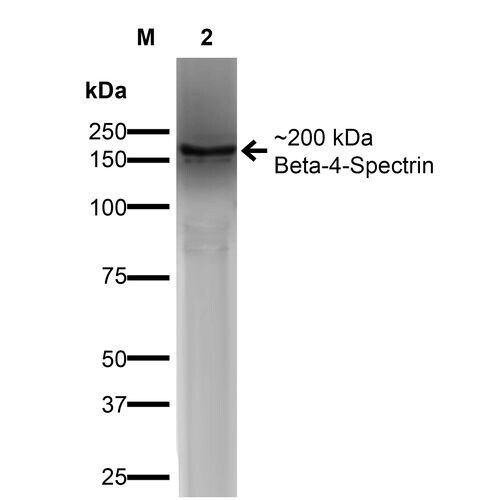

Western Blot analysis of Monkey COS-Beta-4-Spectrin-His showing detection of ~ 200 kDa Beta-4-Spectrin protein. Lane 1: MW Ladder. Lane 2: COS-Beta-4-Spectrin-His. Load: 15 µg. Blocking: 2% GE Healthcare Blocker for 1 hour at RT. Samples were incubated with Beta-4-Spectrin monoclonal antibody (Product # MA5-45721) at 1:1,000 for 16 hours at 4°C, followed by Goat Anti-Mouse IgG: HRP at 1:200 for 1 hour at RT. Color Development: ECL solution for 6 min at RT. Predicted/Observed Size: ~ 200 kDa.

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

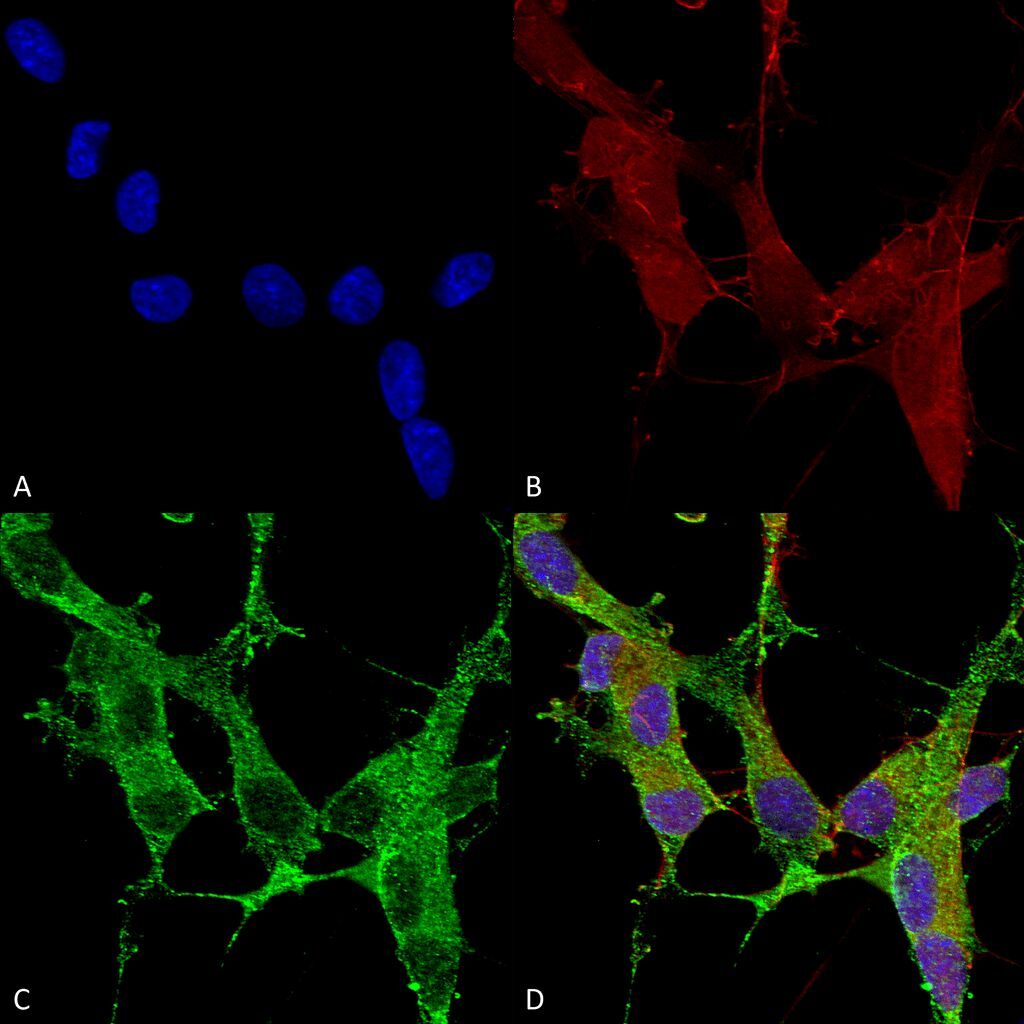

Immunocytochemistry/Immunofluorescence analysis using human neuroblastoma cells. Fixation involved 4% PFA for 15 min. Samples were incubated with beta 4 Spectrin monoclonal antibody (Product # MA5-45721) at 1:100 for overnight at 4°C with slow rocking, followed by AlexaFluor 488 at 1:1,000 for 1 hour at RT. Counterstain used was Phalloidin-iFluor 647 (red) F-Actin stain; Hoechst (blue) nuclear stain at 1:800, 1.6mM for 20 min at RT. (A) Hoechst (blue) nuclear stain. (B) Phalloidin-iFluor 647 (red) F-Actin stain. (C) beta 4 Spectrin antibody (D) Composite.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

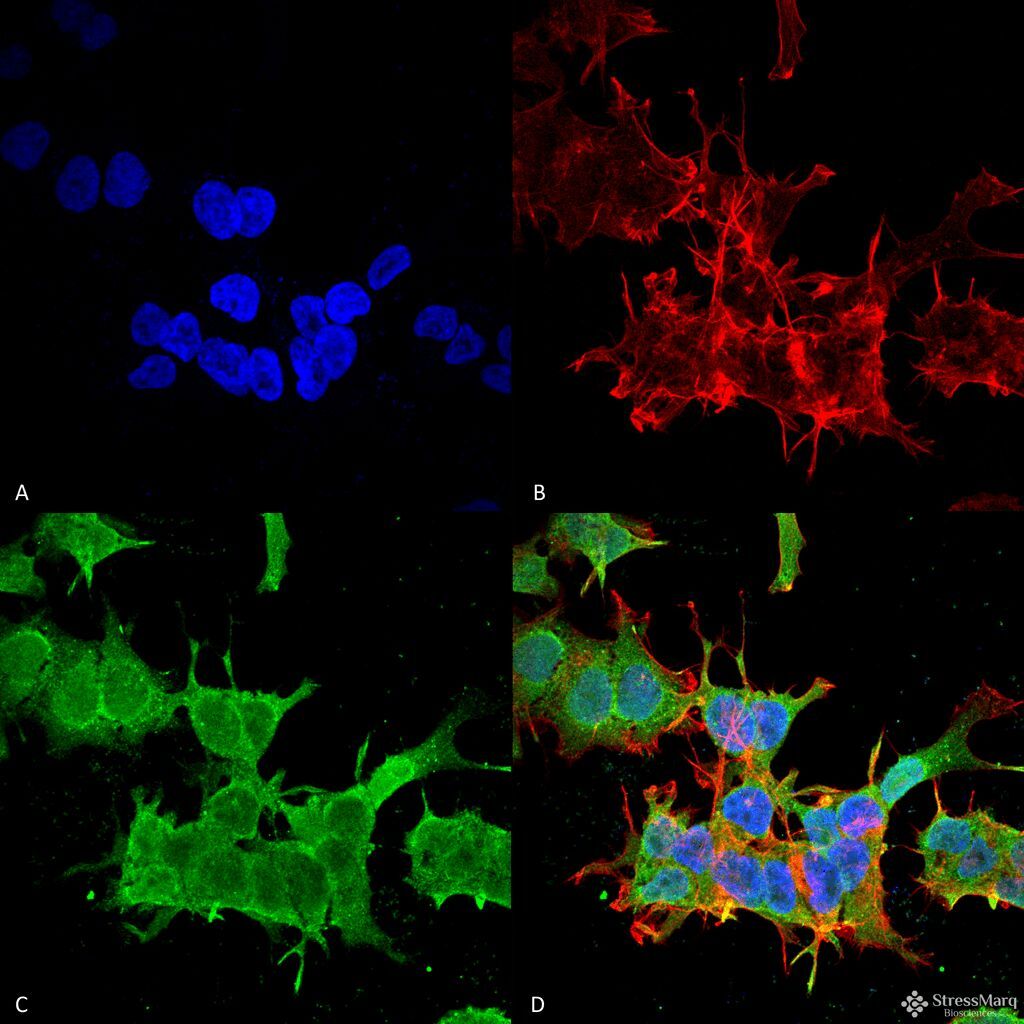

Immunocytochemistry/Immunofluorescence analysis using human neuroblastoma cells. Fixation involved 4% Formaldehyde for 15 min at RT. Samples were incubated with beta 4 Spectrin monoclonal antibody (Product # MA5-45721) at 1:100 for 60 min at RT, followed by Goat Anti-Mouse ATTO 488 at 1:100 for 60 min at RT. Counterstain used was Phalloidin Texas Red F-Actin stain; DAPI (blue) nuclear stain at 1:1,000; 1:5,000 for 60 min RT, 5 min RT. Localization: Cytoplasm. Magnification: 60X. (A) DAPI (blue) nuclear stain. (B) Phalloidin Texas Red F-Actin stain. (C) beta 4 Spectrin antibody. (D) Composite.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

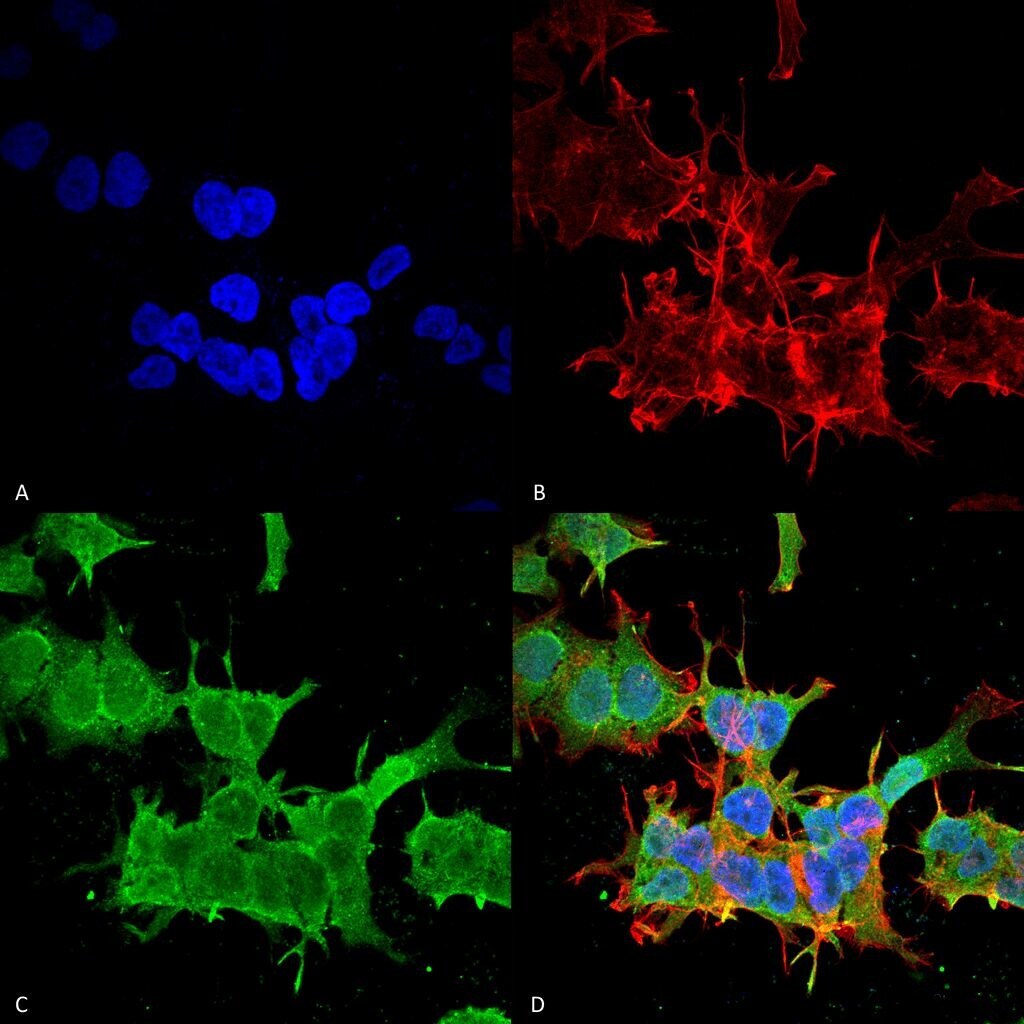

Immunocytochemistry/Immunofluorescence analysis using human neuroblastoma cells. Fixation involved 4% Formaldehyde for 15 min at RT. Samples were incubated with beta 4 Spectrin monoclonal antibody (Product # MA5-45721) at 1:100 for 60 min at RT, followed by Goat Anti-Mouse ATTO 488 at 1:100 for 60 min at RT. Counterstain used was Phalloidin Texas Red F-Actin stain; DAPI (blue) nuclear stain at 1:1,000; 1:5,000 for 60 min RT, 5 min RT. Localization: Cytoplasm. Magnification: 60X. (A) DAPI (blue) nuclear stain. (B) Phalloidin Texas Red F-Actin stain. (C) beta 4 Spectrin antibody. (D) Composite.
