MA5-45518

antibody from Invitrogen Antibodies

Targeting: ATP7A MNK

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunoprecipitation (Recommended by provider)

Immunohistochemistry (Recommended by provider)

Antibody Data

Product number

MA5-45518

Provider

Invitrogen Antibodies

Product name

ATP7A Monoclonal Antibody (L60/4), APC

Antibody type

Monoclonal

Antigen

Synthetic peptide

Description

1 µg/mL of MA5-45518 was sufficient for detection of Copper-transporting ATPase1 in 20 µg of rat brain lysate by colorimetric immunoblot analysis using Goat IgG:HRP as the secondary antibody.|Detects approximately 180kDa in rat brain membrane preparations. This antibody was formerly sold as clone S60-4.

Reactivity

Human, Mouse, Rat

Host

Mouse

Isotype

IgG

Antibody clone number

L60/4

Vial size

100 µg

Concentration

1 mg/mL

Storage

4° C

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

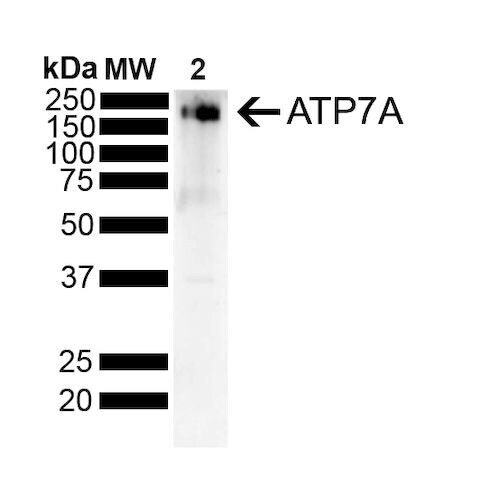

Western Blot analysis of Rat Liver showing detection of ~180 kDa Copper Transporting ATPase 1 protein. Lane 1: MW Ladder. Lane 2: Rat Liver. Load: 10 µg. Blocking: 5% Skim Milk powder in TBST. Samples were incubated with Copper Transporting ATPase 1 monoclonal antibody (Product # MA5-45518) at 1:500 for 2 hours at RT with shaking, followed by Goat anti-mouse IgG:HRP at 1:4,000 for 1 hour at RT with shaking. Color Development: Chemiluminescent for HRP (Moss) for 5 min in RT. Predicted/Observed Size: ~180 kDa.

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

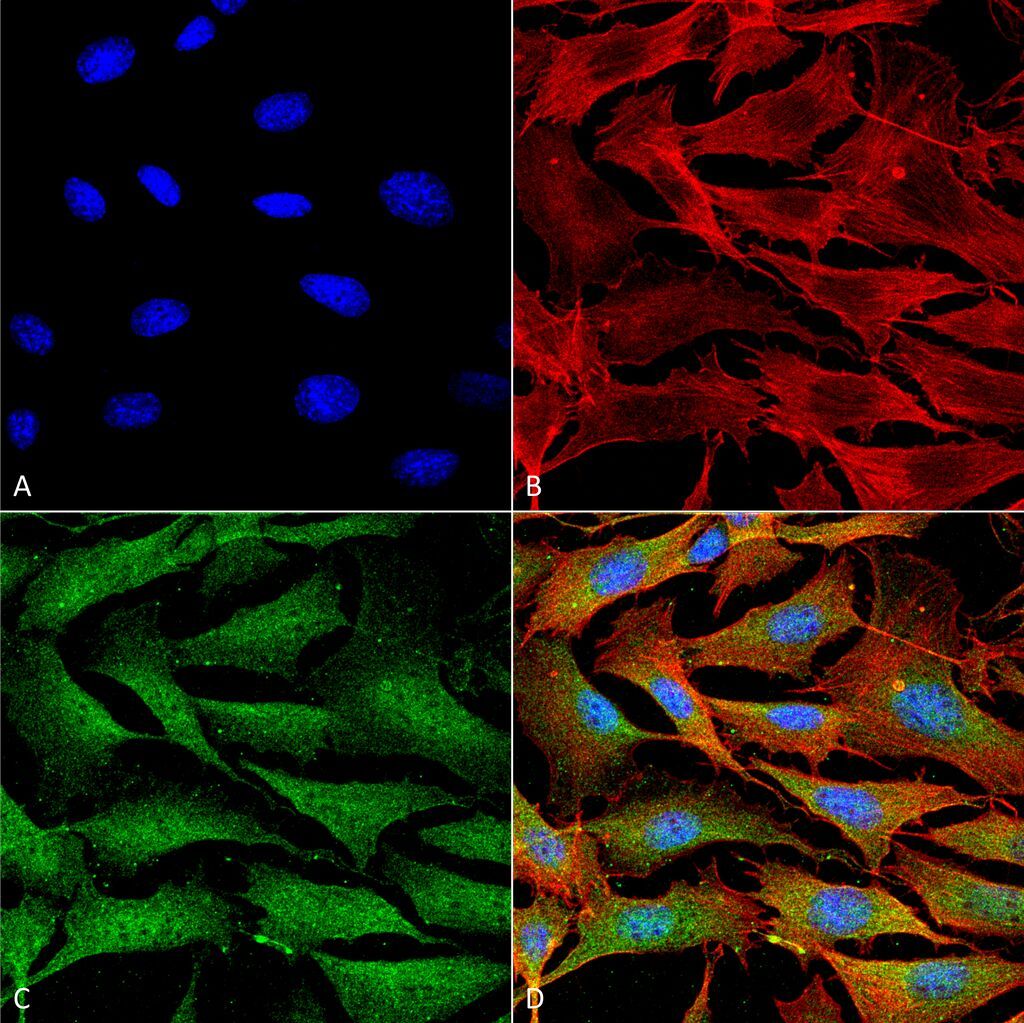

Immunocytochemistry/Immunofluorescence analysis using NIH 3T3 (NIH 3T3). Fixation involved 4% Formaldehyde for 15 min at RT. Samples were incubated with Copper Transporting ATPase 1 monoclonal antibody (Product # MA5-45518) at 1:100 for 60 min at RT, followed by Goat Anti-Mouse ATTO 488 at 1:200 for 60 min at RT. Counterstain used was Phalloidin Texas Red F-Actin stain; DAPI (blue) nuclear stain at 1:1,000, 1:5,000 for 60 min at RT, 5 min at RT. Localization: Endoplasmic Reticulum, Cytoplasm, Golgi Apparatus, Trans-Golgi Network Membrane, Cell Membrane. Magnification: 60X. (A) DAPI (blue) nuclear stain. (B) Phalloidin Texas Red F-Actin stain. (C) Copper Transporting ATPase 1 antibody. (D) Composite.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

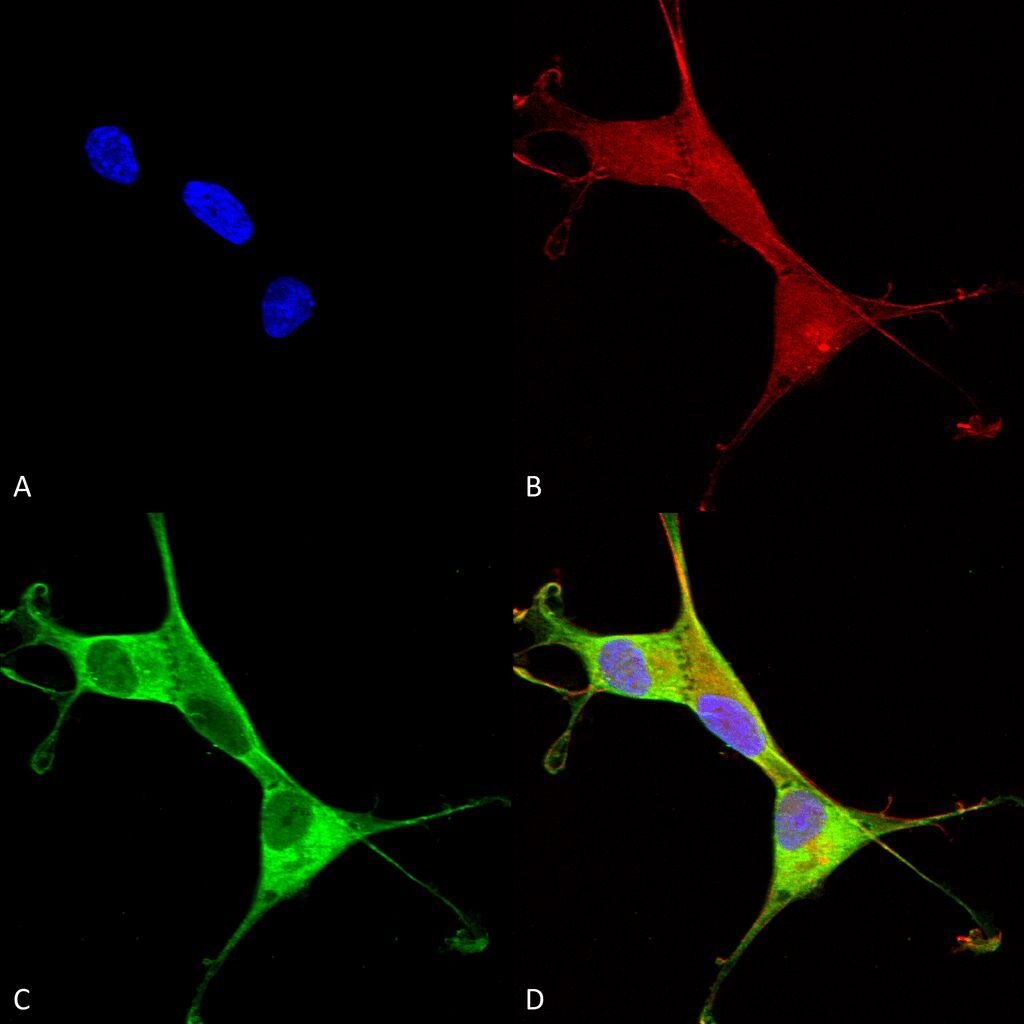

Immunocytochemistry/Immunofluorescence analysis using human neuroblastoma cells. Fixation involved 4% PFA for 15 min. Samples were incubated with Copper Transporting ATPase 1 monoclonal antibody (Product # MA5-45518) at 1:100 for overnight at 4°C with slow rocking, followed by AlexaFluor 488 at 1:1,000 for 1 hour at RT. Counterstain used was Phalloidin-iFluor 647 (red) F-Actin stain; Hoechst (blue) nuclear stain at 1:800, 1.6mM for 20 min at RT. (A) Hoechst (blue) nuclear stain. (B) Phalloidin-iFluor 647 (red) F-Actin stain. (C) Copper Transporting ATPase 1 antibody (D) Composite.
