14-1029-82

antibody from Invitrogen Antibodies

Targeting: ICAM2 CD102

Western blot (Recommended by provider)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunoprecipitation (Recommended by provider)

Immunohistochemistry (Recommended by provider)

Flow cytometry (Supportive data in Antibodypedia)

Other assay (Recommended by provider)

Antibody Data

Product number

14-1029-82

Provider

Invitrogen Antibodies

Product name

CD102 (ICAM-2) Monoclonal Antibody (CBR-IC2/2), eBioscience™

Antibody type

Monoclonal

Antigen

Other

Description

Description: The CBRIC2/2 monoclonal antibody reacts with human ICAM-2 (CD102). ICAM-2 is a 55-65 kD transmembrane glycoprotein possessing 2 extracellular Ig domains, a single transmembrane domain, and a short 26-amino acid cytoplasmic domain. ICAM-2 is expressed on most leukocytes, and is strongly expressed on vascular endothelial cells. ICAM-2 is a ligand of integrin CD11a/CD18 (LFA-1), and also has been reported to bind integrin CD11b/CD18 (Mac-1). ICAM-2 is an intercellular adhesion molecule involved in lymphocyte homing to sites of inflammation. The CBRIC2/2 antibody has been reported to have blocking activity. Applications Reported: This CBRIC2/2 antibody has been reported for use in flow cytometric analysis, immunoblotting, immunoprecipitation, immunohistochemical staining, and functional assays. Applications Tested: This CBRIC2/2 antibody has been tested by flow cytometric analysis of human peripheral blood cells. This can be used at less than or equal to 0.125 µg per test. A test is defined as the amount (µg) of antibody that will stain a cell sample in a final volume of 100 µL. Cell number should be determined empirically but can range from 10^5 to 10^8 cells/test. The CBRIC2/2 antibody has also been found useful for immunoblotting of a human peripheral blood cell lysate, recognizing a protein of approximately 55 kD under non-reducing conditions. It is recommended that the antibody be carefully titrated for optimal performance in the assay of interest. Purity: Greater than 90%, as determined by SDS-PAGE. Aggregation: Less than 10%, as determined by HPLC. Filtration: 0.2 µm post-manufacturing filtered.

Reactivity

Human

Host

Mouse

Isotype

IgG

Antibody clone number

CBR-IC2/2

Vial size

100 µg

Concentration

0.5 mg/mL

Storage

4° C

References

Submitted references

ICAM-1 and ICAM-2 Are Differentially Expressed and Up-Regulated on Inflamed Pulmonary Epithelium, but Neither ICAM-2 nor LFA-1: ICAM-1 Are Required for Neutrophil Migration Into the Airways In Vivo.

Chong DLW, Rebeyrol C, José RJ, Williams AE, Brown JS, Scotton CJ, Porter JC
Frontiers in immunology 2021;12:691957

---

Identification of endothelial cell junctional proteins and lymphocyte receptors involved in transendothelial migration of human effector memory CD4+ T cells.

Manes TD, Pober JS
Journal of immunology (Baltimore, Md. : 1950) 2011 Feb 1;186(3):1763-8

---

A functional integrin ligand on the surface of platelets: intercellular adhesion molecule-2.

Diacovo TG, deFougerolles AR, Bainton DF, Springer TA
The Journal of clinical investigation 1994 Sep;94(3):1243-51

---

Intercellular adhesion molecules (ICAM)-1 ICAM-2 and ICAM-3 function as counter-receptors for lymphocyte function-associated molecule 1 in human immunodeficiency virus-mediated syncytia formation.

Butini L, De Fougerolles AR, Vaccarezza M, Graziosi C, Cohen DI, Montroni M, Springer TA, Pantaleo G, Fauci AS
European journal of immunology 1994 Sep;24(9):2191-5

---

Characterization of ICAM-2 and evidence for a third counter-receptor for LFA-1.

de Fougerolles AR, Stacker SA, Schwarting R, Springer TA
The Journal of experimental medicine 1991 Jul 1;174(1):253-67

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

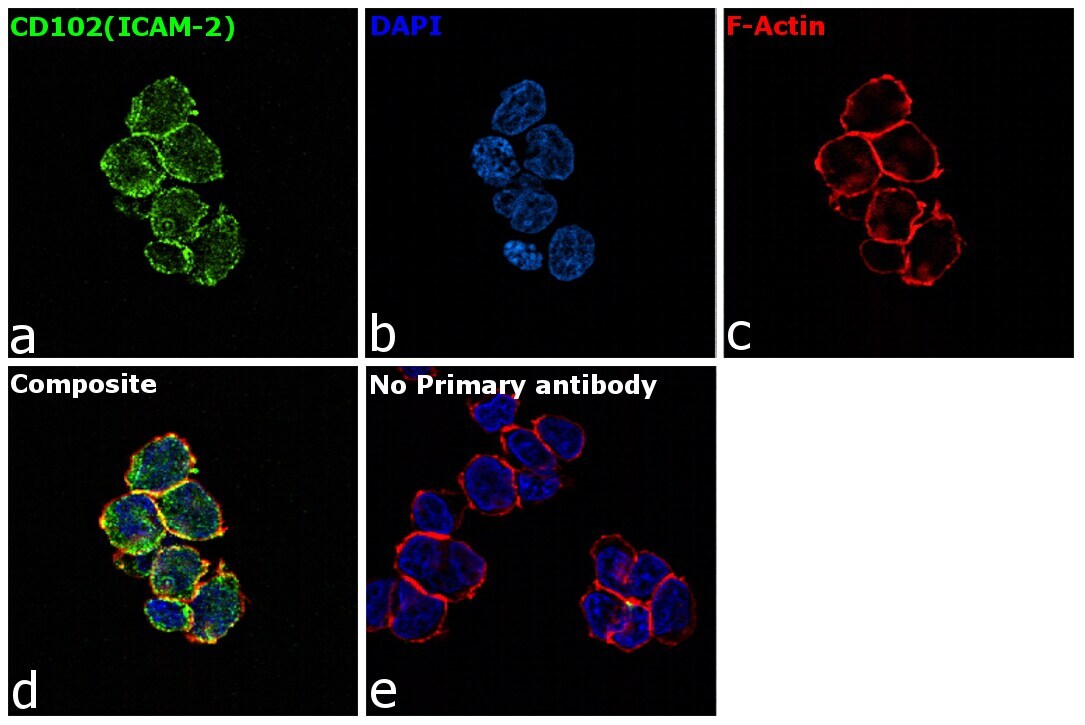

Immunofluorescence analysis of CD102 (ICAM-2) was performed using log phase Jurkat cells. The cells were fixed with 4% paraformaldehyde for 10 minutes, permeabilized with 0.1% Triton™ X-100 for 15 minutes, and blocked with 2% BSA for 1 hour at room temperature. The cells were labeled with CD102 (ICAM-2) Mouse Monoclonal Antibody (CBR-IC2/2) (Product # 14-1029-82) at 5 µg/mL in 0.1% BSA, incubated at 4 degree Celsius overnight and then with Goat anti-Mouse IgG (H+L) Superclonal™ Recombinant Secondary Antibody, Alexa Fluor® 488 conjugate (Product # A28175) at a dilution of 1:2000 for 45 minutes at room temperature (Panel a: green). Nuclei (Panel b: blue) were stained with ProLong™ Diamond Antifade Mountant with DAPI (Product # P36962). F-actin (Panel c: red) was stained with Rhodamine Phalloidin (Product # R415, 1:300). Panel d represents the merged image showing membrane localization. Panel e represents control cells with no primary antibody to assess background. The images were captured at 60X magnification.

Flow cytometry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

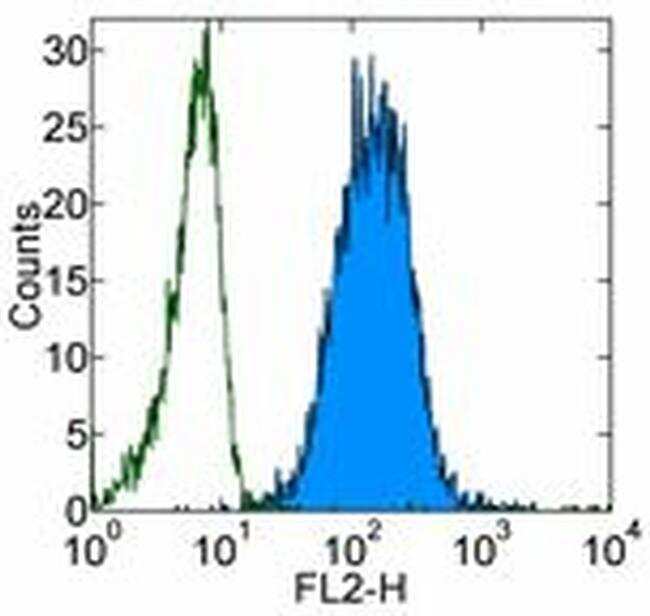

Staining of normal human peripheral blood cells with 0.06 µg of Mouse IgG2a kappa Isotype Control Purified (Product # 14-4724-82) (open histogram) or 0.06 µg of Anti-Human CD102 (ICAM-2) Purified (filled histogram) followed by F (ab')2 Anti-Mouse IgG PE (Product # 12-4012). Cells in the monocyte gate were used for analysis.
