UM800088CF

antibody from Invitrogen Antibodies

Targeting: NKX3-1 BAPX2, NKX3.1, NKX3A

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunohistochemistry (Supportive data in Antibodypedia)

Chromatin Immunoprecipitation (Recommended by provider)

Other assay (Supportive data in Antibodypedia)

Antibody Data

Product number

UM800088CF

Provider

Invitrogen Antibodies

Product name

Nkx3.1 Monoclonal Antibody (UMAB196), UltraMAB™

Antibody type

Monoclonal

Antigen

Recombinant full-length protein

Reactivity

Human

Host

Mouse

Isotype

IgG

Antibody clone number

UMAB196

Vial size

100 µg

Concentration

1 mg/mL

Storage

-20° C, Avoid Freeze/Thaw Cycles

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

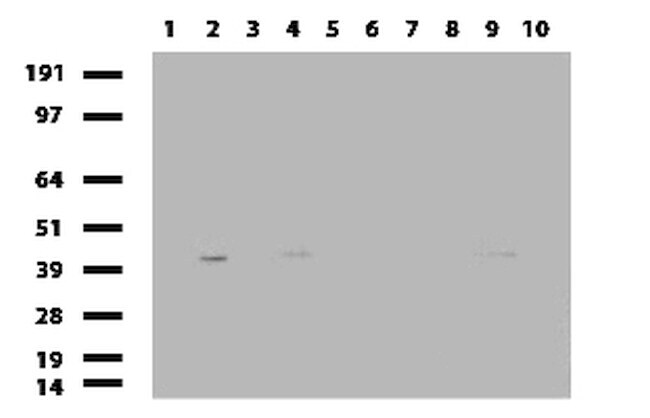

Western blot of human tissue lysates (15 µg) from 10 different tissues (1: Testis, 2: Omentum, 3: Uterus, 4: Breast, 5: Brain, 6: Liver, 7: Ovary, 8: Thyroid, 9: Colon, 10: Spleen). Dilution: 1:500.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Western blot analysis of extracts (25 µg) from 4 different cell lines by using anti-NKX3-1 monoclonal antibody. (1:500) (1: HEK293; 2: Hela; 3: MCF7; 4: HepG2) Dilution: 1:500

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

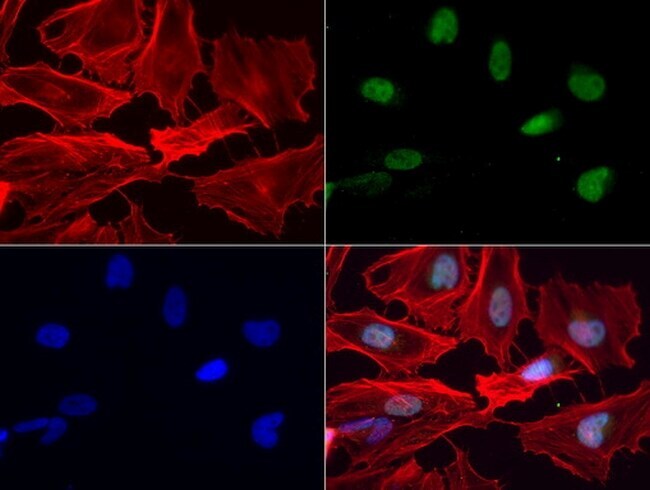

Immunofluorescent staining of HeLa cells using anti-NKX3-1 mouse monoclonal antibody (UM800088, green, 1:100). Actin filaments were labeled with Alexa Fluor 594 Phalloidin (red), and nuclear with DAPI (blue).

Immunohistochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

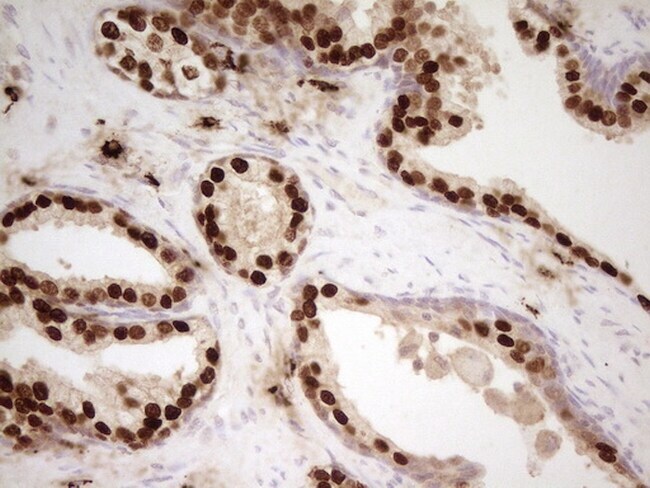

Immunohistochemical staining of paraffin-embedded human prostate tissue using anti-NKX3-1 mouse monoclonal antibody. (Heat-induced epitope retrieval by 1mM EDTA in 10mM Tris buffer (pH8.0) at 120°C for 3 min, UM800088)(1:200)

Other assay

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

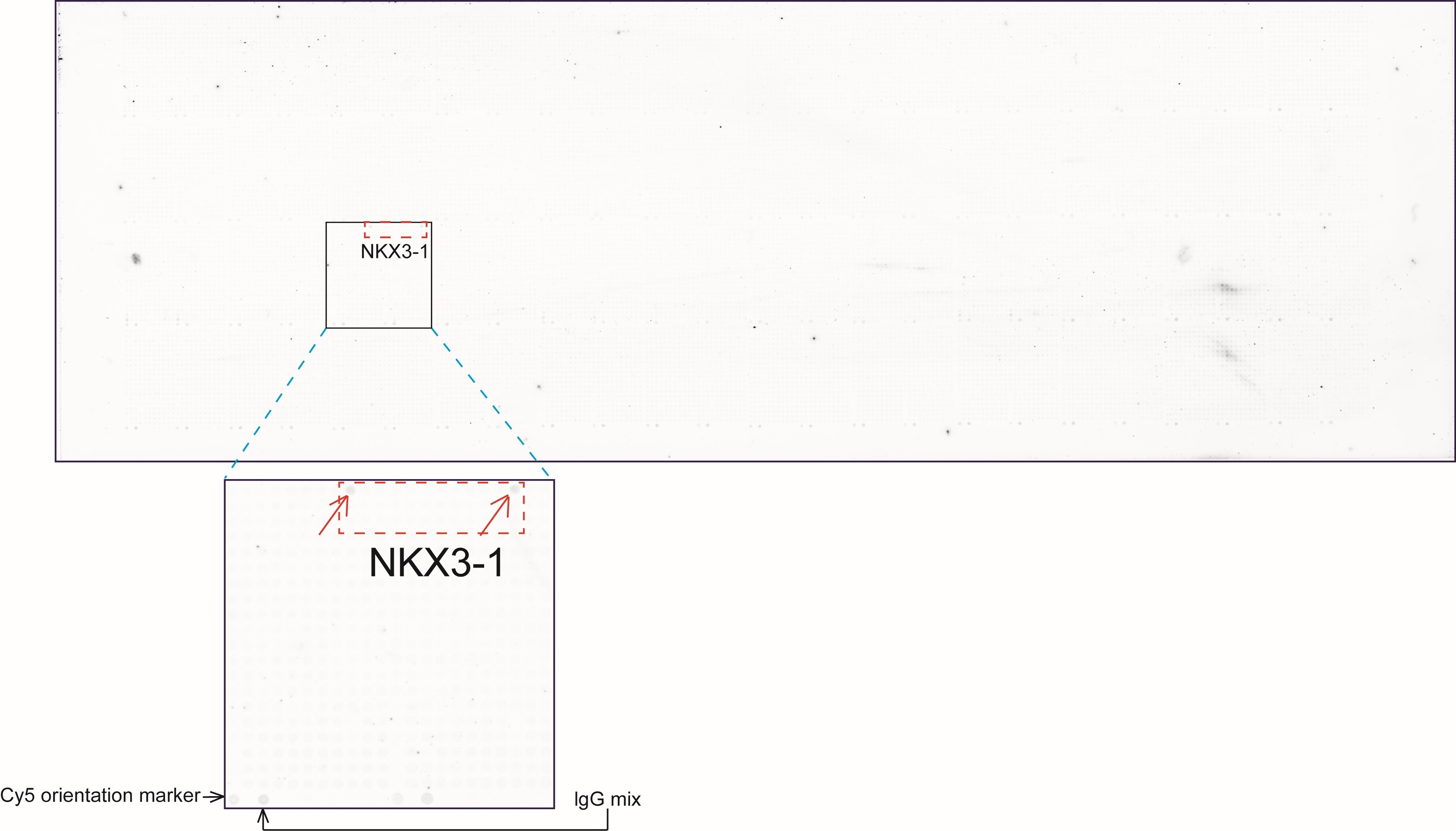

OriGene overexpression protein microarray chip was immunostained with UltraMAB anti-NKX3-1 mouse monoclonal antibody (UM800088). The positive reactive proteins are highlighted with two red arrows in the enlarged subarray. All the positive controls spotted in this subarray are also labeled for clarification. (1:100)
