MA5-16164

antibody from Invitrogen Antibodies

Targeting: TNFAIP3 A20, OTUD7C

Western blot (Data presented on provider website)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunoprecipitation (Recommended by provider)

Immunohistochemistry (Data presented on provider website)

Flow cytometry (Supportive data in Antibodypedia)

Antibody Data

Product number

MA5-16164

Provider

Invitrogen Antibodies

Product name

TNFAIP3 Monoclonal Antibody (59A426)

Antibody type

Monoclonal

Antigen

Recombinant full-length protein

Reactivity

Human, Mouse, Rat

Host

Mouse

Isotype

IgG

Antibody clone number

59A426

Vial size

100 µg

Concentration

1.0 mg/mL

Storage

-20° C, Avoid Freeze/Thaw Cycles

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

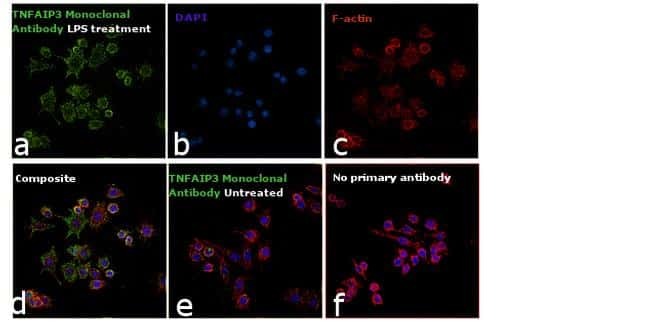

Immunofluorescence analysis of TNFAIP3 was performed using 70% confluent log phase RAW 264.7 cells treated with 1 µg/mL of LPS for 6 hr. The cells were fixed with 4% paraformaldehyde for 10 minutes, permeabilized with 0.1% Triton™ X-100 for 15 minutes, and blocked with 1% BSA for 1 hour at room temperature. The cells were labeled with TNFAIP3 Mouse Monoclonal Antibody (Product # MA5-16164) at 1:200 dilution in 0.1% BSA, incubated at 4 degree Celsius overnight and then labeled with Goat anti-Mouse IgG (H+L) Superclonal™ Secondary Antibody, Alexa Fluor® 488 conjugate (Product # A28175) at a dilution of 1:2000 for 45 minutes at room temperature (Panel a: green).Nuclei (Panel b: blue) were stained with ProLong™ Diamond Antifade Mountant with DAPI (Product # P36962). F-actin (Panel c: red) was stained with Rhodamine Phalloidin (Product # R415, 1:300). Panel d represents the merged image showing cytosolic localization. Panel e shows untreated cells with less cytosolic signal. Panel f represents control cells with no primary antibody to assess background. The images were captured at 60X magnification.

Flow cytometry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Flow cytometric analysis of A20 in ThP-1 cells using a A20/TNFAIP3 monoclonal antibody (Product # MA5-16164) (red) and an isotype control (green) at 0.5 µg/mL.
