720003

antibody from Invitrogen Antibodies

Targeting: LNX1 LNX, MPDZ, PDZRN2

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Flow cytometry (Supportive data in Antibodypedia)

Antibody Data

Product number

720003

Provider

Invitrogen Antibodies

Product name

LNX1 Polyclonal Antibody

Antibody type

Polyclonal

Antigen

Synthetic peptide

Description

This antibody is predicted to react with Monkey, Rat, Mouse and Goat.

Reactivity

Human, Mouse, Rat

Host

Rabbit

Isotype

IgG

Vial size

100 µg

Concentration

0.5 mg/mL

Storage

Store at 4°C short term. For long term storage, store at -20°C, avoiding freeze/thaw cycles.

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Western blot analysis was performed on whole cell extracts (30 µg lysate) of U-87 MG (lane 1), COLO 205 (lane 2), Rat Kidney (lane 3), Mouse Kidney (lane 4) and NIH/3T3 (lane 5). The blots were probed with Anti-Lnx1Rabbit Polyclonal Antibody (Product # 720003, 2-3 µg/mL) and detected by chemiluminescence using Goat anti-Rabbit IgG (H+L) Superclonal Secondary Antibody, HRP conjugate (Product # A27036, 0.4 µg/mL, 1:2500 dilution). A 70 kDa band corresponding to Lnx1 was observed across cell lines tested. Known quantity of protein samples were electrophoresed using Novex®NuPAGE®4-12% Bis-Tris gel (Product # NP0321BOX), XCell SureLock Electrophoresis System (Product # EI0002), and Novex® Sharp Pre-Stained Protein Standard (Product # LC5800). Resolved proteins were then transferred onto a nitrocellulose membrane with iBlot® Dry Blotting System (Product # IB21001). The membrane was probed with the relevant primary and secondary antibody following blocking with 5% skimmed milk. Chemiluminescent detection was performed using Pierce™ ECL Western Blotting Substrate (Product # 32106).

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescence was performed on fixed and permeabilized HCT 116 cells for detection of Lnx1 using Anti-Lnx1 Rabbit Polyclonal Antibody (Product # 720003, 3-4 µg/mL) and labeled with Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, Alexa Fluor® 488 conjugate (Product # A27034, 0.4 µg/mL, 1:2500). Panel a) shows representative cells that were stained for detection and localization of Lnx1 protein (green), Panel b) is stained for nuclei (blue) using SlowFade® Gold Antifade Mountant with DAPI (Product # S36938, 1:50). Panel c) represents cytoskeletal F-actin staining using Alexa Fluor® 594 Phalloidin (Product # A12381, 1:200). Panel d) is a composite image of Panels a, b and c clearly demonstrating cytoplasmic localization of Lnx1. Panel e) represents control cells with no primary antibody to assess background.

Flow cytometry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

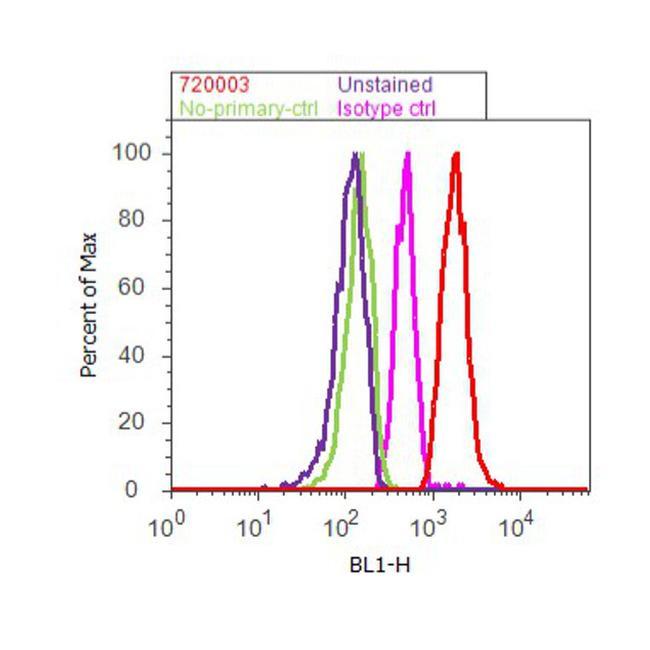

Flow Cytometry analysis of Lnx-1 was performed on HEK-293 cells labeled with Anti-Lnx1 Rabbit Polyclonal Antibody (Product# 720003, 2-4 ug/ 1M cells) or with rabbit isotype control and detected with Goat Anti-Rabbit IgG (H+L) Superclonalª Secondary Antibody, Alexa Fluor¨ 488 conjugate ( Product # A27034, 0.4 ug/ml, 1:2500) as represented by the red and pink histograms respectively. The purple histogram represents unstained control cells and the green histogram represents no-primary-antibody control. A representative 10,000 cells were acquired and analyzed for each sample using an Attune¨ Acoustic Focusing Cytometer (4468770).
