MA5-29412

antibody from Invitrogen Antibodies

Targeting: MAX bHLHd4, bHLHd5, bHLHd6, bHLHd7, bHLHd8

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Flow cytometry (Supportive data in Antibodypedia)

Other assay (Supportive data in Antibodypedia)

Antibody Data

Product number

MA5-29412

Provider

Invitrogen Antibodies

Product name

MAX Recombinant Rabbit Monoclonal Antibody (103)

Antibody type

Monoclonal

Antigen

Recombinant full-length protein

Description

This product is preservative free. It is recommended to add sodium azide to avoid contamination (final concentration 0.05%-0.1%).

Antibody clone number

103

Concentration

1 mg/mL

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Western blot analysis of MAX in Lane A: Jurkat Whole Cell Lysate (30 µg), Lane B: 293T Whole Cell Lysate (30 µg) . Samples were probed using a MAX Monoclonal Antibody (Product # MA5-29412) at a 1:500 dilution, followed by a Goat Anti-Rabbit IgG (H+L), Dylight 800 Secondary Antibody at a 1:10000 dilution. Western blot was performed under reducing conditions. Predicted band size:18 kDa. Observed band size:20 kDa.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Western Blot using MAX Recombinant Rabbit Monoclonal Antibody (103) (Product # MA5-29412) at 1:500 dilution. Lane A: Jurkat Whole Cell Lysate, Lane B: 293T Whole Cell Lysate. Lysates/proteins at 30 μg per lane. Secondary Goat Anti-Rabbit IgG H&L (DyLight™ 800) at 1:10,000 dilution. Developed using the Odyssey technique. Performed under reducing conditions. Predicted band size: 18 kDa. Observed band size: 20 kDa. (We are unsure of the identity of these extra bands).

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescence staining of Human MAX in Hela cells. Cells were fixed with 4% PFA, permeabilzed with 0.3% Triton X-100 in PBS, blocked with 10% serum, and incubated with MAX Recombinant Rabbit Monoclonal Antibody (103) (Product # MA5-29412, 1:300) at 37°C 1 hour. Then cells were stained with the Alexa Fluor® 594-conjugated goat Anti-rabbit IgG secondary antibody (red). Positive staining was localized to nucleus.

Flow cytometry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

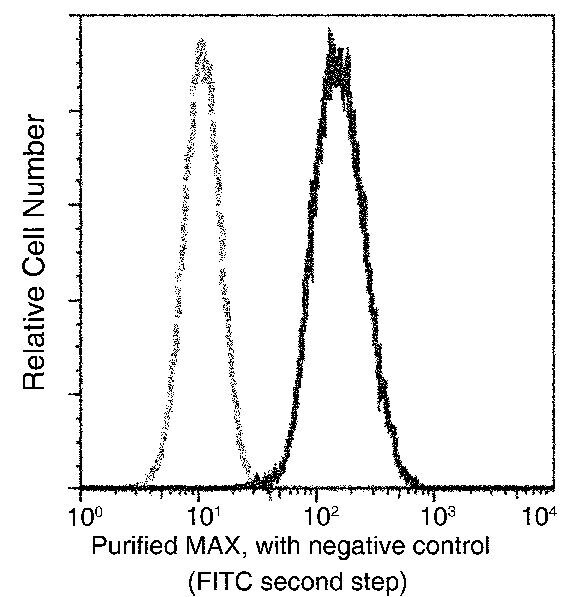

Flow cytometric analysis of Human MAX expression on Raji cells. The cells were treated according to manufacturer’s manual, stained with MAX Recombinant Rabbit Monoclonal Antibody (103) (Product # MA5-29412), then a FITC-conjugated Secondary antibody. The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of intact cells.

Other assay

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

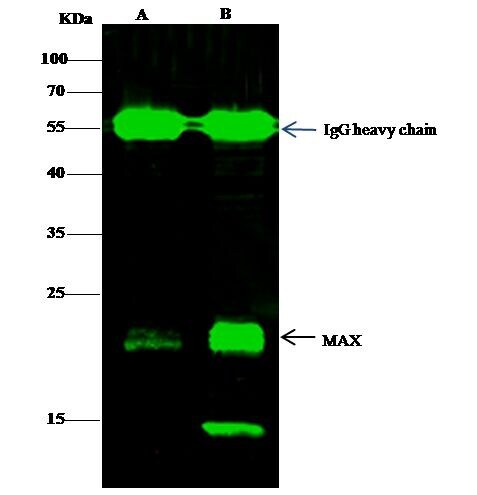

MAX Immunoprecipitation using: Lane A: 0.5 mg Hela Whole Cell Lysate, Lane B: 0.5 mg 293T Whole Cell Lysate 0.5 µL with MAX Recombinant Rabbit Monoclonal Antibody (103) (Product # MA5-29412) and 15 µL of 50 % Protein G agarose. Primary antibody: MAX Recombinant Rabbit Monoclonal Antibody (103), at 1:1,000 dilution. Secondary antibody: Dylight 800-labeled antibody to rabbit IgG (H+L), at 1:5,000 dilution. Developed using the Odyssey technique. Performed under reducing conditions. Predicted band size: 23 kDa. Observed band size: 23 kDa.
