- LS-C343986 - LSBio ACE antibody

No submitted references: Submit reference

No comments: Submit comment

Enhanced validation

Submitted by: LSBio (provider)
Enhanced method: Genetic validation
Main image
Experimental details: ACE antibody Western blot. All lanes: Anti ACE at 0.5 ug/ml. WB: Recombinant Human ACE Protein 0.5ng. Predicted band size: 47 kD. Observed band size: 47 kD.

Enhanced validation

Submitted by: LSBio (provider)
Enhanced method: Genetic validation
Main image

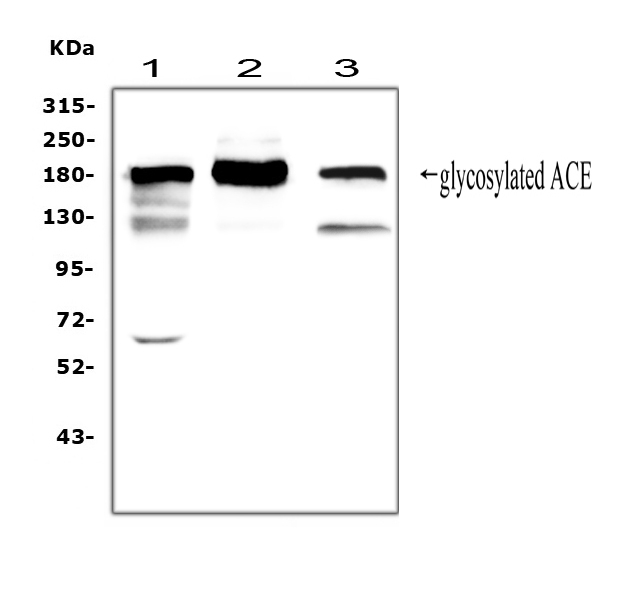

Experimental details: Western blot analysis of ACE using anti-ACE antibody. Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions. Lane 1: rat lung tissue lysates, Lane 2: mouse lung tissue lysates, Lane 3: human Raji whole cell lysates. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-ACE antigen affinity purified polyclonal antibody at 0.5 µg/mL overnight at 4°C, then washed with TBS-0.1% Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for ACE at approximately 180KD. The expected band size for ACE is at 150KD.

Supportive validation

Enhanced validation

Enhanced validation

Enhanced validation

Enhanced validation

Submitted by: LSBio (provider)
Enhanced method: Genetic validation
Main image
Experimental details: IHC analysis of ACE using anti-ACE antibody. ACE was detected in frozen section of human placenta tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1µg/ml rabbit anti-ACE Antibody overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

Enhanced validation

Submitted by: LSBio (provider)
Enhanced method: Genetic validation
Main image
Experimental details: IHC analysis of ACE using anti-ACE antibody. ACE was detected in frozen section of mouse lung tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1µg/ml rabbit anti-ACE Antibody overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

Enhanced validation

Enhanced validation

Enhanced validation

Enhanced validation

Submitted by: LSBio (provider)
Enhanced method: Genetic validation
Main image
Experimental details: IHC analysis of ACE using anti-ACE antibody. ACE was detected in frozen section of human placenta tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1µg/ml rabbit anti-ACE Antibody overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

Enhanced validation

Submitted by: LSBio (provider)
Enhanced method: Genetic validation
Main image
Experimental details: IHC analysis of ACE using anti-ACE antibody. ACE was detected in frozen section of mouse lung tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1µg/ml rabbit anti-ACE Antibody overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

Supportive validation

Supportive validation

Supportive validation

Supportive validation

Submitted by: LSBio (provider)
Enhanced method: Genetic validation
Main image
Experimental details: IHC analysis of ACE using anti-ACE antibody. ACE was detected in frozen section of human placenta tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1µg/ml rabbit anti-ACE Antibody overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

Supportive validation

Submitted by: LSBio (provider)
Enhanced method: Genetic validation
Main image
Experimental details: IHC analysis of ACE using anti-ACE antibody. ACE was detected in frozen section of mouse lung tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1µg/ml rabbit anti-ACE Antibody overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) with DAB as the chromogen.

Enhanced validation

LS-C343986
