MAB3477

antibody from R&D Systems

Targeting: CCR7 BLR2, CD197, CDw197, CMKBR7, EBI1

Immunocytochemistry (Supportive data in Antibodypedia)

Flow cytometry (Supportive data in Antibodypedia)

Blocking/Neutralizing (Supportive data in Antibodypedia)

Antibody Data

Product number

MAB3477

Provider

R&D Systems

Product name

Mouse CCR7 Antibody

Antibody type

Monoclonal

Description

Protein A or G purified from hybridoma culture supernatant. Detects mouse CCR7.

Reactivity

Mouse

Host

Rat

Conjugate

Unconjugated

Antigen sequence

NP_031745


Isotype

IgG

Antibody clone number

4B12

Vial size

100 ug

Concentration

LYOPH

Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles. 12 months from date of receipt, -20 to -70 °C as supplied. 1 month, 2 to 8 °C under sterile conditions after reconstitution. 6 months, -20 to -70 °C under sterile conditions after reconstitution.

References

Submitted references

TGF-β1-induced EMT promotes targeted migration of breast cancer cells through the lymphatic system by the activation of CCR7/CCL21-mediated chemotaxis.

Pang MF, Georgoudaki AM, Lambut L, Johansson J, Tabor V, Hagikura K, Jin Y, Jansson M, Alexander JS, Nelson CM, Jakobsson L, Betsholtz C, Sund M, Karlsson MC, Fuxe J
Oncogene 2016 Feb 11;35(6):748-60

---

FOXO1 regulates dendritic cell activity through ICAM-1 and CCR7.

Dong G, Wang Y, Xiao W, Pacios Pujado S, Xu F, Tian C, Xiao E, Choi Y, Graves DT
Journal of immunology (Baltimore, Md. : 1950) 2015 Apr 15;194(8):3745-55

---

Deficiency of lymph node-resident dendritic cells (DCs) and dysregulation of DC chemoattractants in a malnourished mouse model of Leishmania donovani infection.

Ibrahim MK, Barnes JL, Osorio EY, Anstead GM, Jimenez F, Osterholzer JJ, Travi BL, Ahuja SS, White AC Jr, Melby PC
Infection and immunity 2014 Aug;82(8):3098-112

---

CC-Chemokine receptor CCR7: a key molecule for lymph node metastasis in esophageal squamous cell carcinoma.

Irino T, Takeuchi H, Matsuda S, Saikawa Y, Kawakubo H, Wada N, Takahashi T, Nakamura R, Fukuda K, Omori T, Kitagawa Y
BMC cancer 2014 Apr 26;14:291

---

Direct B cell stimulation by dendritic cells in a mouse model of lupus.

Wan S, Zhou Z, Duan B, Morel L
Arthritis and rheumatism 2008 Jun;58(6):1741-50

Immunocytochemistry

Supportive validation

Submitted by

R&D Systems (provider)

Main image

Experimental details

CCR7 in Mouse Splenocytes. CCR7 was detected in immersion fixed non-stimulated mouse splenocytes using 25 µg/mL Rat Anti-Mouse CCR7 Monoclonal Antibody (Catalog # MAB3477) for 3 hours at room temperature. Cells were stained (red) and counterstained (green). View our protocol for Fluorescent ICC Staining of Non-adherent Cells.

Flow cytometry

Supportive validation

Submitted by

R&D Systems (provider)

Main image

Experimental details

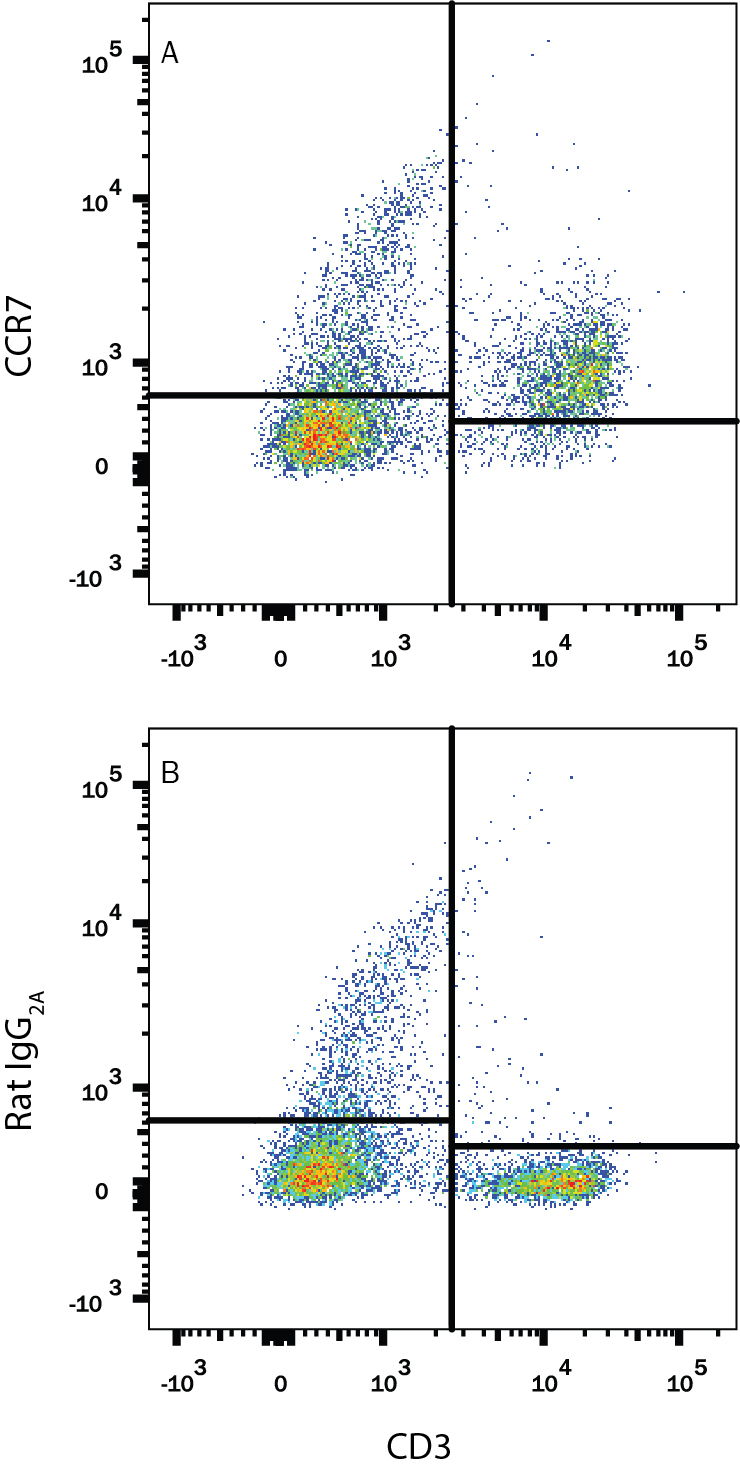

Detection of CCR7 in Mouse Splenocytes by Flow Cytometry. Mouse splenocytes were stained with Rat Anti-Mouse CD3 PE-conjugated Monoclonal Antibody (Catalog # FAB4841P) and either (A) Rat Anti-Mouse CCR7 Monoclonal Antibody (Catalog # MAB3477) or (B) Rat IgG_2A Isotype Control (Catalog # MAB006) followed by Allophycocyanin-conjugated Anti-Rat IgG Secondary Antibody (Catalog # F0113). View our protocol for Staining Membrane-associated Proteins.

Blocking/Neutralizing

Supportive validation

Submitted by

R&D Systems (provider)

Main image

Experimental details

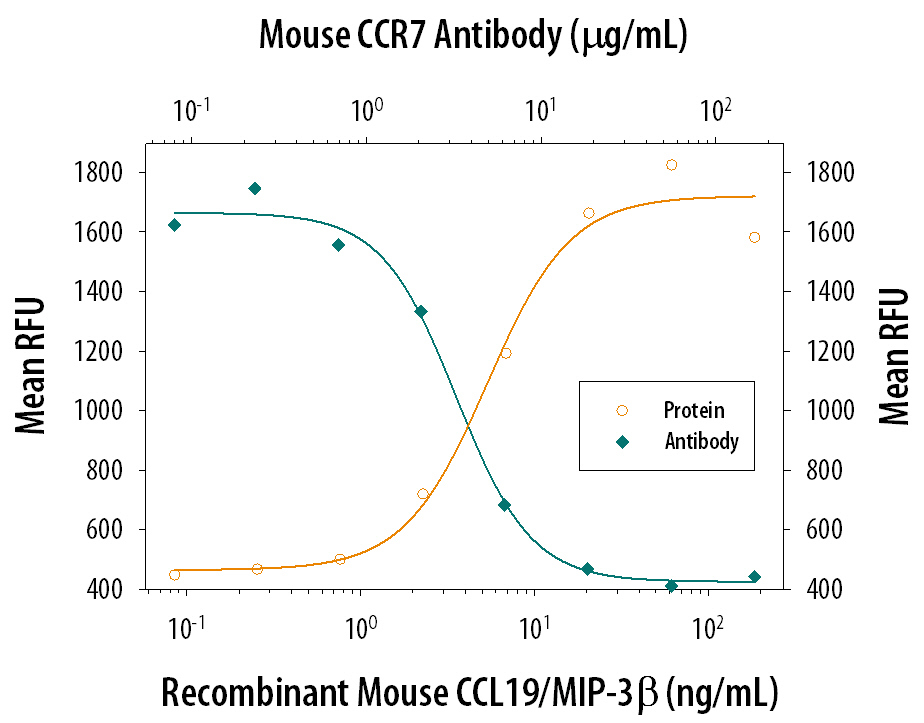

Chemotaxis Induced by CCL19/MIP-3 beta and Neutralization by Mouse CCR7 Antibody. Recombinant Mouse CCL19/MIP-3 beta (Catalog # 440-M3) chemoattracts the BaF3 mouse pro-B cell line transfected with mouse CCR7 in a dose-dependent manner (orange line). The amount of cells that migrated through to the lower chemotaxis chamber was measured by Resazurin (Catalog # AR002). Chemotaxis elicited by Recombinant Mouse CCL19/MIP-3 beta (25 ng/mL) is neutralized (green line) by increasing concentrations of Rat Anti-Mouse CCR7 Monoclonal Antibody (Catalog # MAB3477). The ND₅₀ is typically 2-10 µg/mL.
