- Product number
- TA500438 - Provider product page
- Provider
- OriGene
- Proper citation
- OriGene Cat#TA500438, RRID:AB_2054743
- Product name
- Anti-BRAF mouse monoclonal antibody, clone OTI4B2 (formerly 4B2)
- Antibody type
- Monoclonal
- Description
- Anti-BRAF mouse monoclonal antibody, clone OTI4B2 (formerly 4B2)
- Host
- Mouse
- Conjugate
- Unconjugated
- Epitope
- BRAF
- Isotype
- IgG
- Antibody clone number
- OTI4B2
- Vial size
- 100 µl
- Concentration
- 1.4 mg/ml
No comments: Submit comment
Supportive validation
- Submitted by
- OriGene (provider)
- Main image
- Experimental details
- HEK293T cells were transfected with the pCMV6-ENTRY control (Left lane) or pCMV6-ENTRY BRAF (RC211013, Right lane) cDNA for 48 hrs and lysed. Equivalent amounts of cell lysates (5 ug per lane) were separated by SDS-PAGE and immunoblotted with anti-BRAF.
- Validation comment
- WB
- Submitted by
- OriGene (provider)
- Main image
- Experimental details

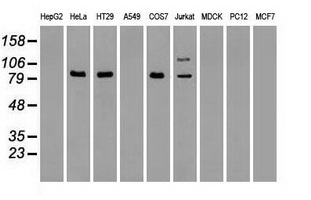

- Western blot analysis of extracts (35ug) from 9 different cell lines by using anti-anti-BRAFmonoclonal antibody.
- Validation comment
- WB
Supportive validation
- Submitted by
- OriGene (provider)
- Main image
- Experimental details
- Standard curve for ELISA analysis with BRAF recombinant protein (dilution range from 0.8ng/ml to 600ng/ml) using BRAF Capture Antibody (Cat# TA500429/TA500462) at 5ug/ml and HRP conjugated BRAF Detection mAb (Cat# TA500438) at 0.03ug/ml.
- Validation comment
- ELISA
Supportive validation
- Submitted by
- OriGene (provider)
- Main image
- Experimental details

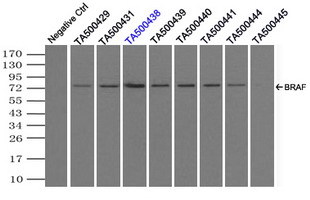

- Immunoprecipitation(IP) of BRAF by using TrueMab monoclonal anti-BRAF antibodies (Negative control: IP without adding anti-BRAF antibody.). For each experiment, 500ul of DDK tagged BRAF overexpression lysates (at 1:5 dilution with HEK293T lysate), 2ug of anti-BRAF antibody and 20ul (0.1mg) of goat anti-mouse conjugated magnetic beads were mixed and incubated overnight. After extensive wash to remove any non-specific binding, the immuno-precipitated products were analyzed with rabbit anti-DDK polyclonal antibody.
- Validation comment
- IP
